Automatic Transmission Controls Schematics



Automatic Transmission Controls Schematics

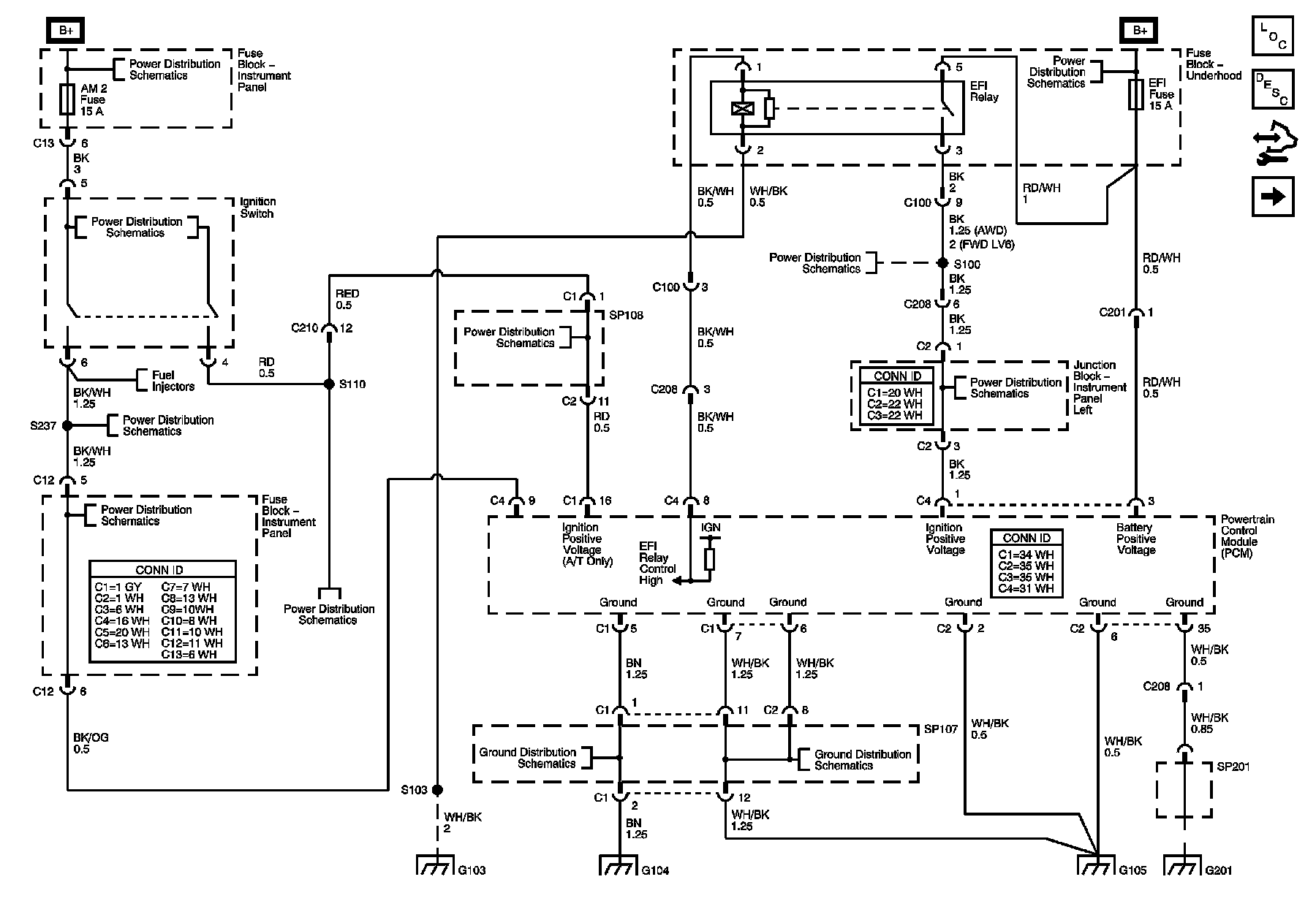

Powertrain Control Module (PCM) Power and Ground

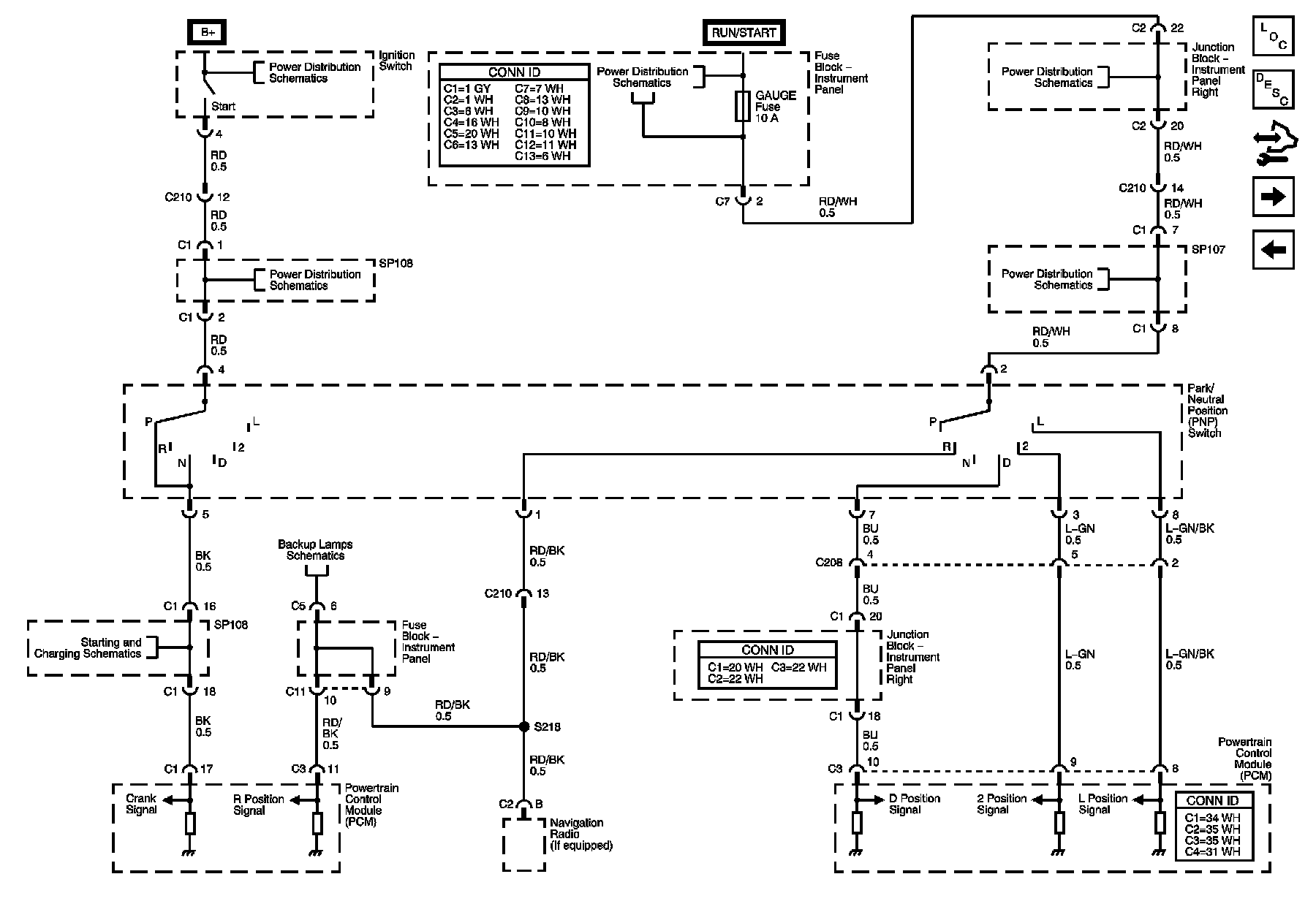

Park/Neutral Position Switch





Park/Neutral Position Switch, Brake Pressure Modulator Valve (BPMV), Multifunction Alarm Module





Automatic Transaxle Controls

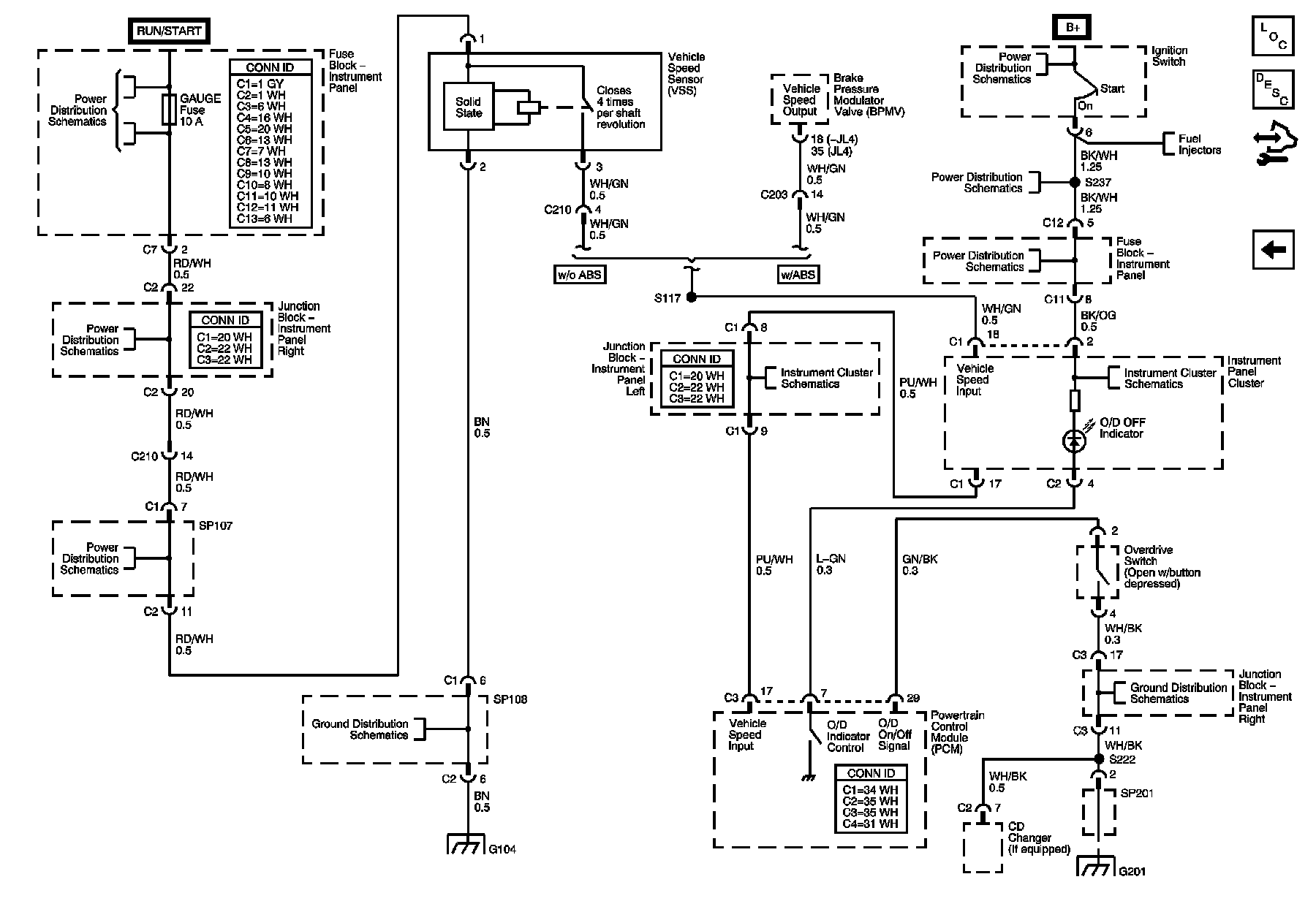

Vehicle Speed Signal and Overdrive Switch
