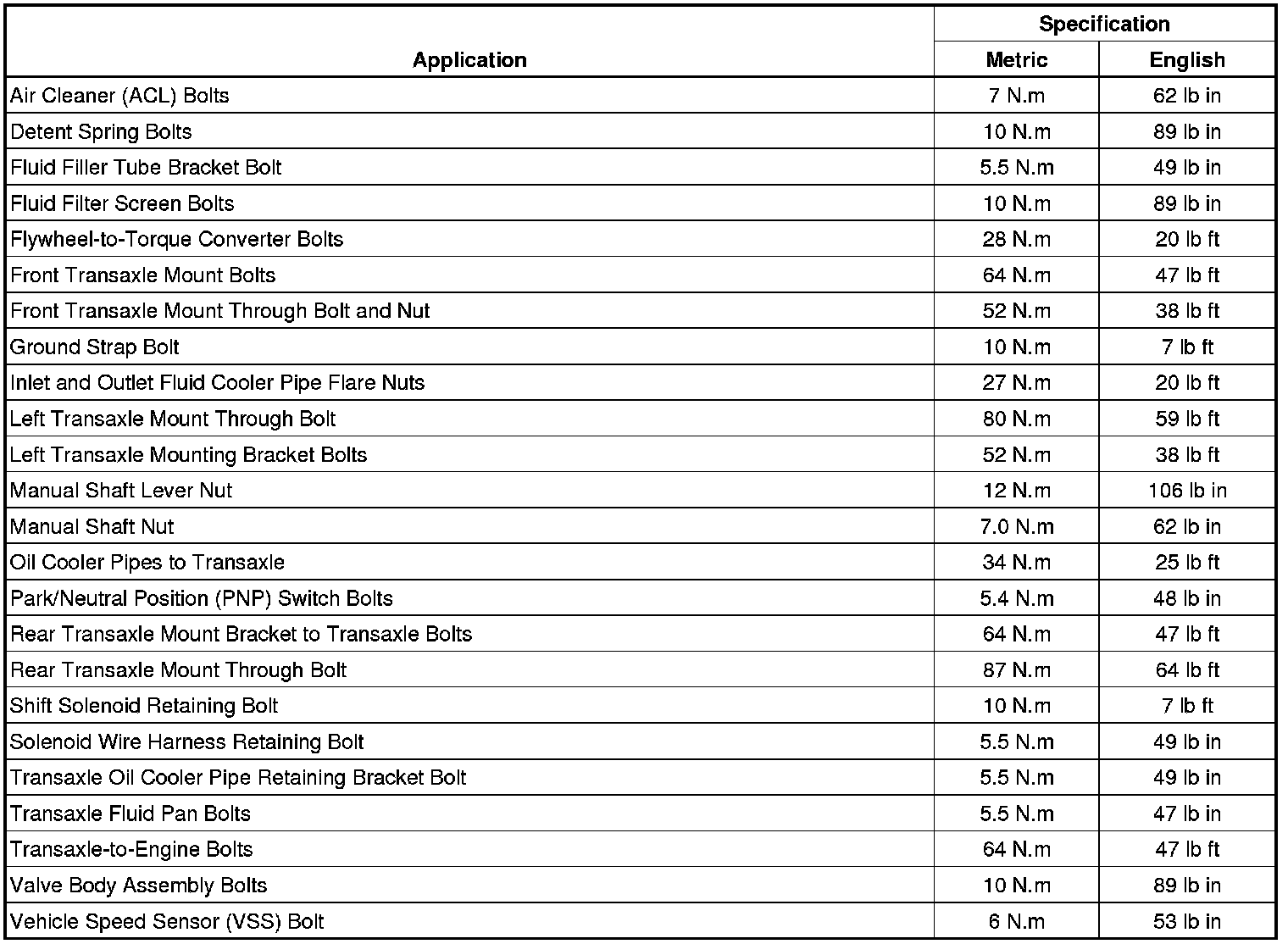

Fastener Tightening Specifications



Fastener Tightening Specifications





Flywheel Retaining Bolts
Automatic Transmission 83 Nm (61 lb ft.)
Torque Converter Bolts 35 Nm (26 lb ft.)
Transmission to Engine Mounting Bolts 64 Nm (47 lb ft.)
Transaxle fluid pan bolts 6 N.m (53 lb in)
