Brake Lamp




Component Connector End Views

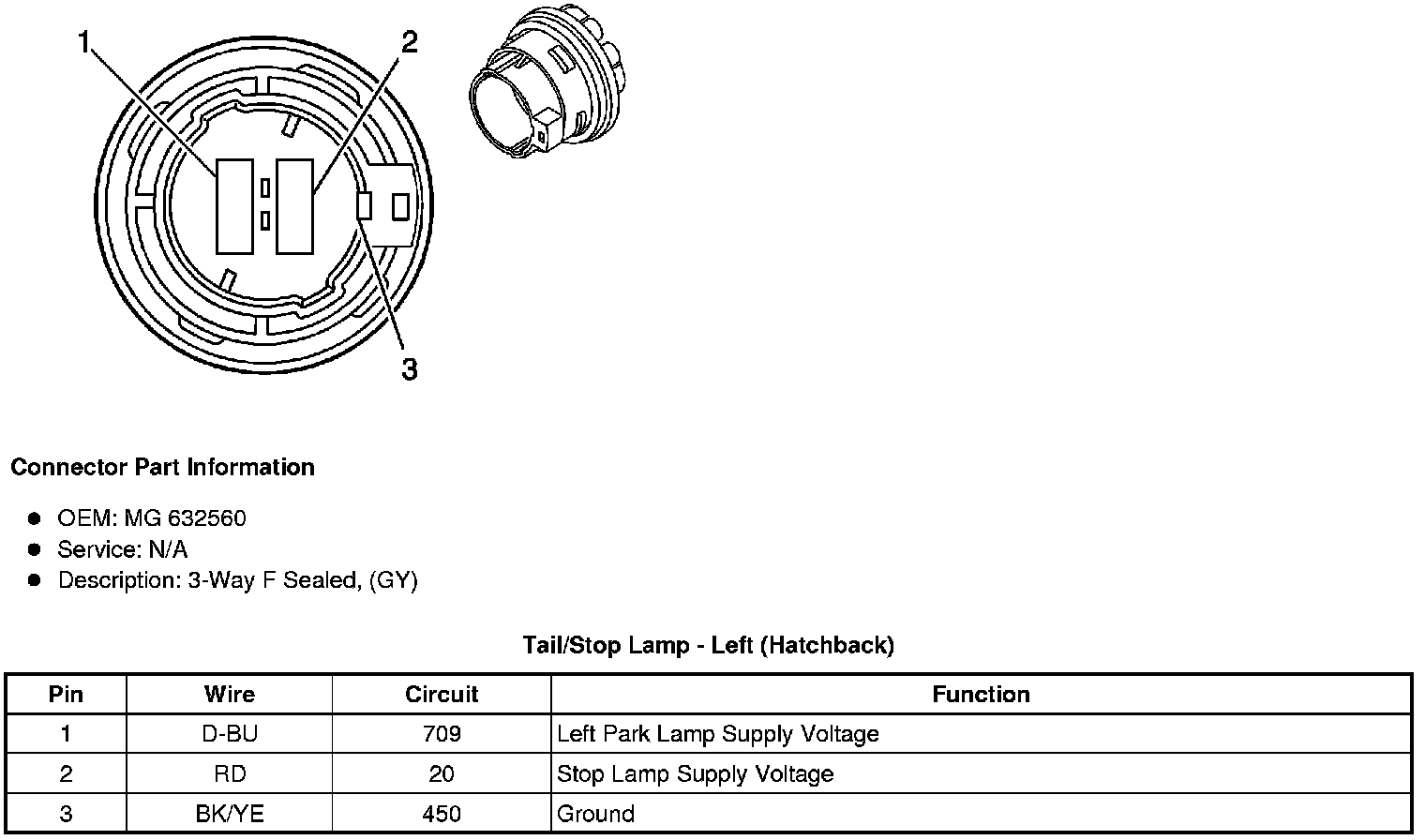

Tail/Stop Lamp - Left (Hatchback)

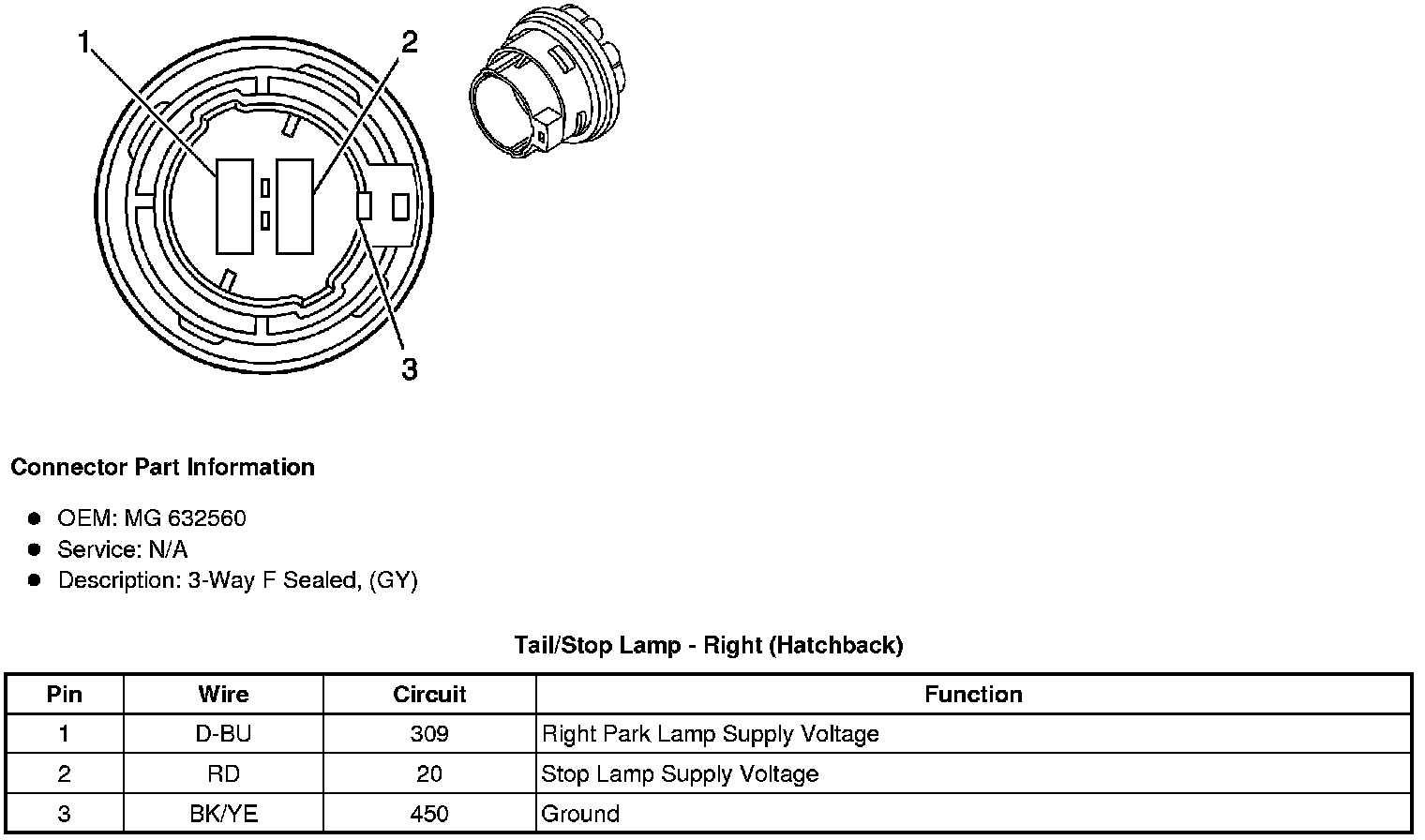

Tail/Stop Lamp - Right (Hatchback)
