Front Door Latch




Component Connector End Views

Door Latch - Driver X1 (AU3)

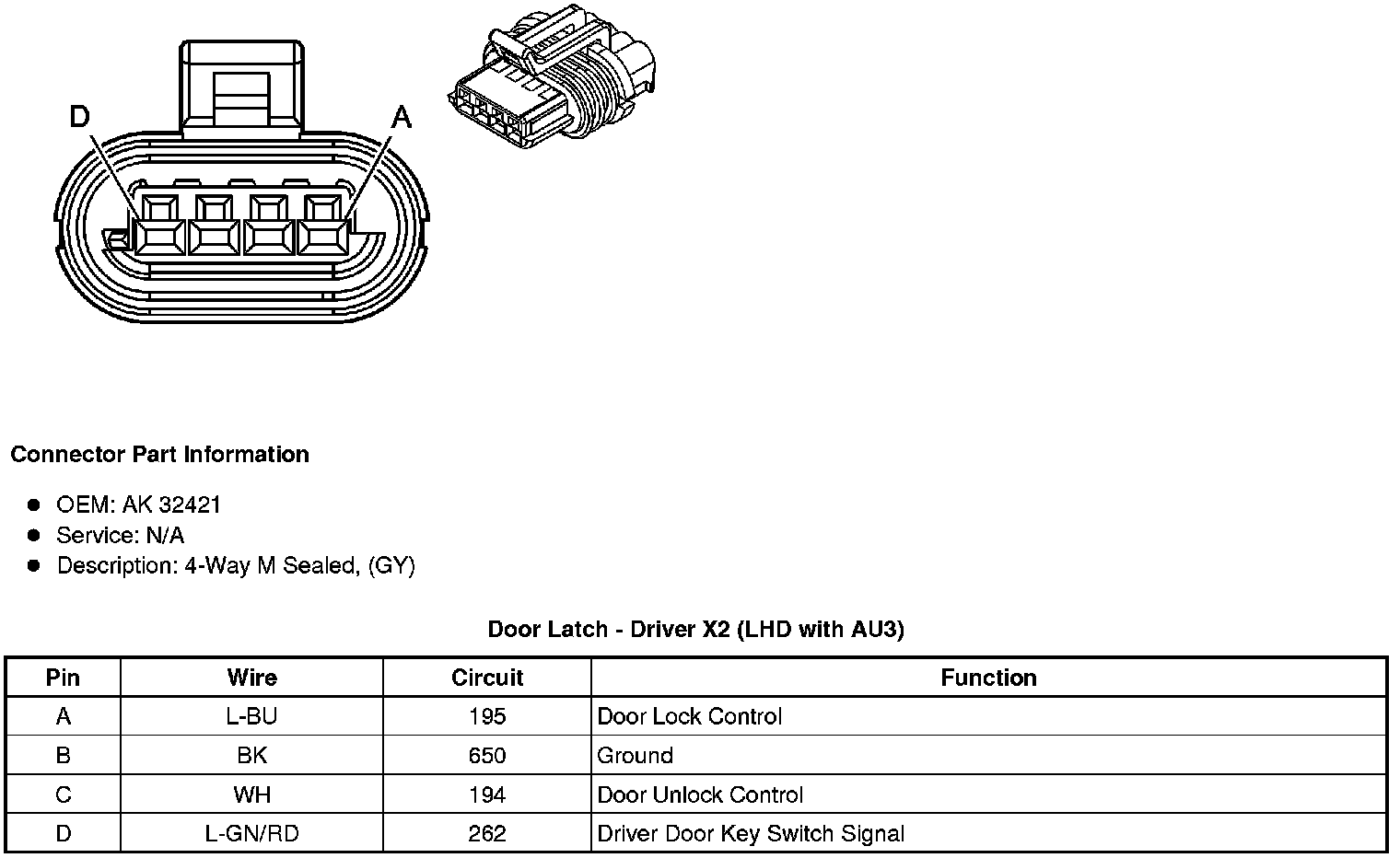

Door Latch - Driver X2 (LHD with AU3)

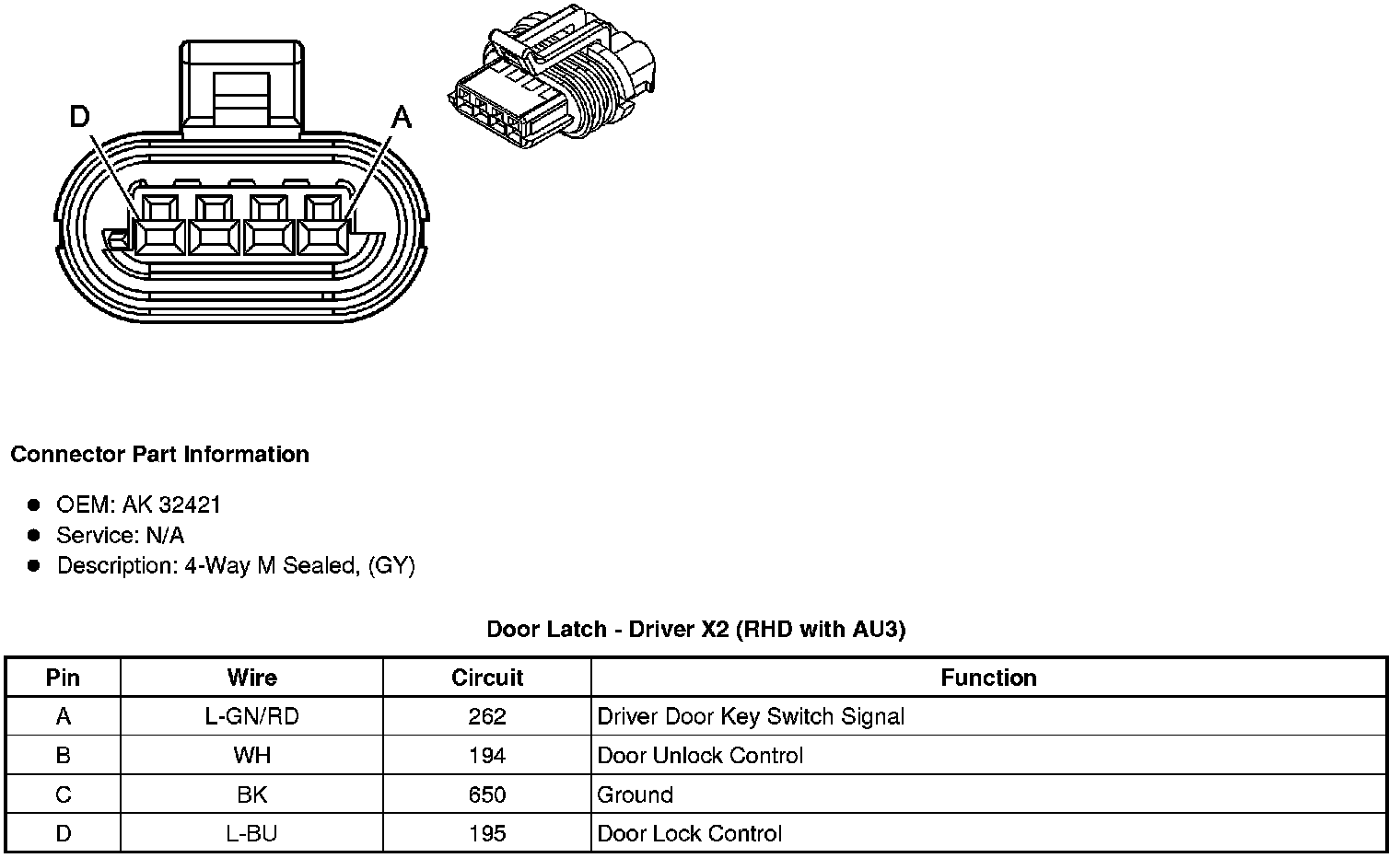

Door Latch - Driver X2 (RHD with AU3)






Door Latch - Left Rear (AU3)






Door Latch - Passenger X1 (AU3)






Door Latch - Passenger X2 (LHD with AU3)






Door Latch - Passenger X2 (RHD with AU3)






Door Latch - Right Rear (AU3)
