System Diagram




Component Connector End Views

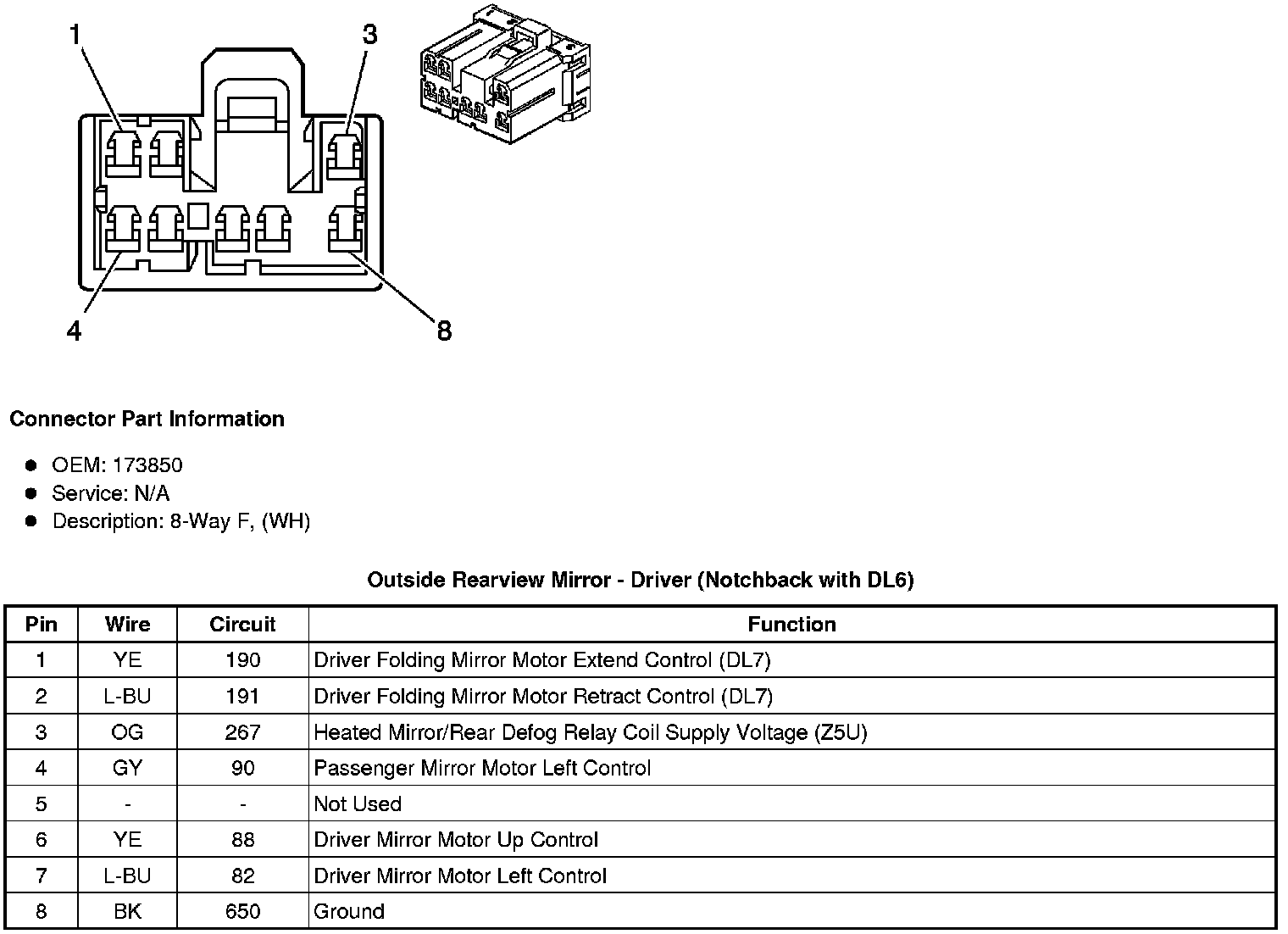

Outside Rearview Mirror - Driver (Hatchback with DL6)






Outside Rearview Mirror - Driver (Notchback with DL6)

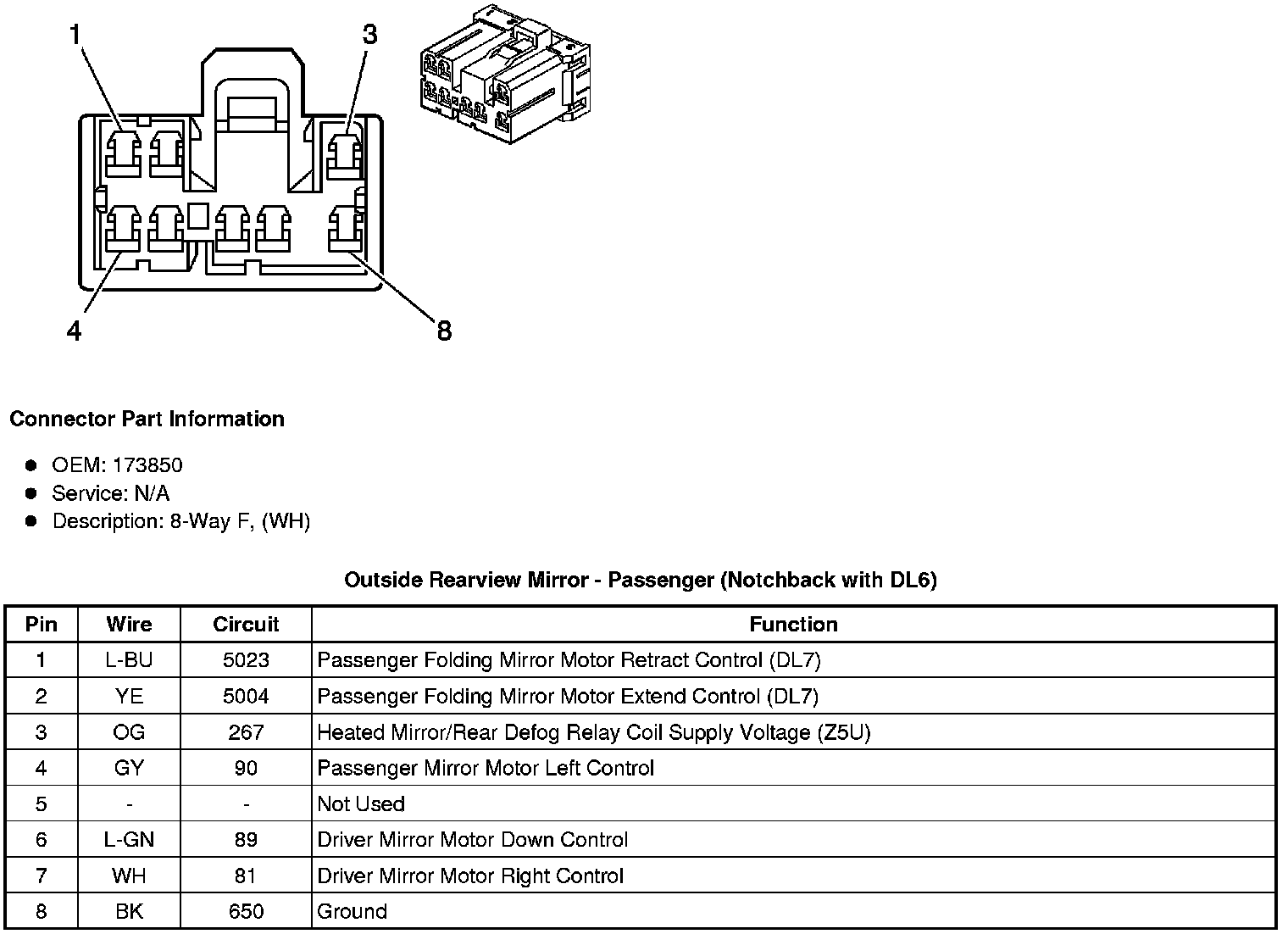

Outside Rearview Mirror - Passenger (Hatchback with DL6)






Outside Rearview Mirror - Passenger (Notchback with DL6)

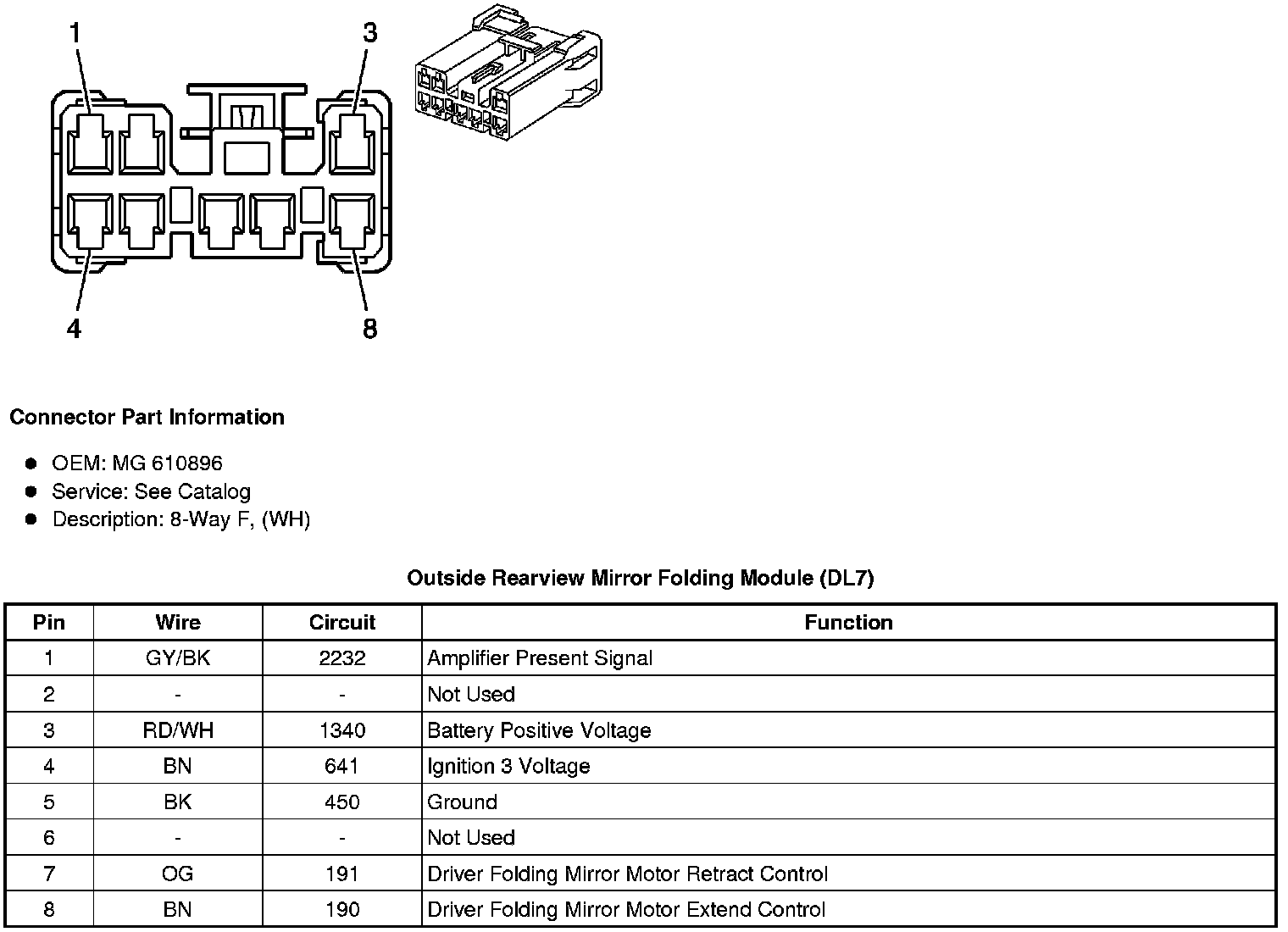

Outside Rearview Mirror Folding Module (DL7)
