Harness Routing Views

Harness Routing Views

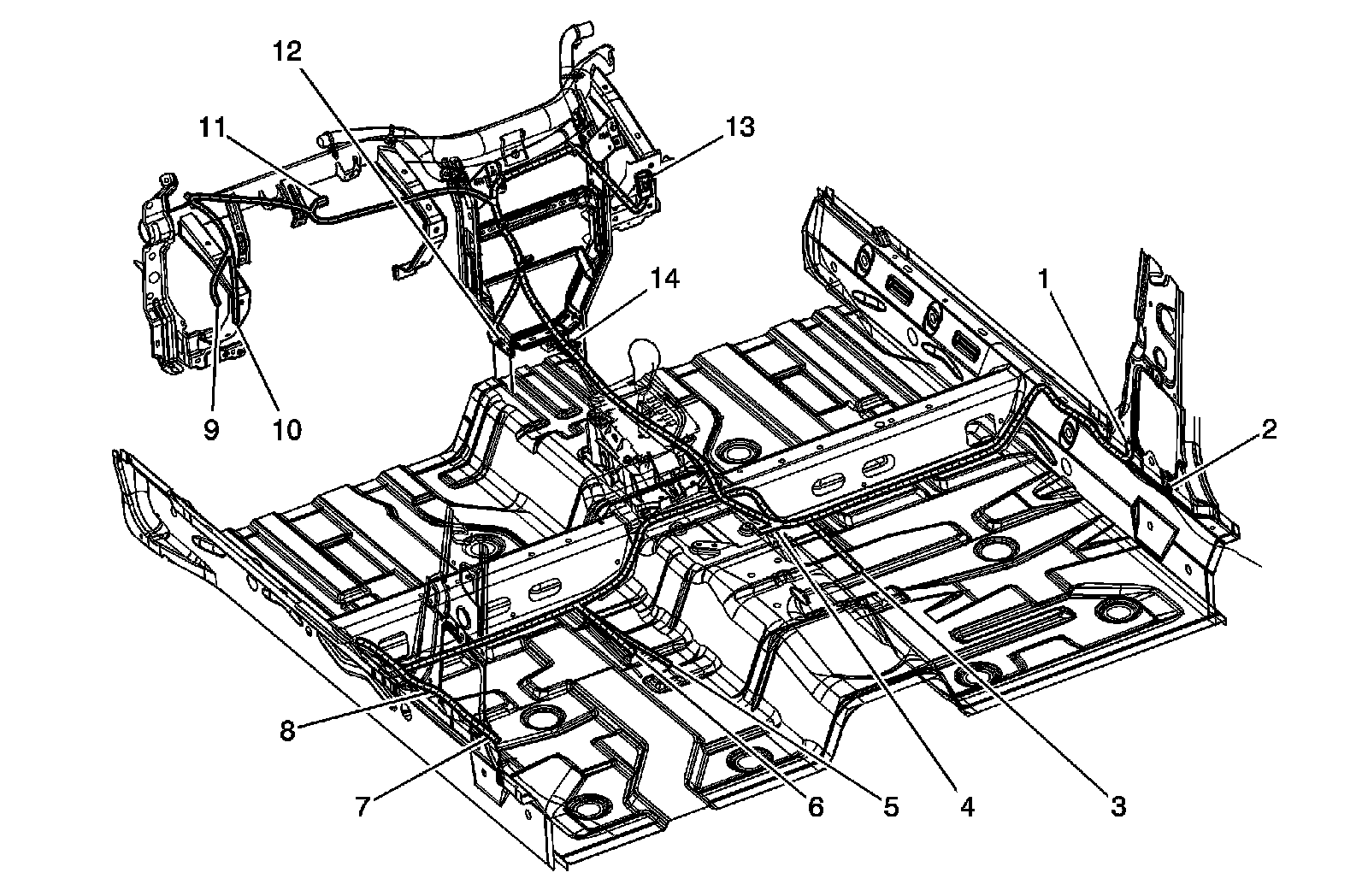

Airbag Harness Routing (RHD Shown, LHD Similar)




1 - Inflatable Restraint Side Impact Sensor - Right
2 - Seat Belt Pretensioner - Right
3 - Inflatable Restraint Side Impact Module - Right
4 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
5 - Passenger Pressence System (PPS) Sensor
6 - Inflatable Restraint Side Impact Module - Left
7 - Seat Belt Pretensioner - Left
8 - Inflatable Restraint Side Impact Sensor - Left
9 - Passenger Airbag Disable Switch
10 - Glove Box Switch
11 - Inflatable Restraint - I/P Module
12 - X216
13 - Inflatable Restraint Steering Wheel Module
14 - G203
