Installation Procedure

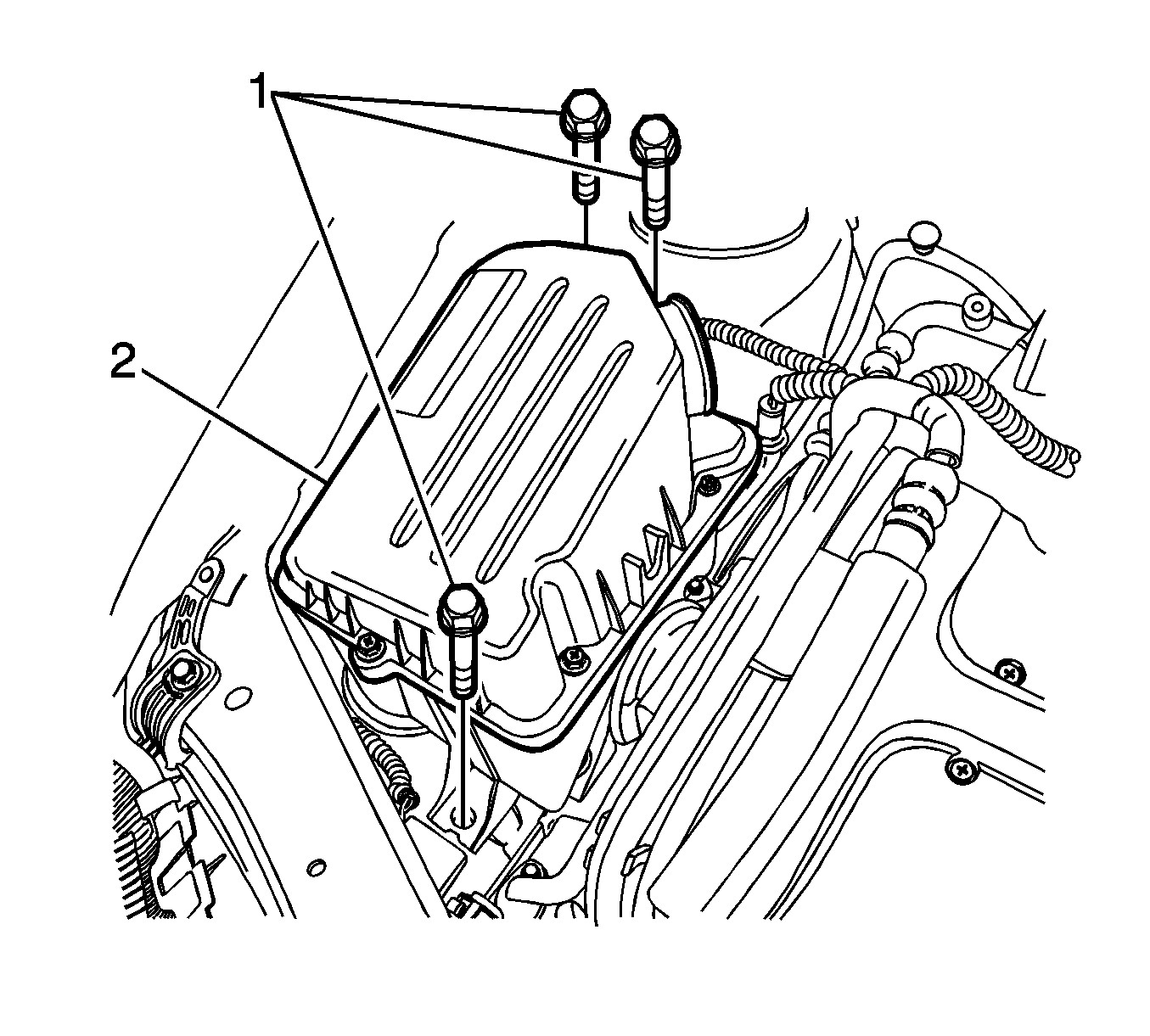

    Fig 1: Air Cleaner Assembly Bolts
    GM2033776Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner assembly (2).
    2. CAUTION: Refer to Fastener Caution .
  2. Install the air cleaner assembly bolts (1) and tighten to 6 N.m (4.4 lb ft).

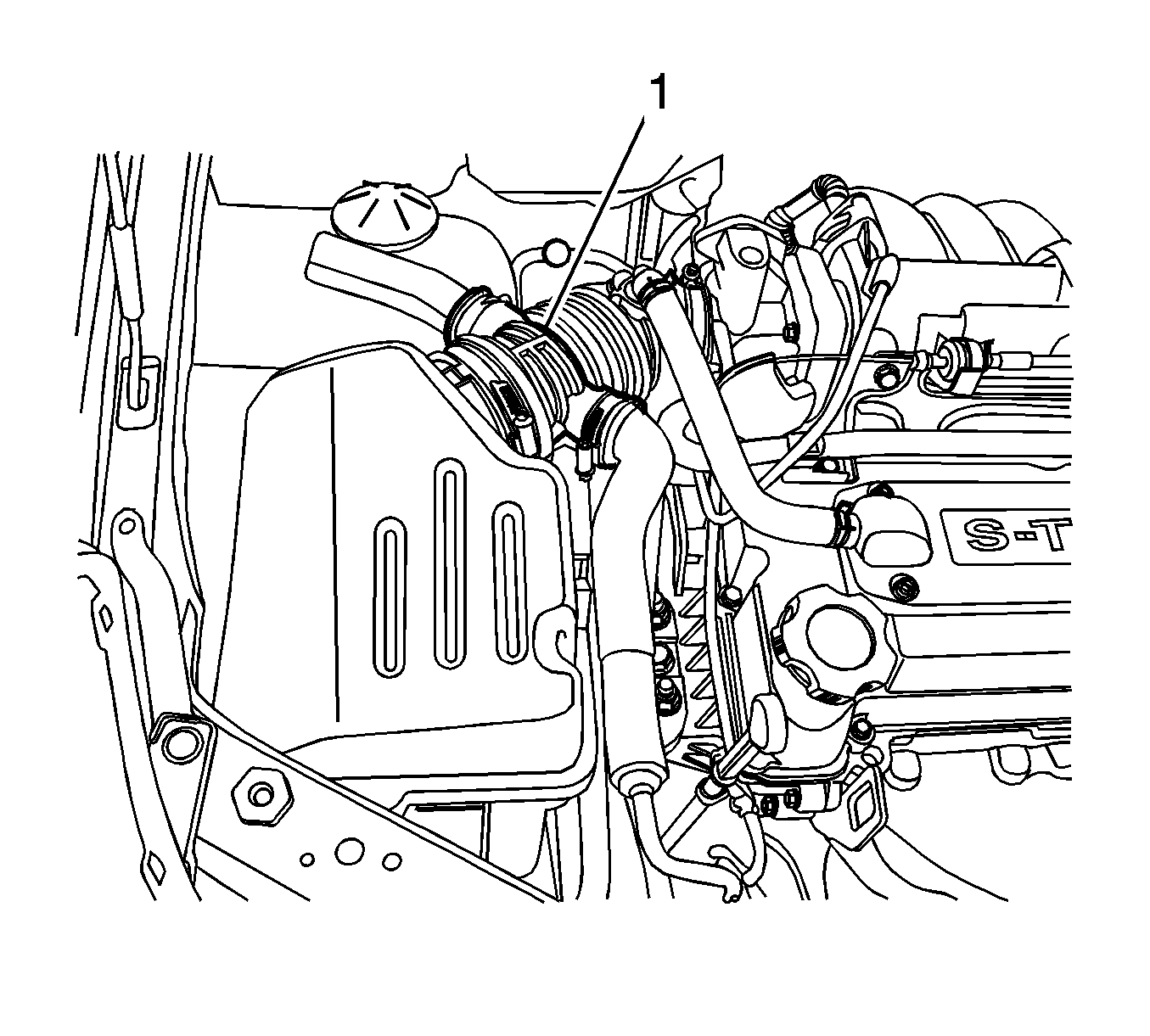

    3. Fig 2: Air Cleaner Assembly
    GM2033775Courtesy of GENERAL MOTORS CORP.
  3. Connect the air cleaner outlet tube (1) and tighten the clamp.
  4. Connect the breather hose.
  5. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
