Installation Procedure

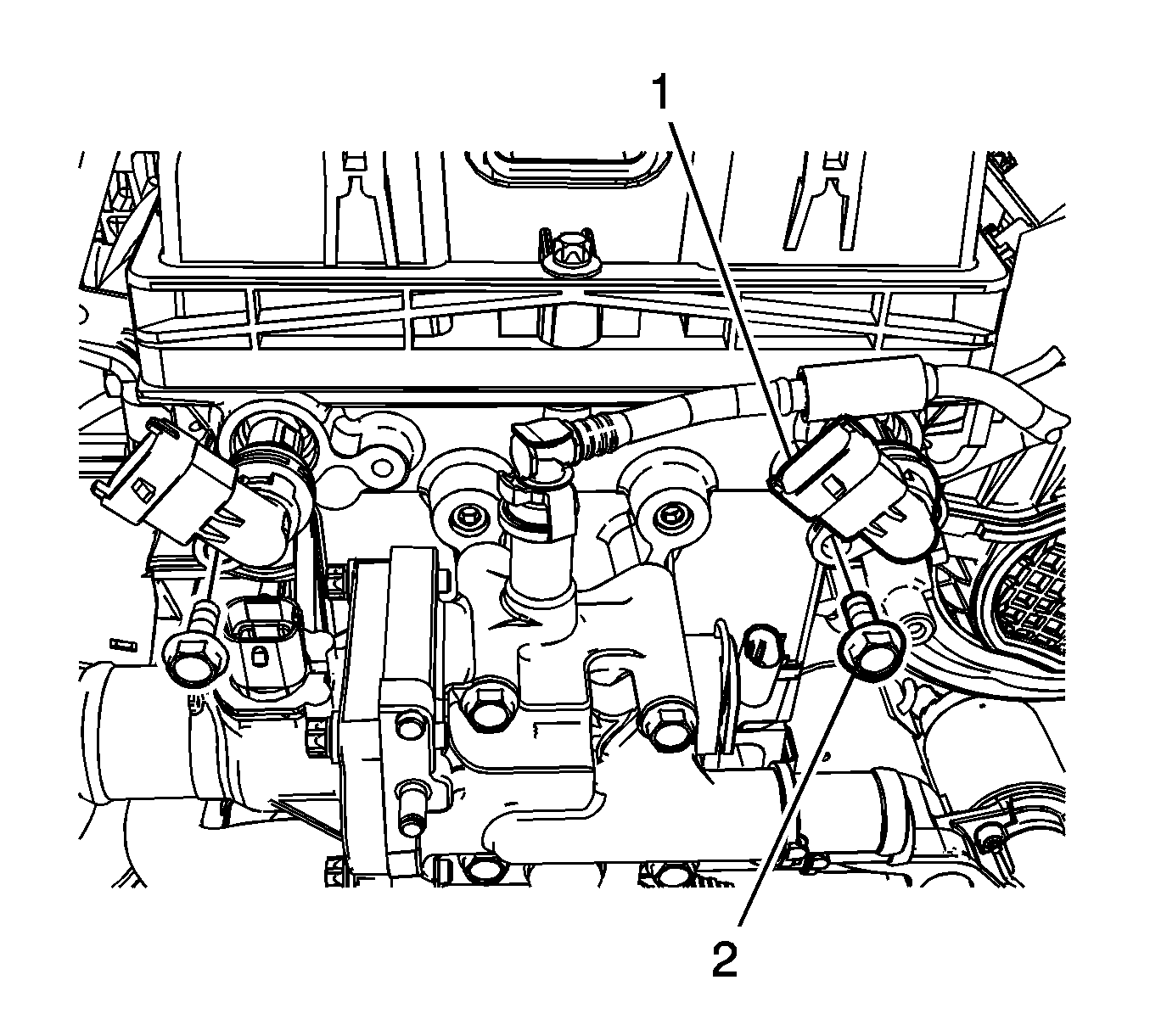

    Fig 1: Camshaft Position Sensor
    GM2049258Courtesy of GENERAL MOTORS CORP.
  1. Install the CMP sensor (1).
  2. Install the CMP sensor bolt (2).
  3. Connect the CMP sensor connectors.
  4. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
