Installation Procedure

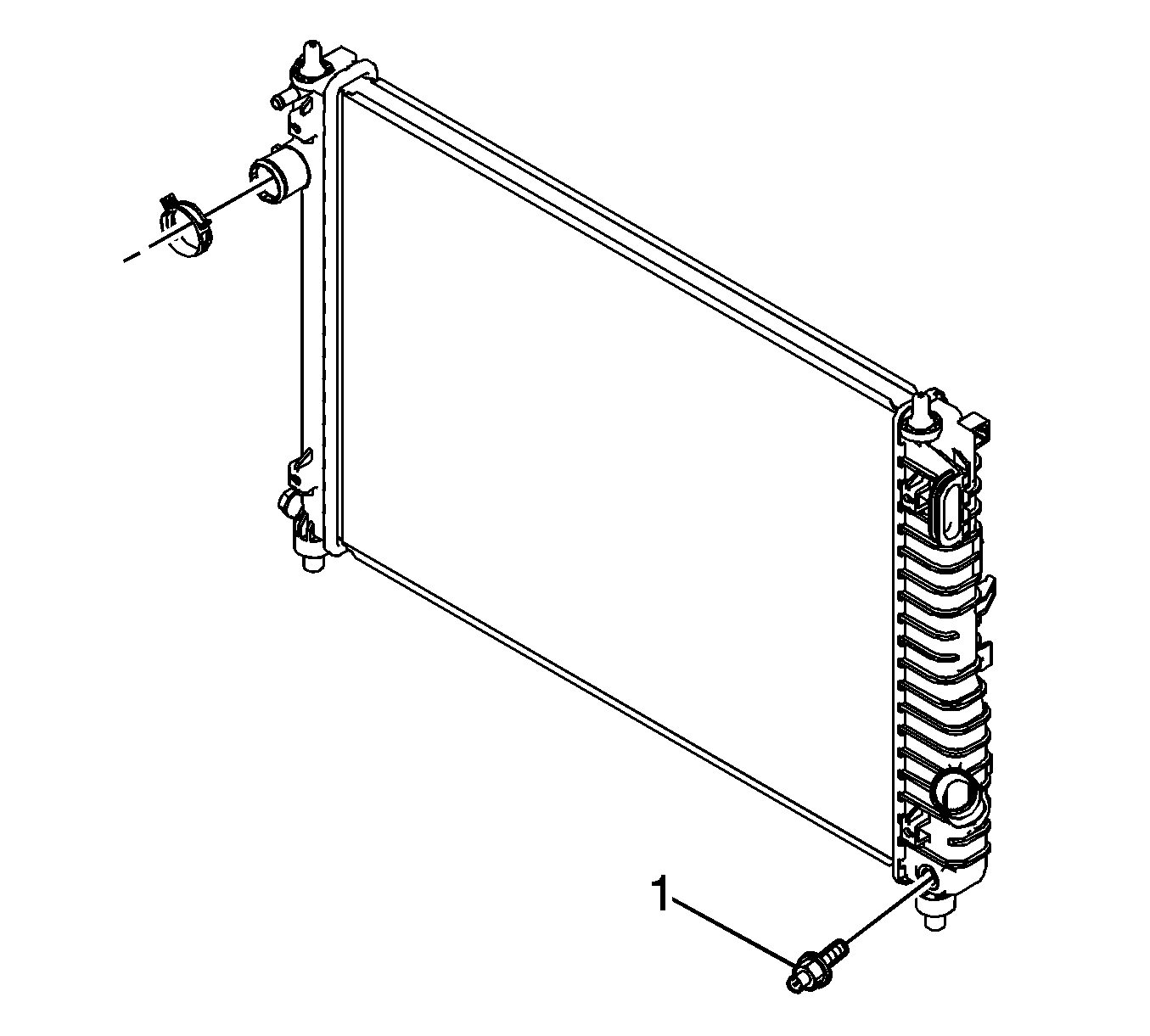

    Fig 1: ECT 2
    GM2049247Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the ECT 2 sensor (1) to the radiator.

    Tighten:  Tighten the ECT 2 sensor to 20 N.m (15 lb ft).

  2. Connect the ECT 2 sensor connector.
  3. Fill the engine coolant. Refer to Cooling System Draining and Filling .
  4. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
