Installation Procedure

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

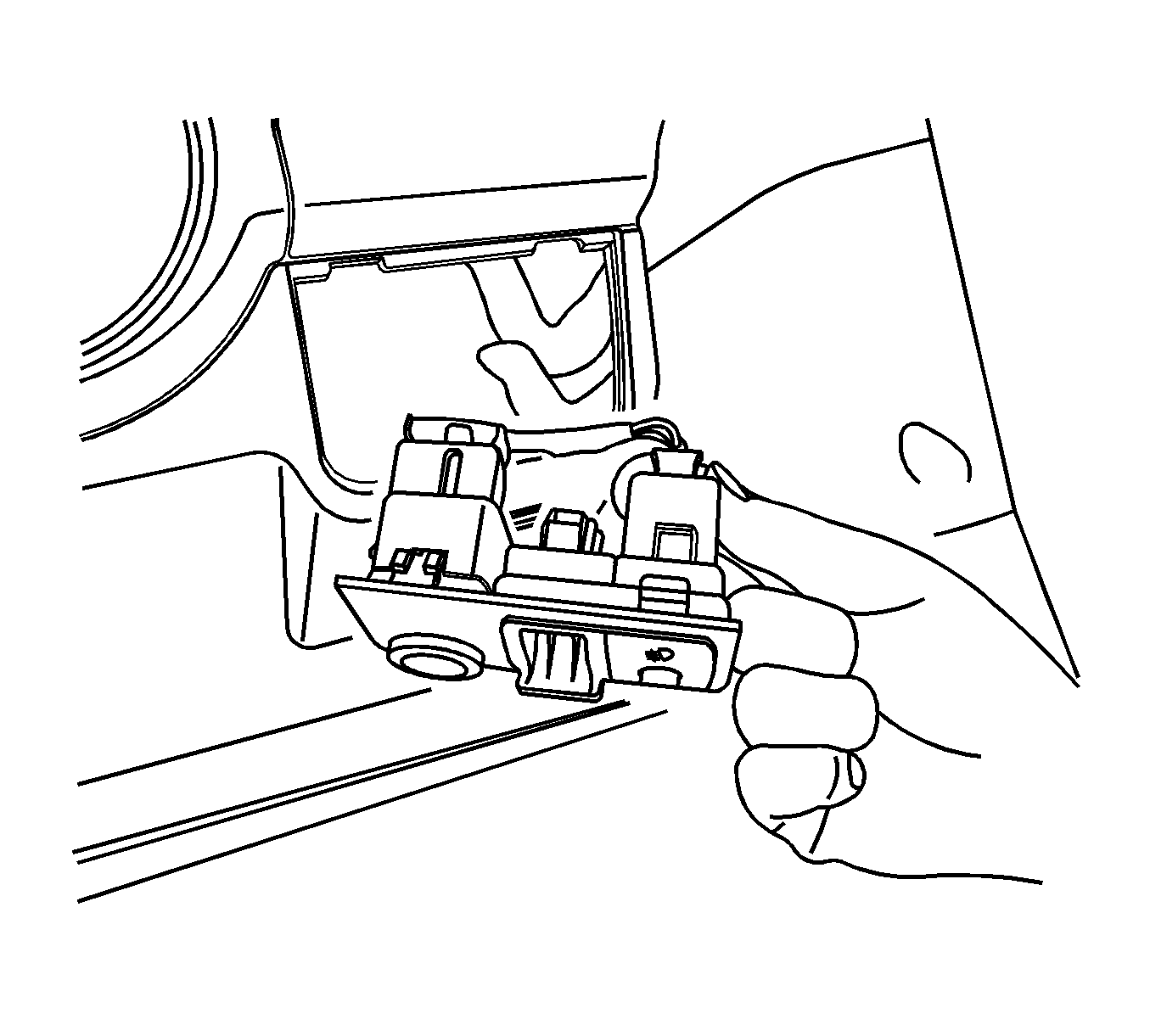

    Fig 1: Power Mirror Switch
    GM2248238Courtesy of GENERAL MOTORS CORP.
  1. Connect the power mirror switch electrical connectors.
  2. Install the power mirror switch assembly to the instrument panel. Listen for an audible click to confirm fitting.
