HVAC Views
Harness Routing Views

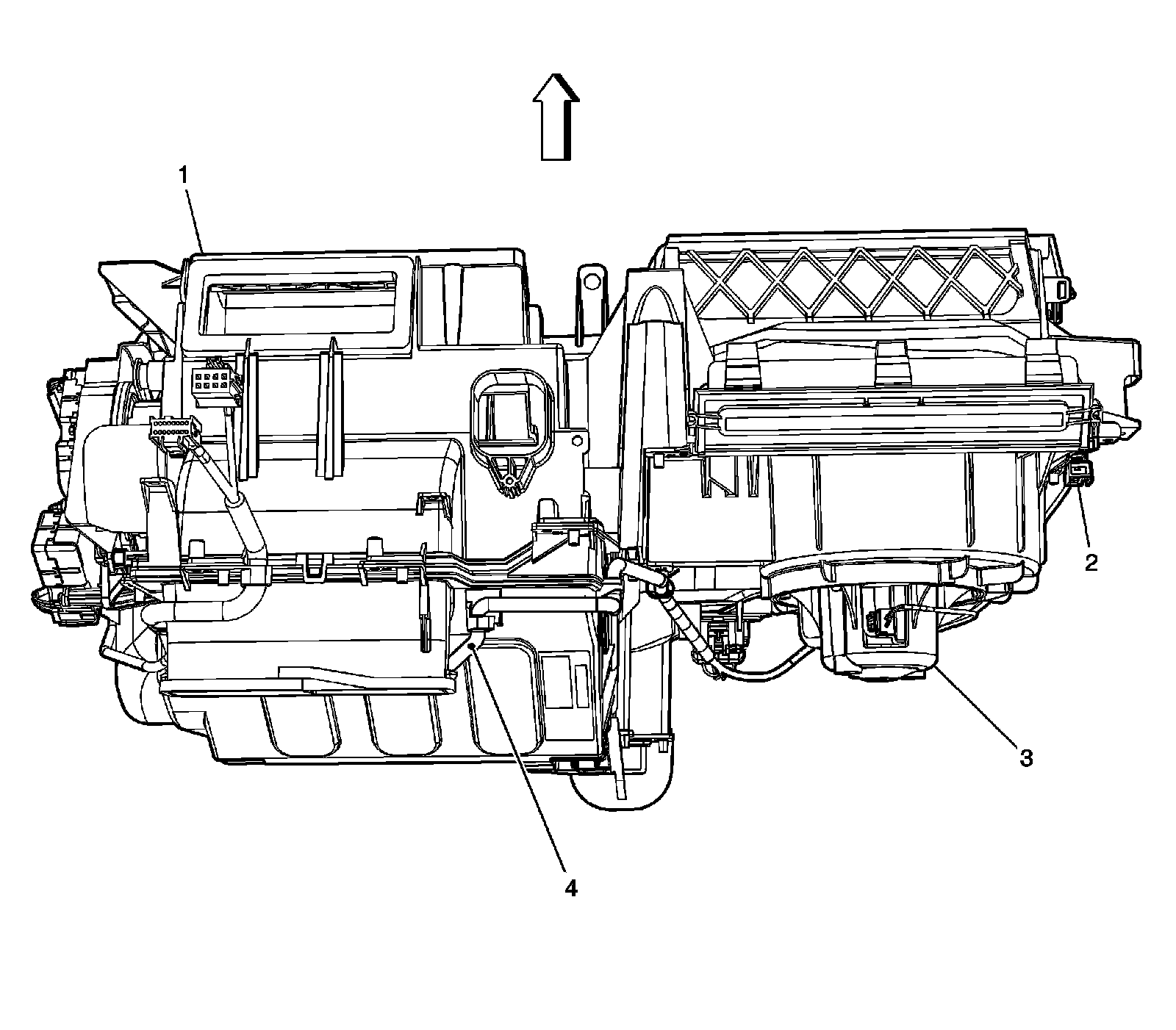

HVAC Assembly Harness
1
- HVAC Box
2
- X210
3
- Blower Motor
4
- J261
