Steering Control Module




Component Connector End Views

Electronic Power Steering Control Module X1 (NV7)

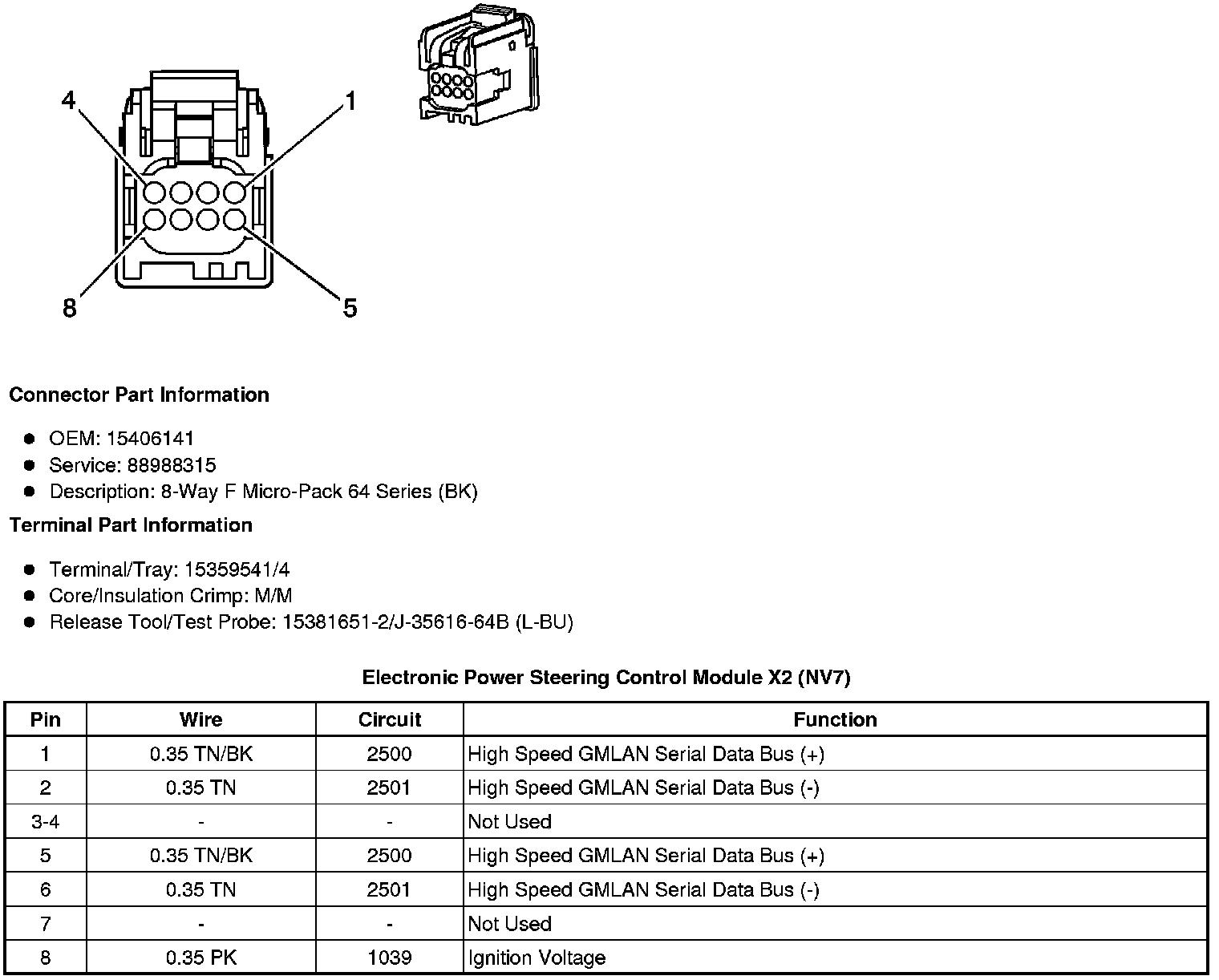

Electronic Power Steering Control Module X2 (NV7)

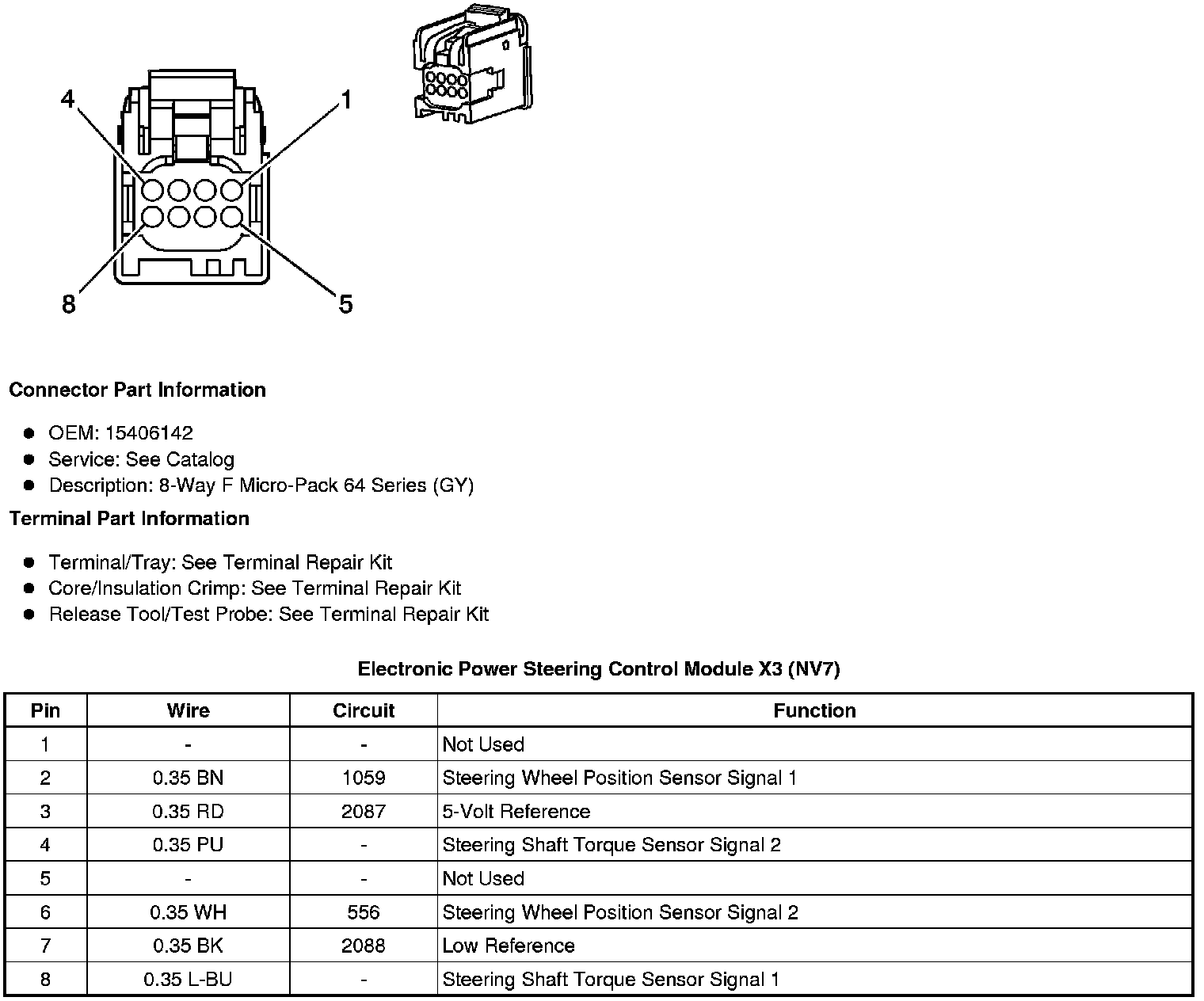

Electronic Power Steering Control Module X3 (NV7)
