Turn Signal Lamp




Component Connector End Views

Park/Turn Signal Lamp - Left

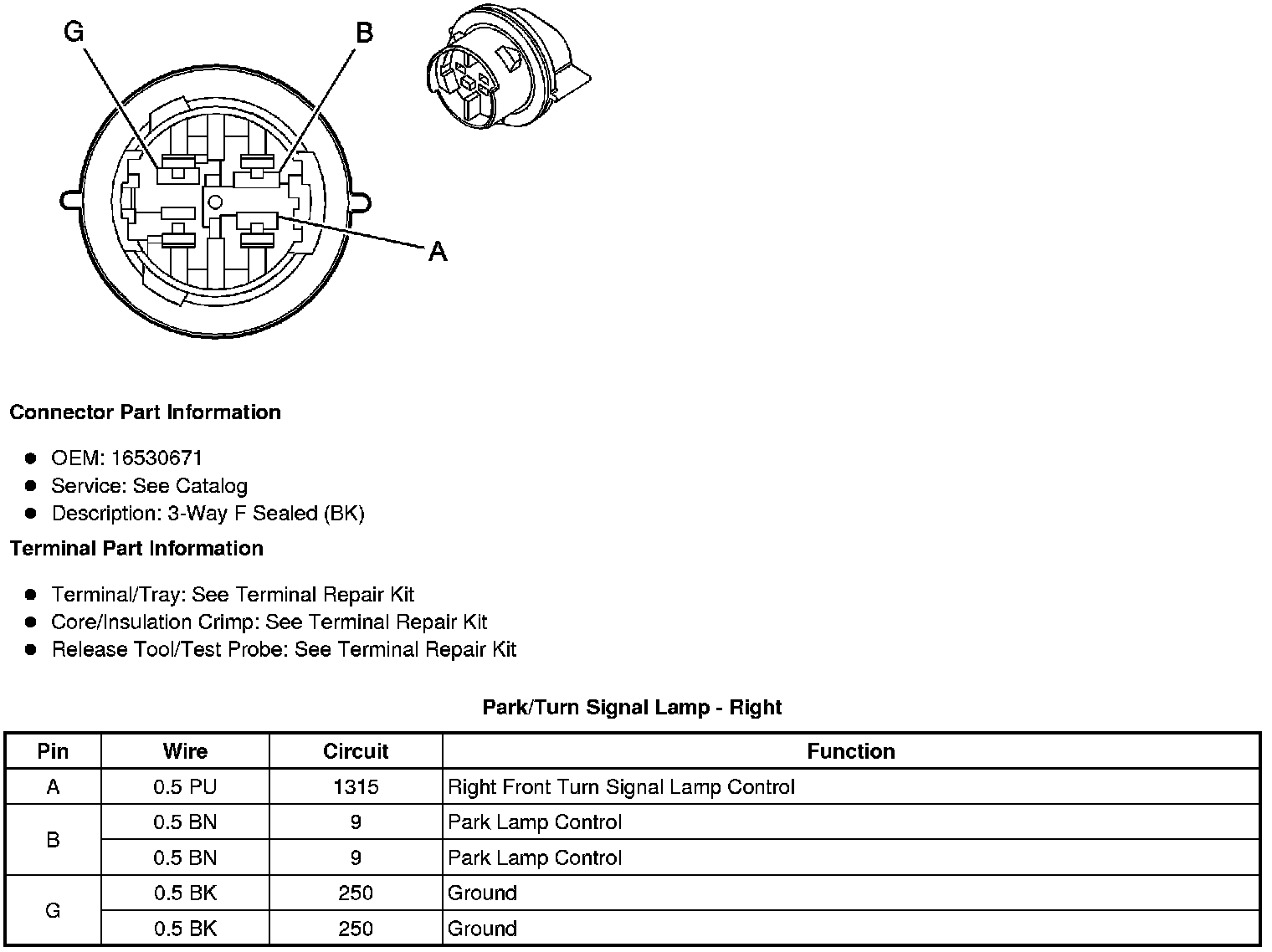

Park/Turn Signal Lamp - Right






Tail/Stop and Turn Signal Lamp - Left






Tail/Stop and Turn Signal Lamp - Right
