Ignition Coil: Diagrams




Component Connector End Views

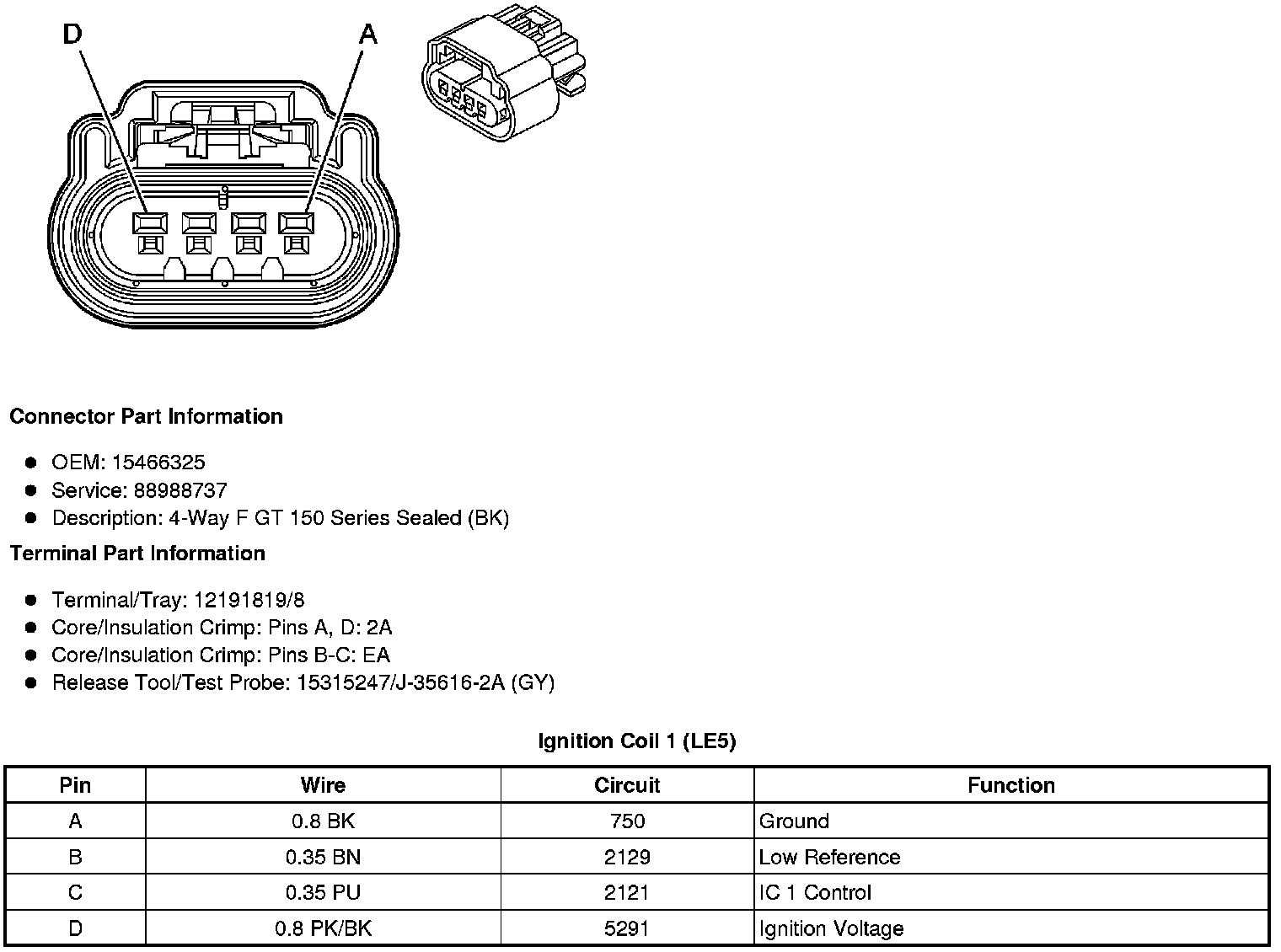

Ignition Coil 1 (LE5)

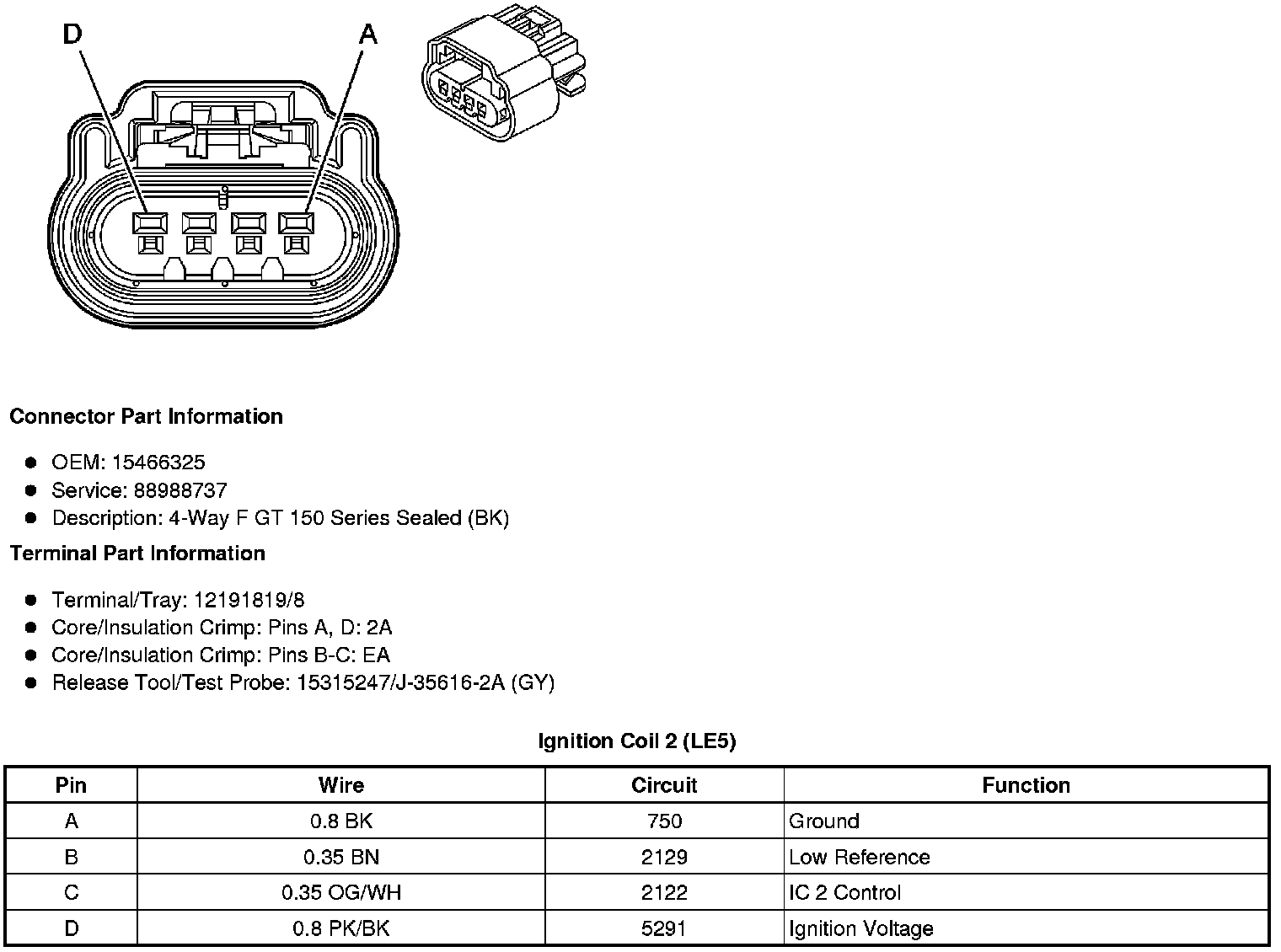

Ignition Coil 2 (LE5)






Ignition Coil 3 (LE5)

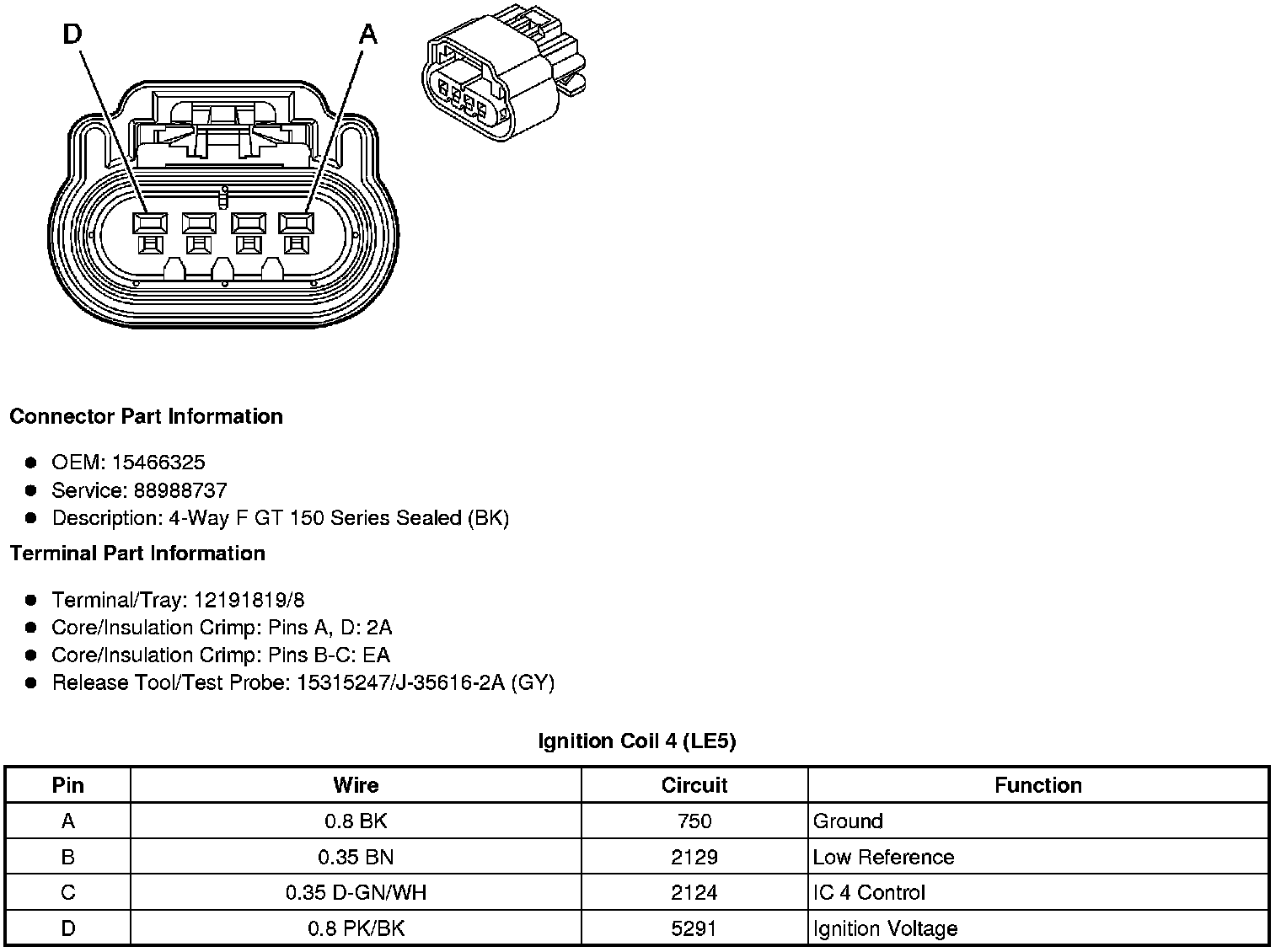

Ignition Coil 4 (LE5)
