Amplifier, Sound System




Component Connector End Views

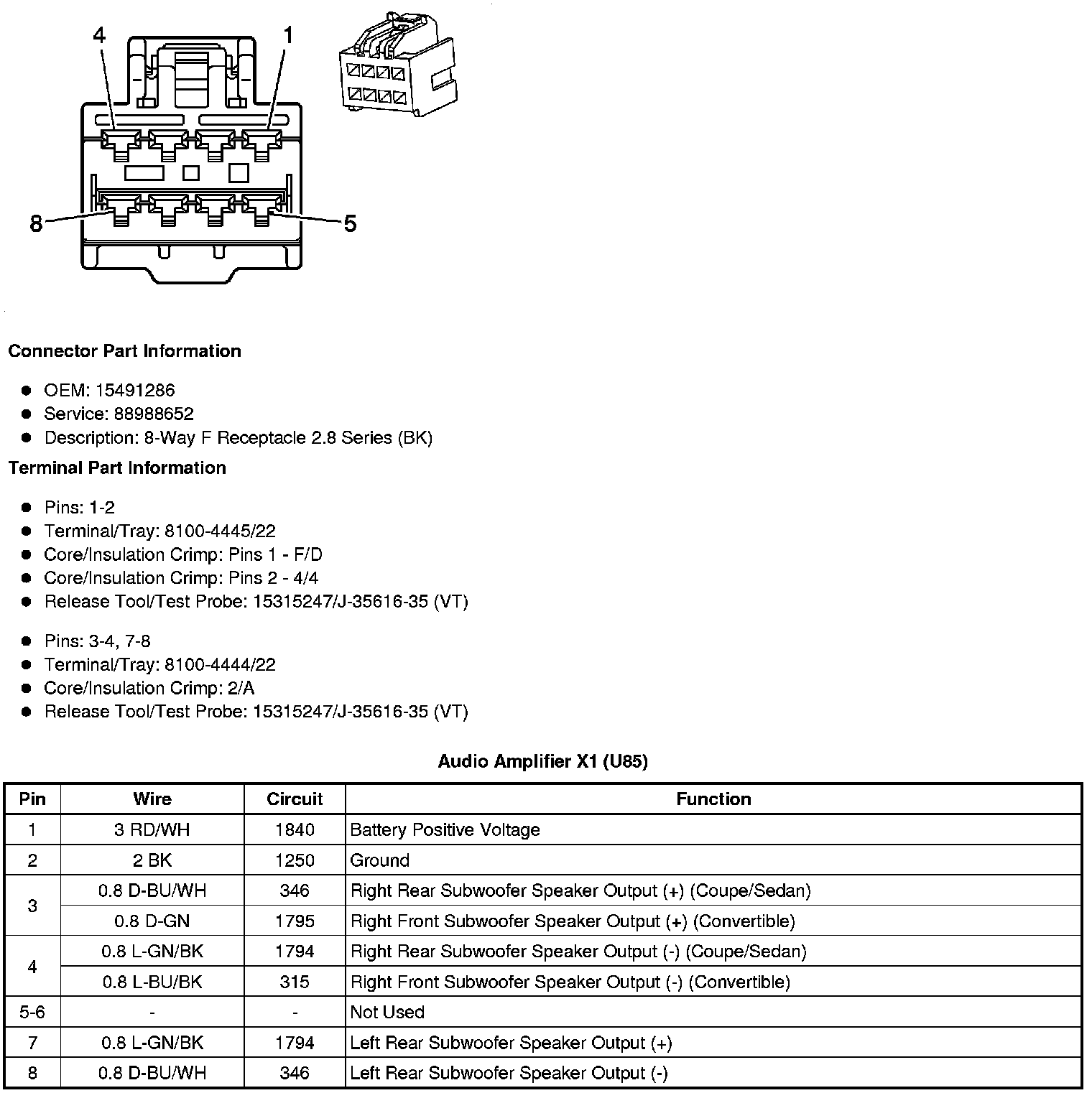

Audio Amplifier X1 (U85)

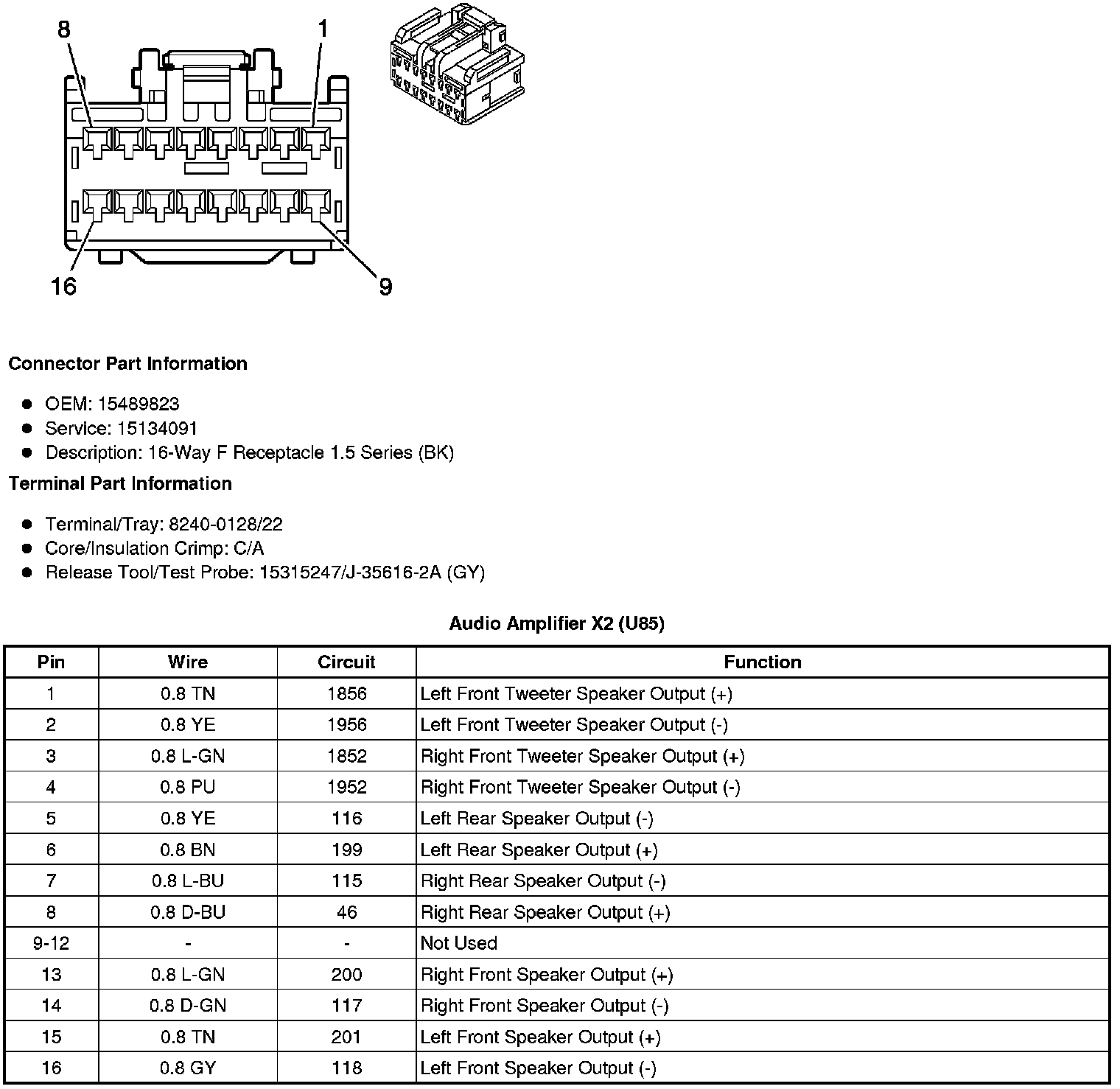

Audio Amplifier X2 (U85)

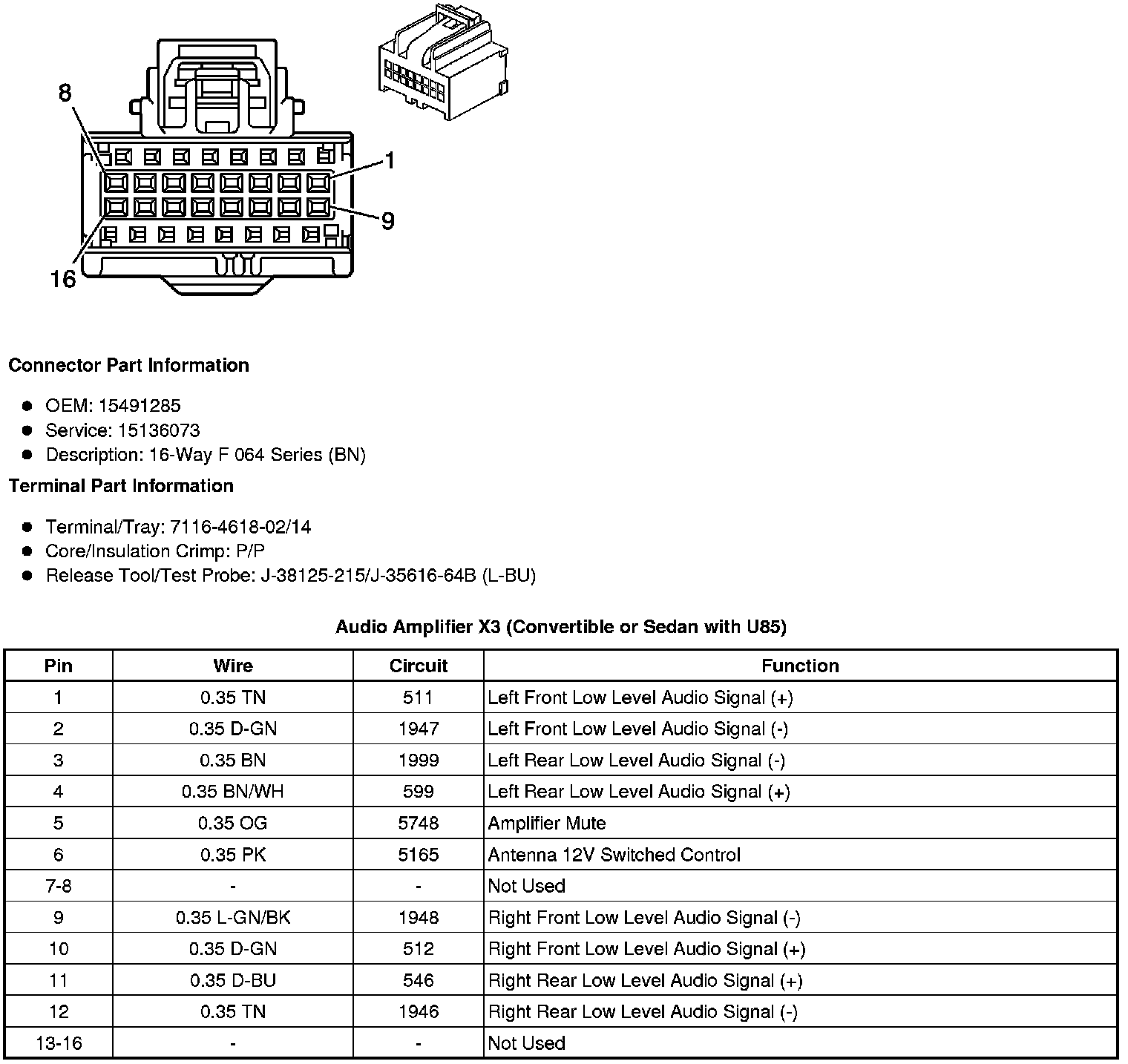

Audio Amplifier X3 (Convertible or Sedan with U85)

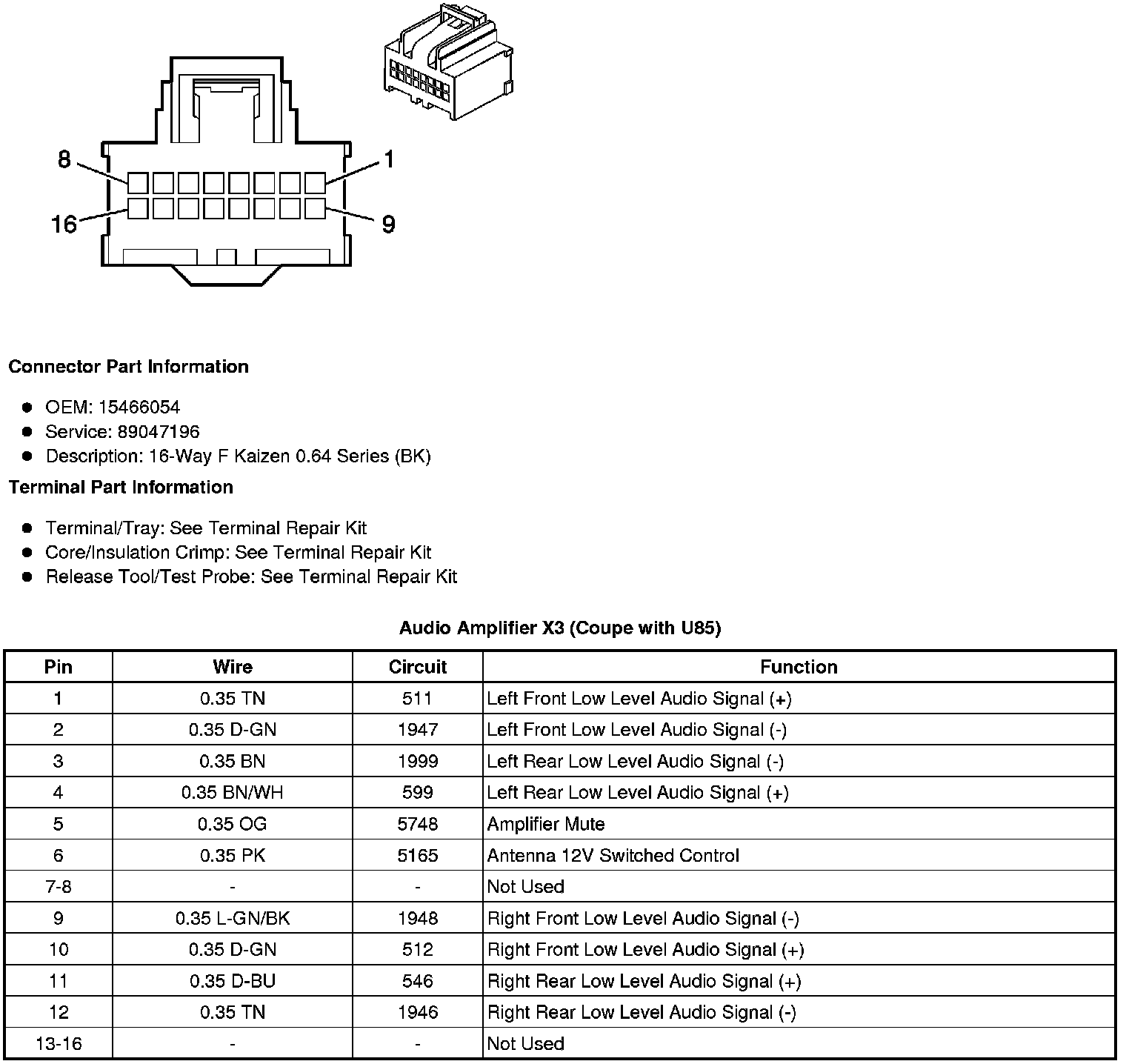

Audio Amplifier X3 (Coupe with U85)
