Oxygen Sensor: Diagrams




Component Connector End Views

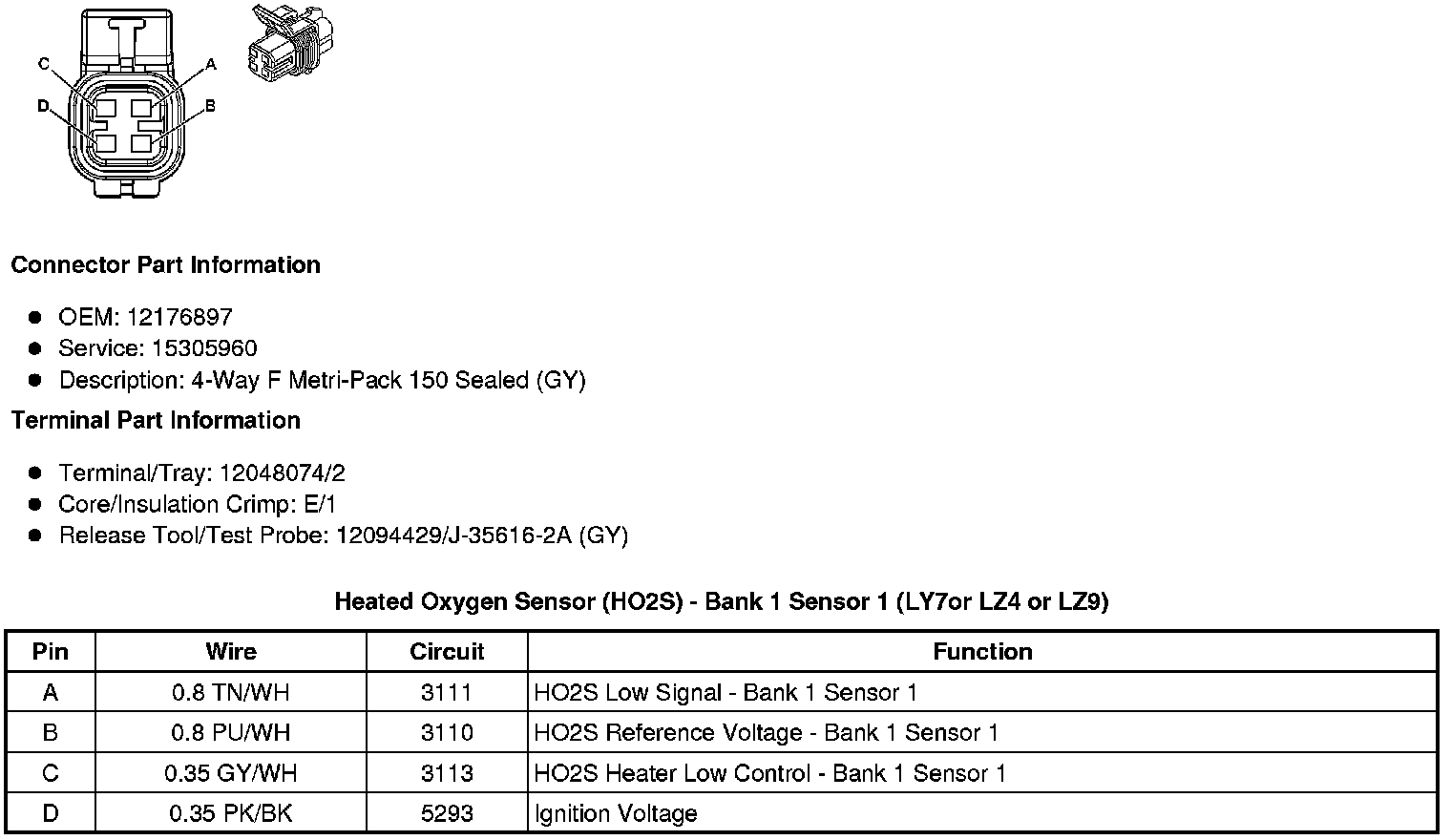

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 (LY7or LZ4 or LZ9)

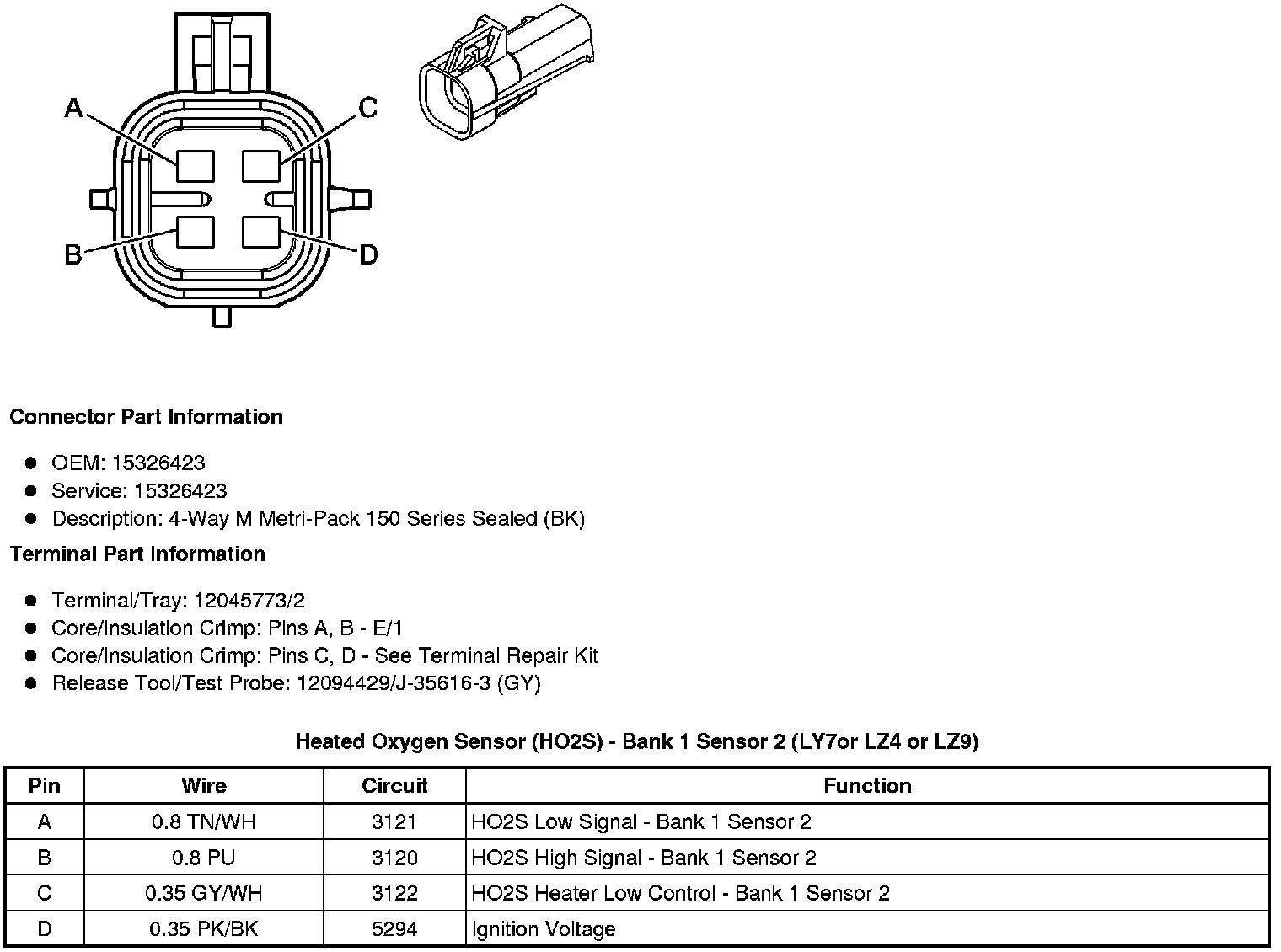

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2 (LY7or LZ4 or LZ9)

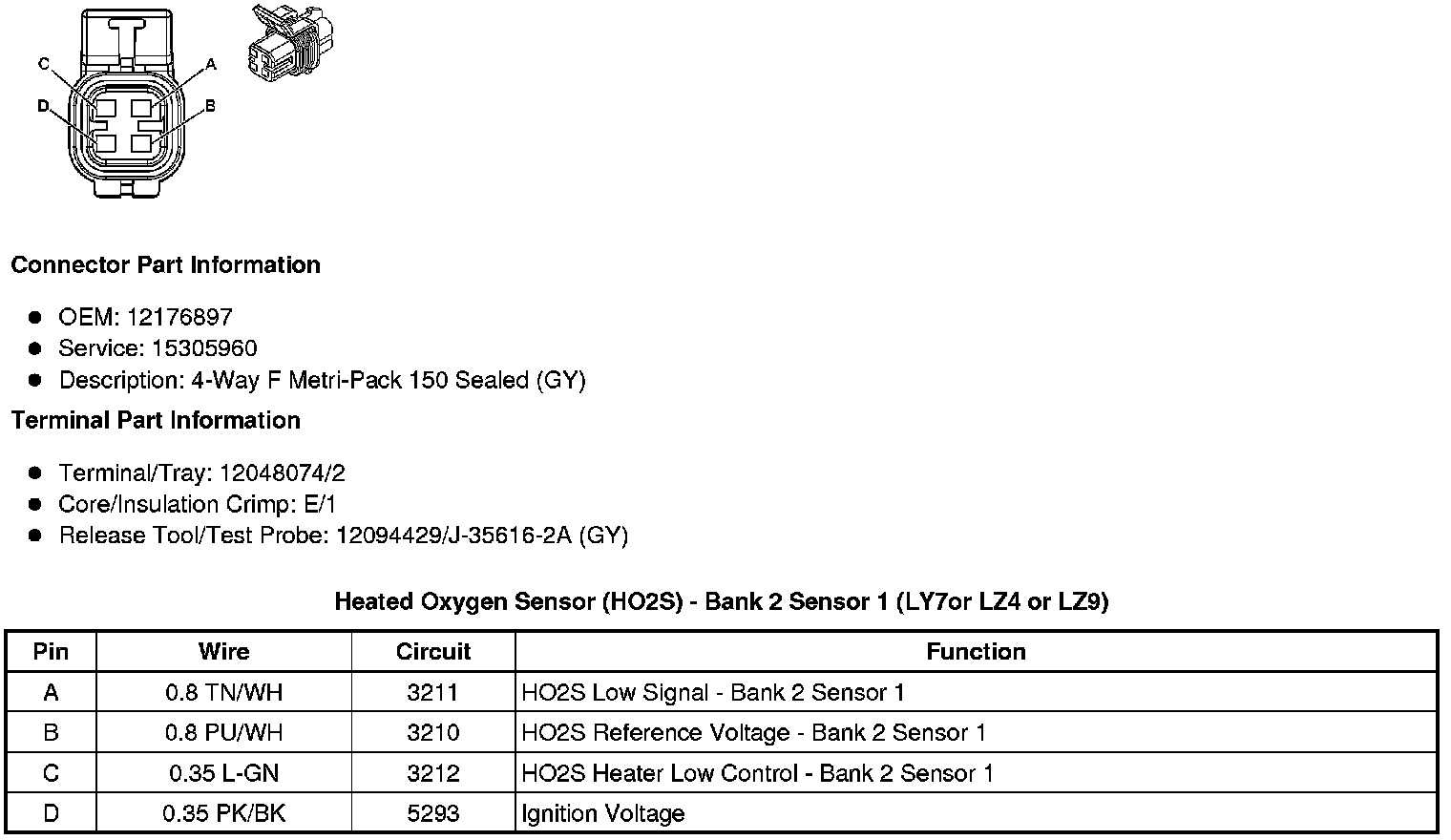

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (LY7or LZ4 or LZ9)

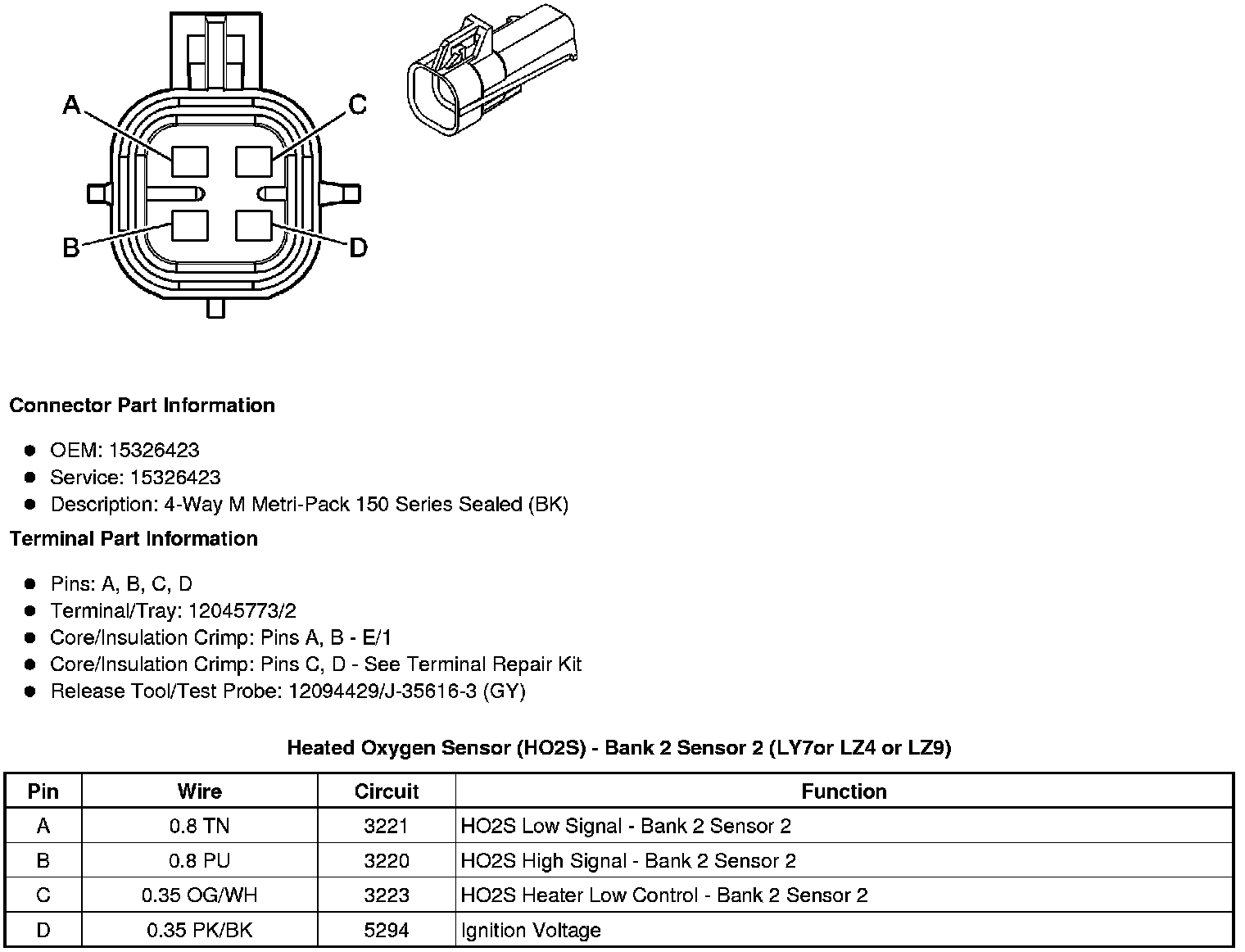

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2 (LY7or LZ4 or LZ9)
