Variable Valve Timing Solenoid: Locations

Harness Routing Views

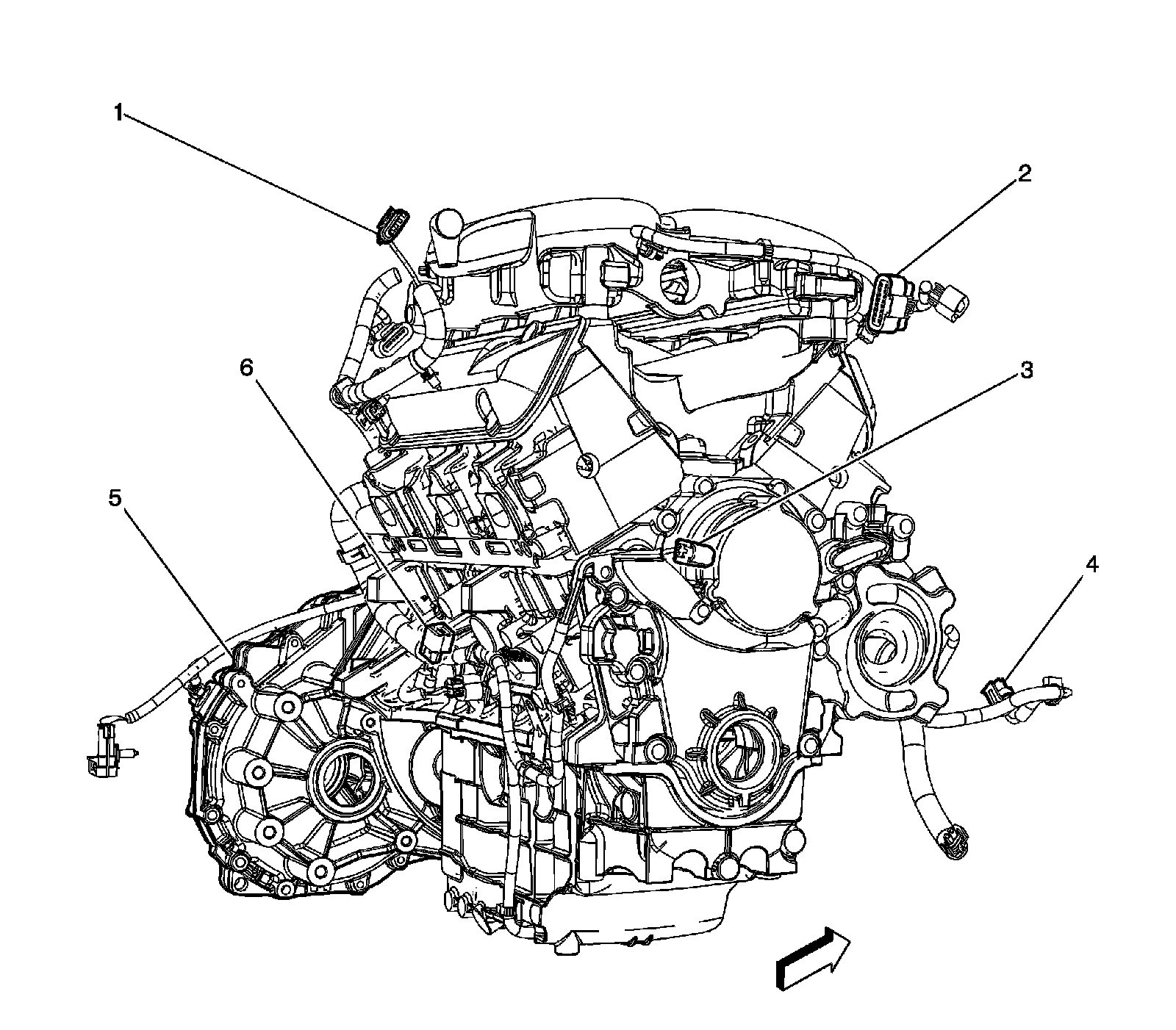

Rear of the Engine (LZ9 with MT2)




1 - Generator Connector
2 - X130
3 - Camshaft Position (CMP) Actuator Solenoid
4 - Cooling Fan - Right Connector
5 - Transmission
6 - Knock Sensor Connector
