Cruise Control Schematics

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

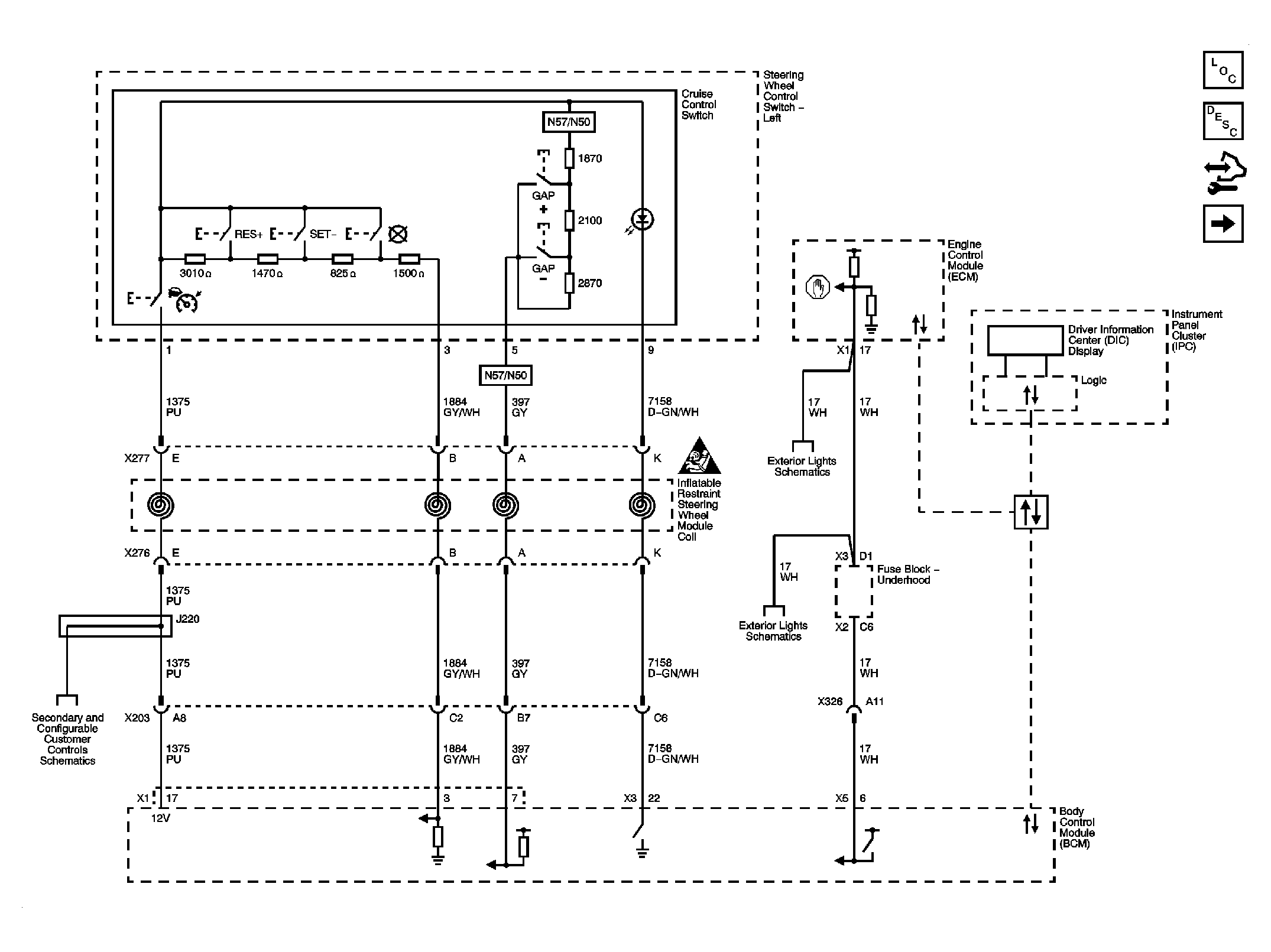

Fig 1: ON/OFF Switch
GM2082325Courtesy of GENERAL MOTORS CORP.
Fig 2: Distance Sensing Cruise Control Module
GM2082326Courtesy of GENERAL MOTORS CORP.
Fig 3: Indicators
GM2082328Courtesy of GENERAL MOTORS CORP.
