Installation Procedure

WARNING: This page is about a different car, the 2008 Pontiac G8. However, it is still accessible from the selected car via links, so may be relevant.

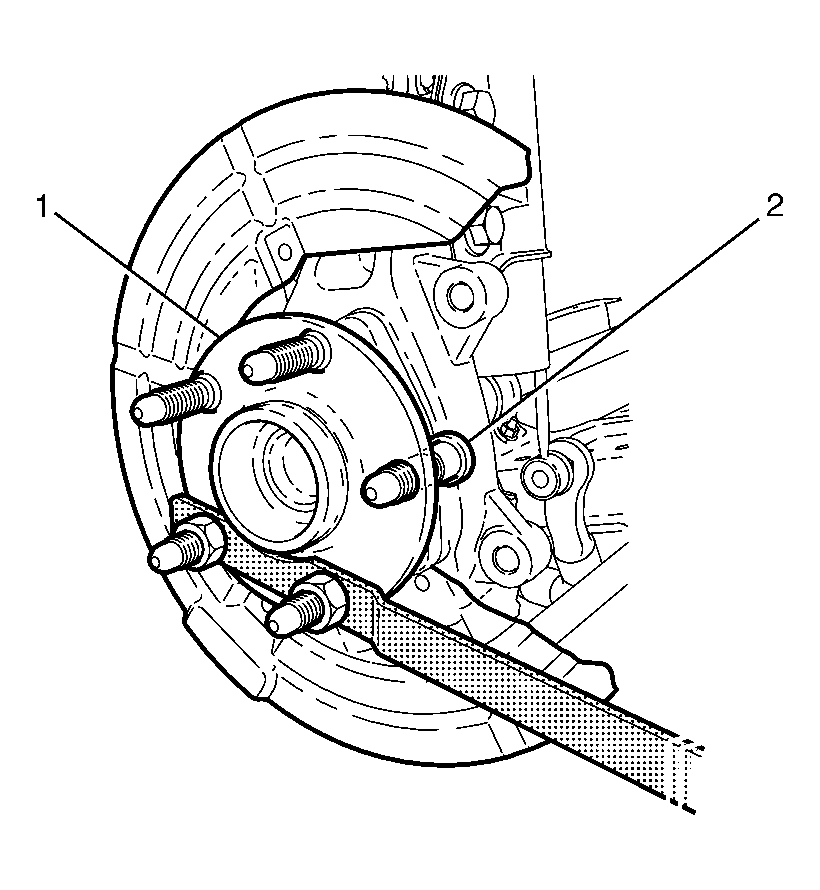

    Fig 1: View Of Replacement Wheel Stud & Wheel Hub Flange
    GM1949929Courtesy of GENERAL MOTORS CORP.
  1. Install the replacement wheel stud (2) to the wheel hub flange (1).

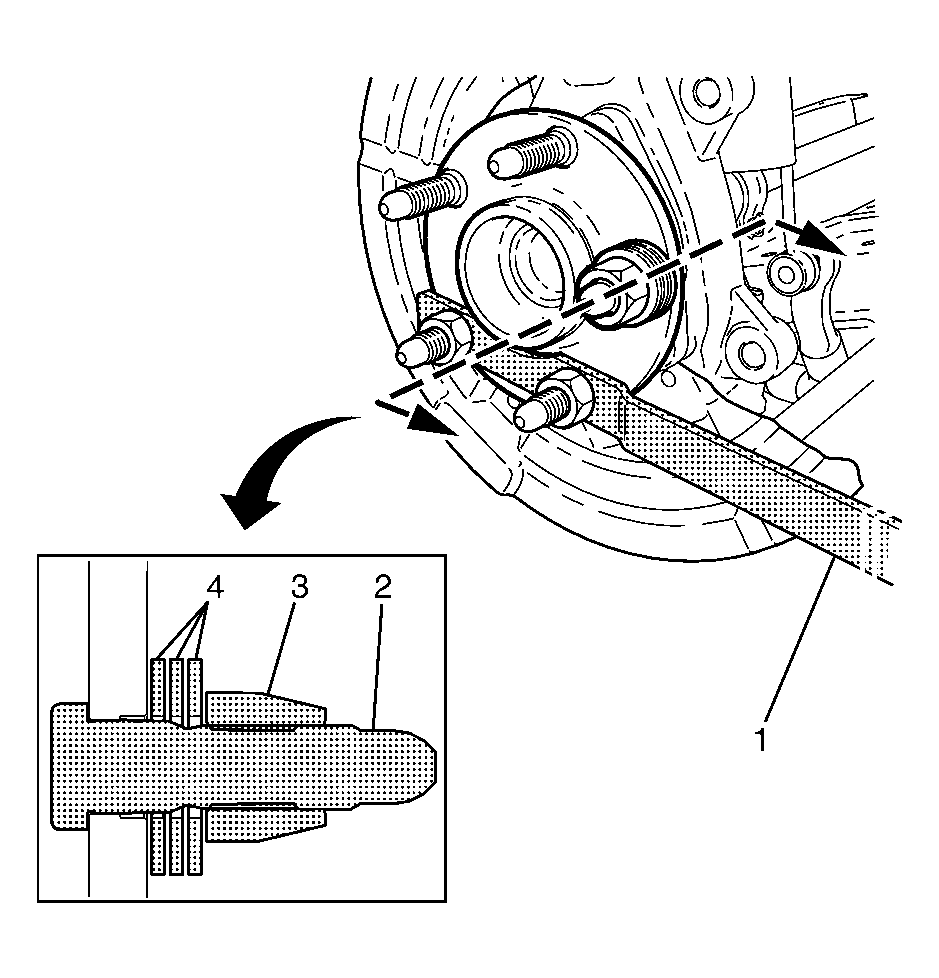

    2. Fig 2: View Of Spacing Washers, Inverted Wheel Nut & Replacement Wheel Stud
    GM1949918Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Suitable sized spacing washers (4) must be used to seat the wheel stud (2) fully.
  2. Install spacing washers (4) and a inverted wheel nut (3) onto the replacement wheel stud (2).
  3. Secure the KM-468  (1) and tighten the wheel nut (3) to pull the wheel stud (2) into place.
  4. Remove the wheel nut (3) and spacing washers (4).
  5. Repeat steps  1 to  4 for any additional studs that require replacement.
  6. Remove the KM-468  (1).
  7. Install the brake disc. Refer to Front Brake Rotor Replacement .
  8. Install the front wheel. Refer to Tire and Wheel Removal and Installation .
  9. Remove the safety stands.
  10. Lower the vehicle to the ground.
