Removal Procedure

WARNING: This page is about a different car, the 2008 Pontiac G8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear dome lamp assembly. Refer to Dome Lamp Replacement .

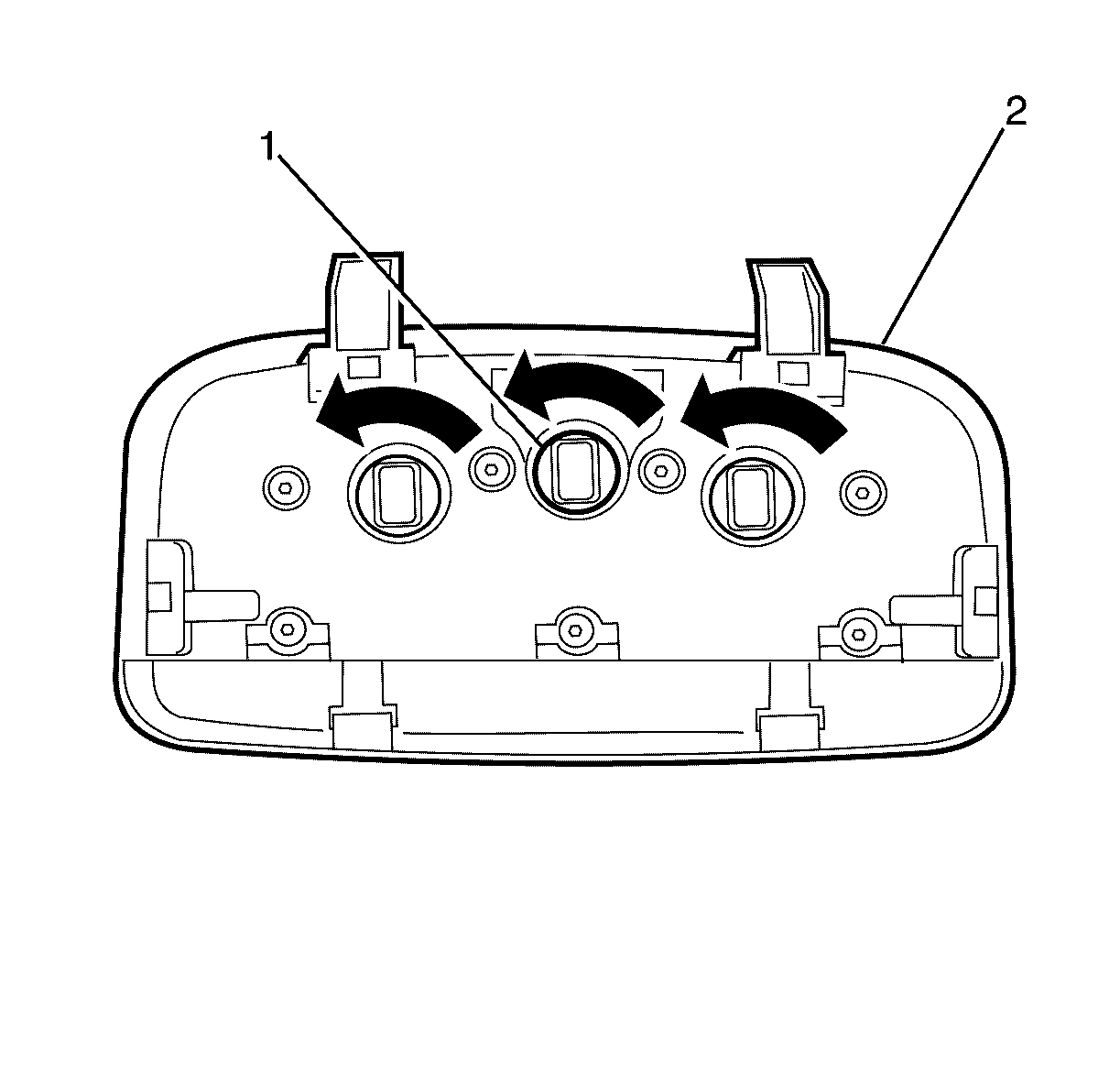

    2. Fig 1: Identifying Dome Lamp Assembly & Bulb Socket
    GM2048217Courtesy of GENERAL MOTORS CORP.
  2. Twist the dome lamp bulb socket (1) counter clockwise and remove from the dome lamp assembly (2).

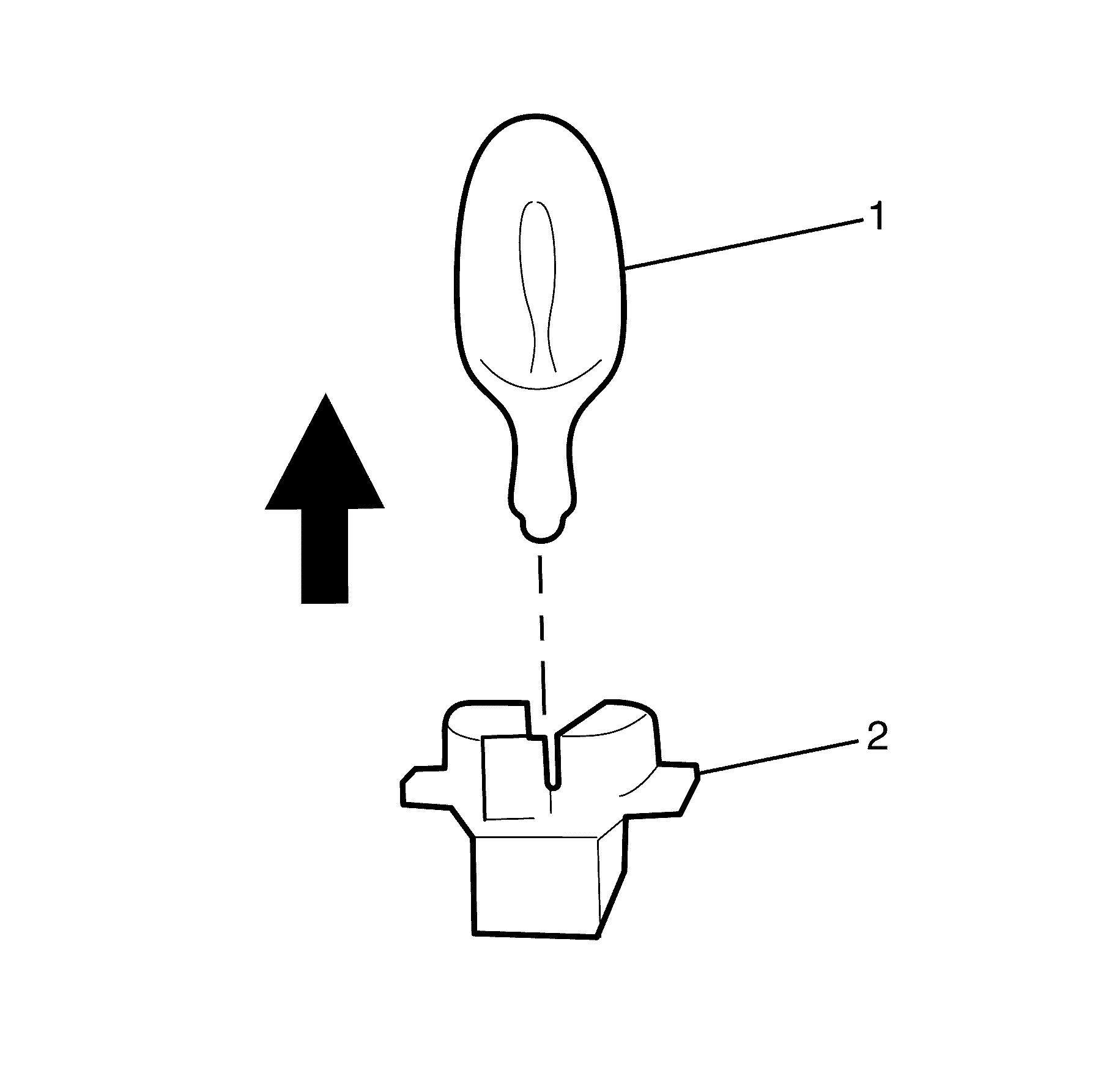

    3. Fig 2: Identifying Dome Lamp Bulb & Socket
    GM1946890Courtesy of GENERAL MOTORS CORP.
  3. Remove the dome lamp bulb (1) by gently pulling from the dome lamp bulb socket (2).
