Installation Procedure

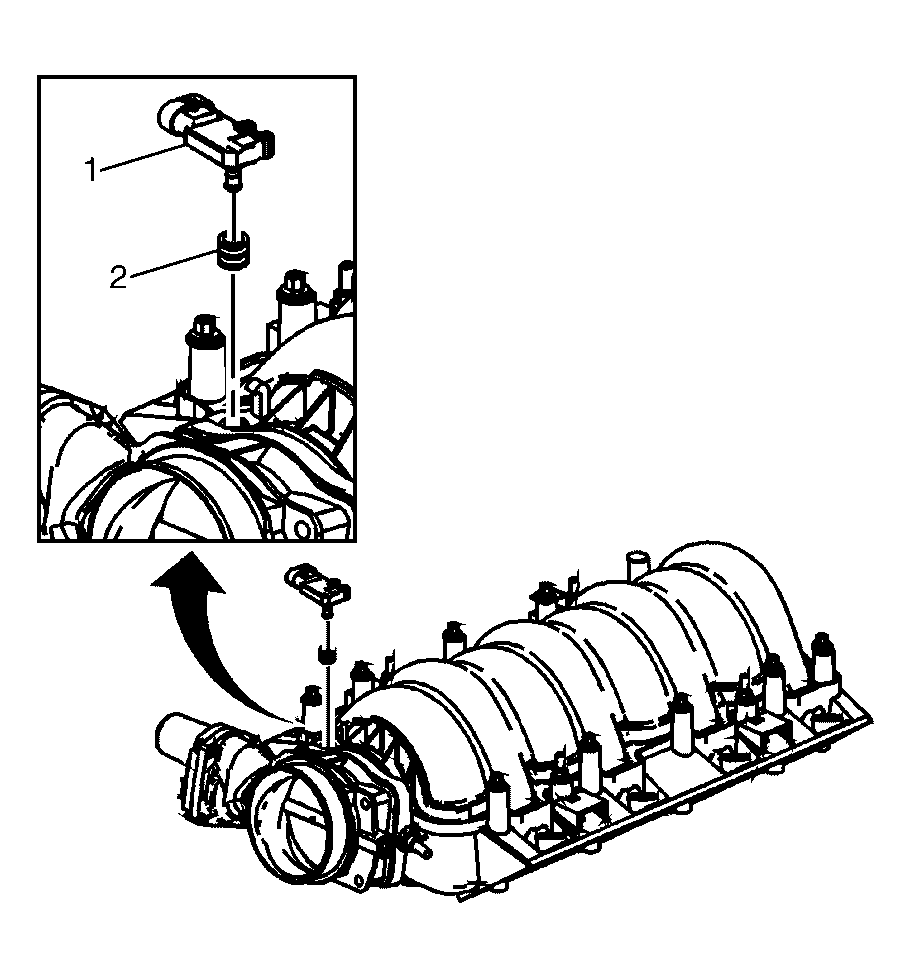

    Fig 1: Identifying MAP Sensor & Seal
    GM1950739Courtesy of GENERAL MOTORS CORP.
  1. Install the MAP sensor (1) to the intake manifold.

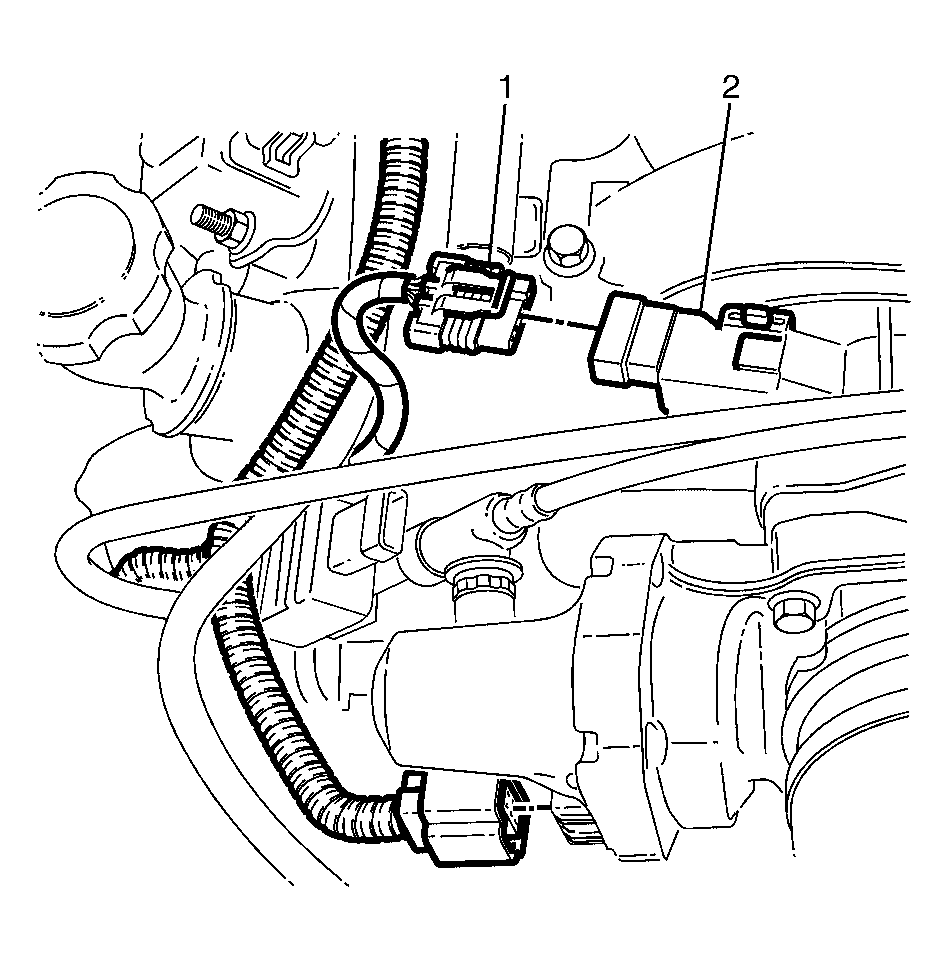

    2. Fig 2: Identifying MAP Sensor & Wiring Harness Connector
    GM1950734Courtesy of GENERAL MOTORS CORP.
  2. Make sure that the MAP sensor (2) is engaged into the MAP sensor retaining clip.
  3. Connect the MAP sensor wiring harness connector (1) to the MAP sensor.
  4. If re-programming is required. Refer to Control Module References .
  5. Install the engine cover. Refer to Engine Cover Replacement .
  6. Install the oil filler cap.
