Connector Locations

Harness Routing Views

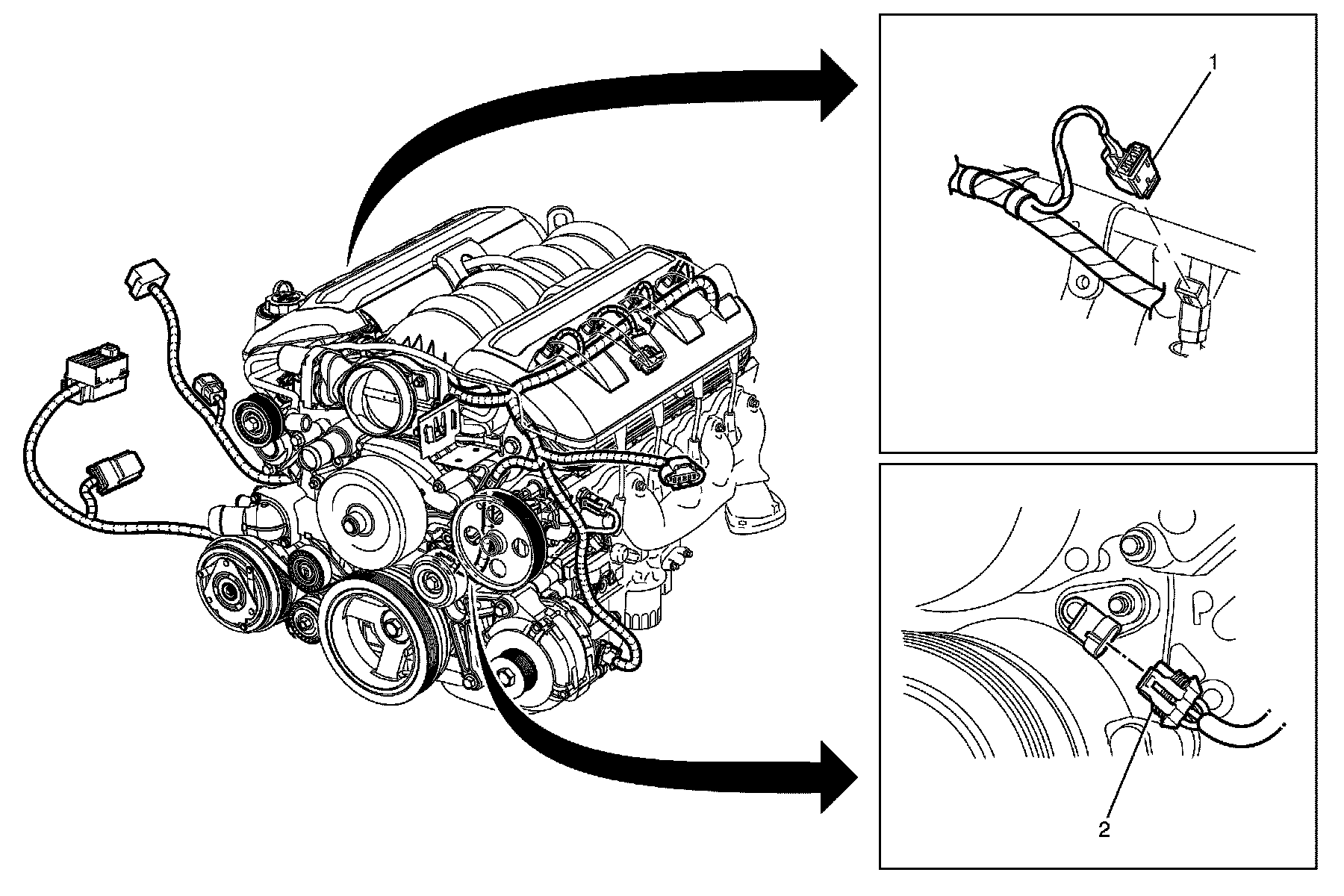

1 - Fuel Injector (Even) Connector - L2
2 - Camshaft Position (CMP) Sensor Connector - B28

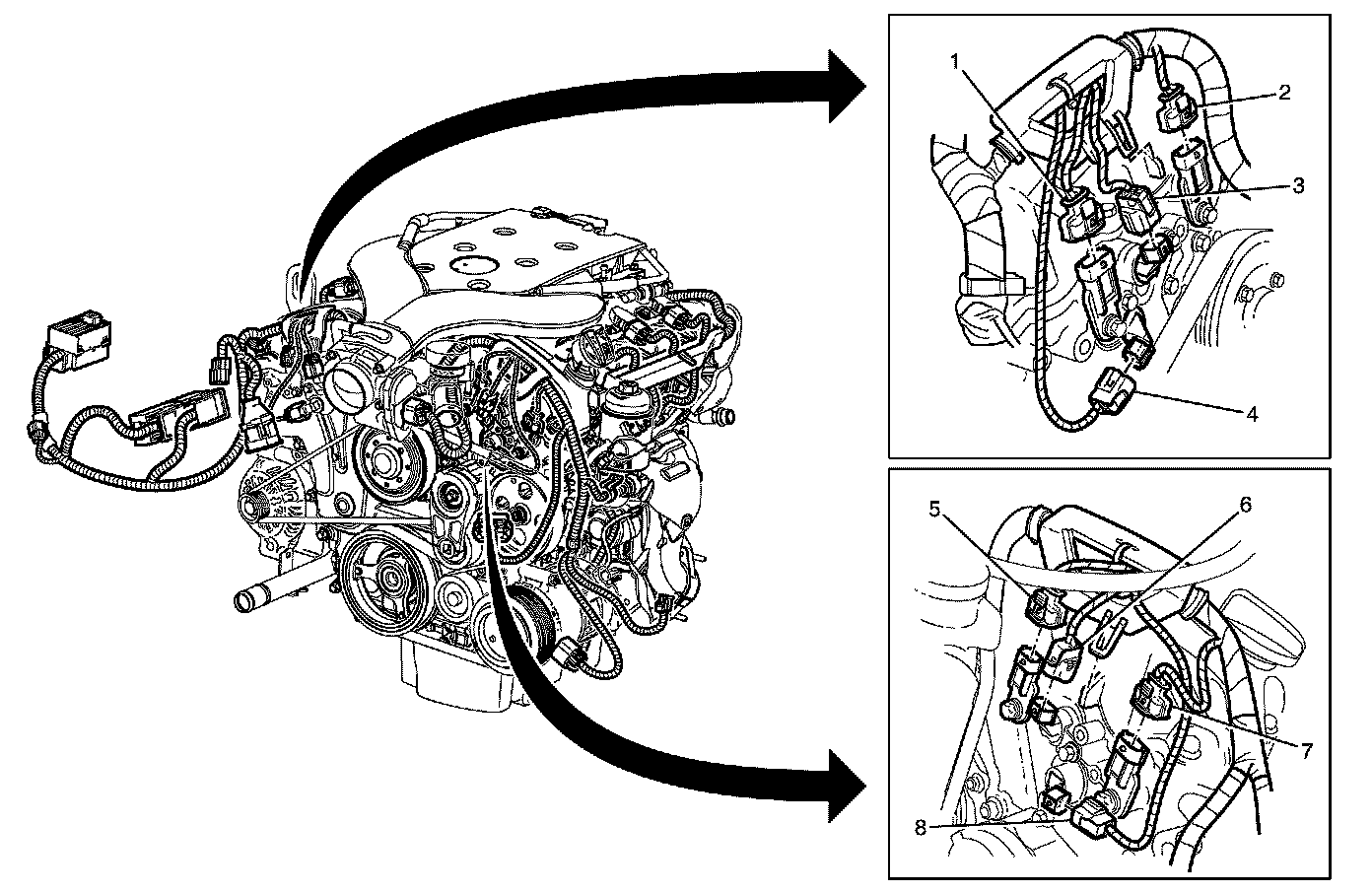

1 - Camshaft Position (CMP) Exhaust Sensor - 1 (ODD BK) Connector - B28
2 - Camshaft Position (CMP) Intake Sensor 1 (ODD BK) Connector - B28
3 - Camshaft Position (CMP) Intake Solenoid - 1 (ODD BK) Connector - Y4
4 - Camshaft Position (CMP) Exhaust Solenoid - 1 (ODD BK) Connector - Y4
5 - Camshaft Position (CMP) Intake Sensor 2 (EVEN BK) Connector - B28
6 - Camshaft Position (CMP) Intake Solenoid - 2 (EVEN BK) Connector - Y4
7 - Camshaft Position (CMP) Exhaust Sensor - 2 (EVEN BK) Connector - B28
8 - Camshaft Position (CMP) Exhaust Solenoid - 2 (EVEN BK) Connector - Y4
