Manifold Pressure/Vacuum Sensor: Locations

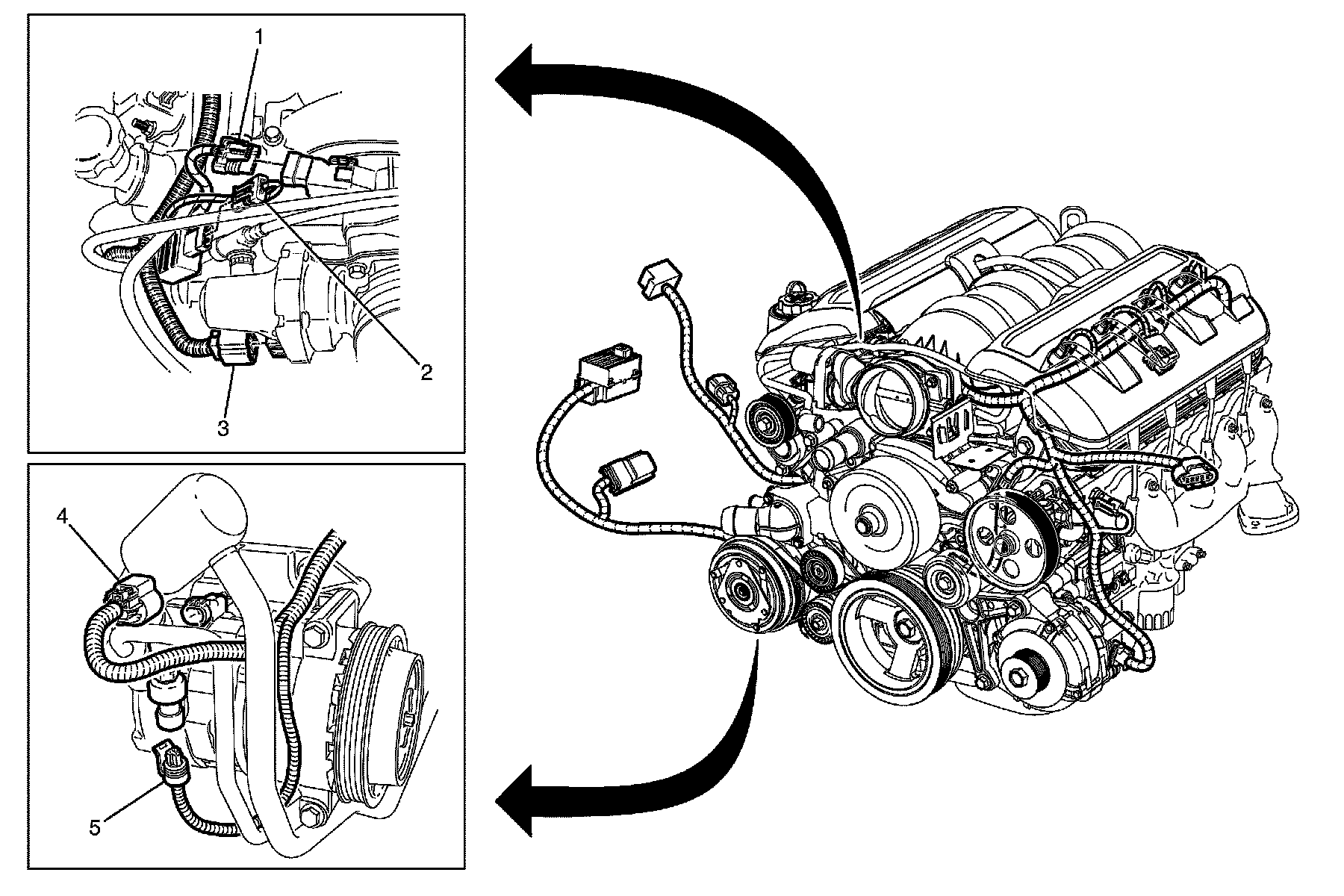

Harness Routing Views




1 - Manifold Absolute Pressure (MAP) Sensor Connector - B67
2 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve Connector - Y123
3 - Throttle Body Connector - Y38
4 - ECVD Solenoid - L7
5 - A/C Refrigerant Pressure Sensor Connector - B18
