Power Window Switch: Service and Repair

Rear Side Door Window Switch Replacement

Removal Procedure

1. Remove the door trim panel. Refer to Rear Side Door Trim Panel Replacement (Service and Repair).

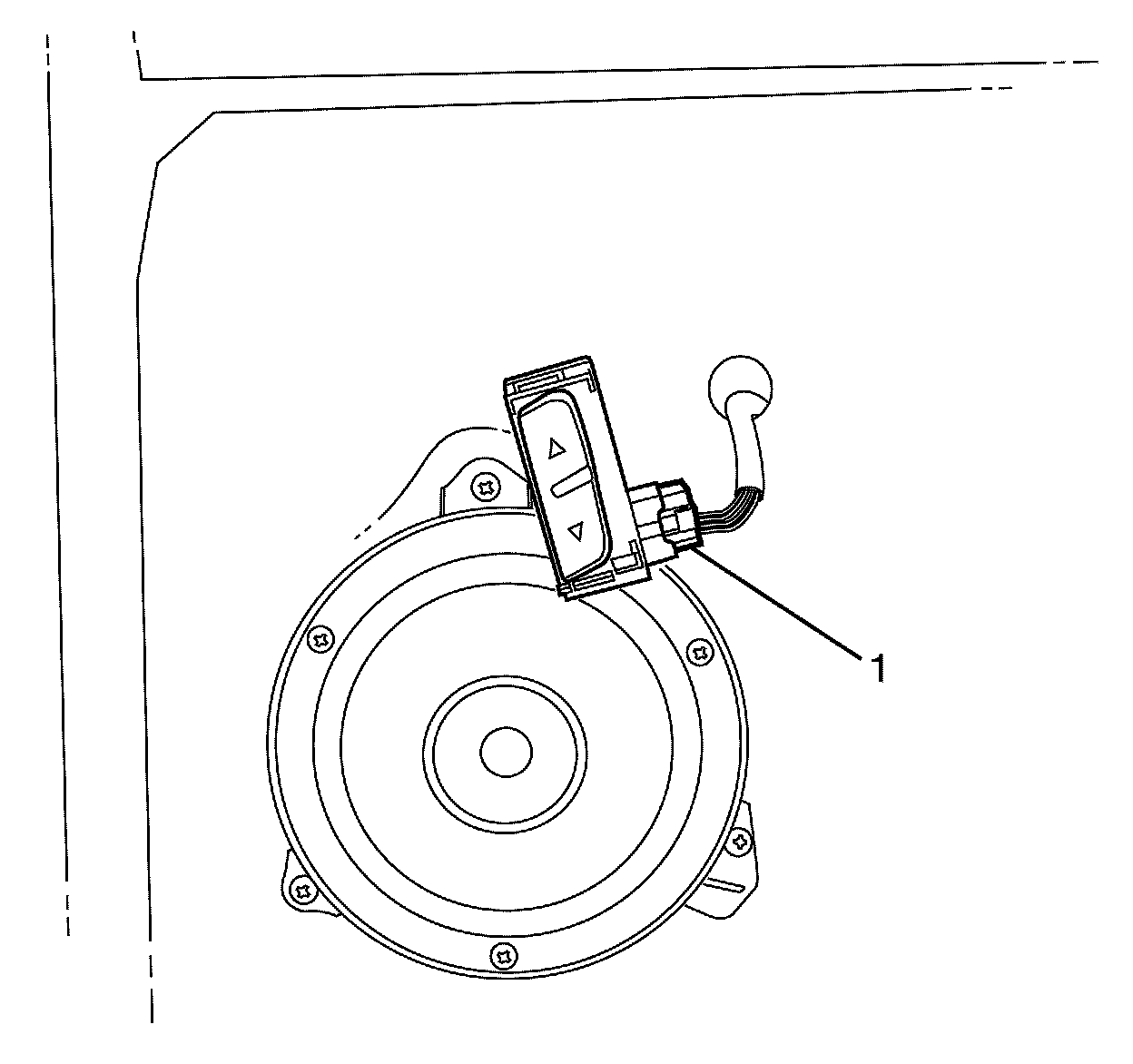

2. Disconnect the power window switch electrical connector (1).
3. Remove the power window switch from the door.

Installation Procedure

1. Position the power window switch to the door (1).




2. Connect the power window switch electrical connector (1).
3. Install the door trim panel. Refer to Rear Side Door Trim Panel Replacement (Service and Repair).
