Wheels/Vehicle Underbody Component Views

Wheels/Vehicle Underbody Component Views

EBCM/BPMV Assembly and Wheel Speed Sensors




1 - Electronic Brake Control Module (EBCM)
2 - Brake Pressure Modulator Valve (BPMV)
3 - Electronic Brake Control Module (EBCM) Connector
4 - Wheel Speed Sensor (WSS) - Left Rear (Right Rear Same)
5 - Wheel Speed Sensor (WSS) - Left Rear Connector (Right Rear Same)
6 - Wheel Speed Sensor (WSS) - Left Front (Right Front Same)
7 - Wheel Speed Sensor (WSS) - Left Front Connector (Right Front Same)

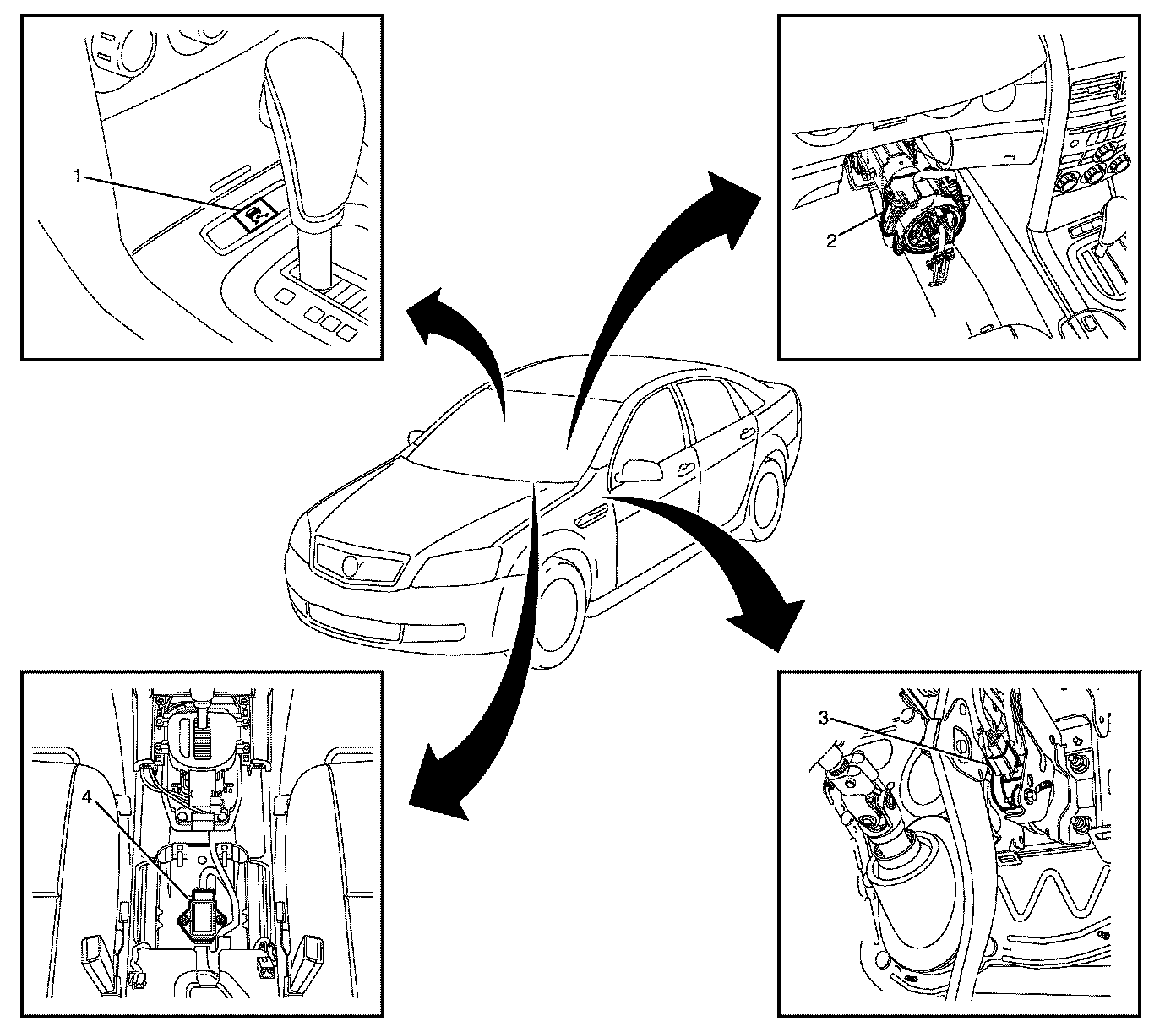

Steering Angle Sensor, Brake Pedal Position Sensor, ESP Switch and Yaw Rate/Lateral Accelerometer Sensor




1 - SRS Coil Assembly (Incorporates the Steering Angle Sensor, SRS Coil and Indicator Cancel Cam Assembly)
2 - ESP Switch
3 - Yaw and Lateral Accelerometer Sensor
4 - Brake Pedal Position (BPP) Sensor
