Electronic Brake Control Module: Locations

Wheels/Vehicle Underbody Component Views

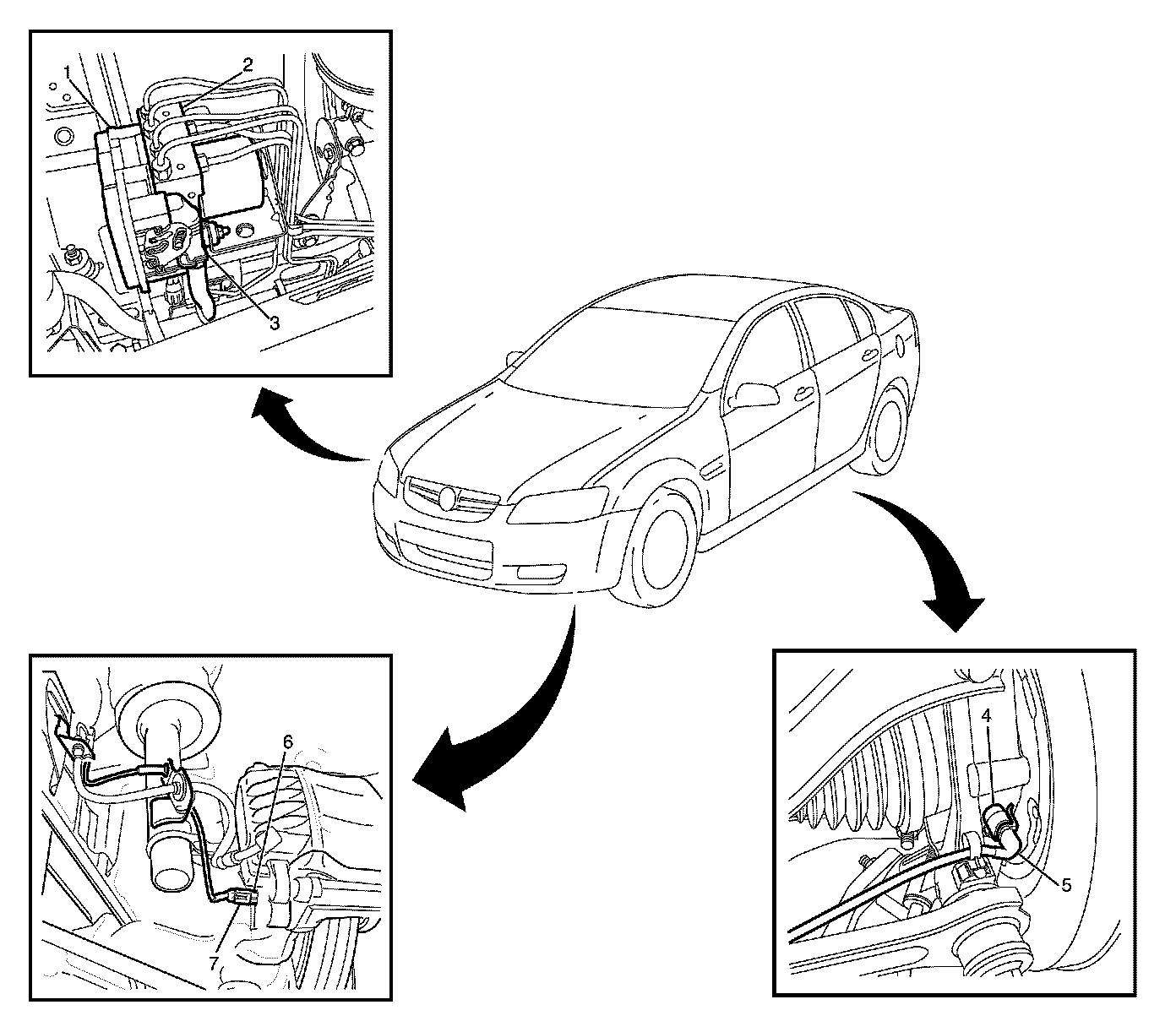

EBCM/BPMV Assembly and Wheel Speed Sensors




1 - Electronic Brake Control Module (EBCM)
2 - Brake Pressure Modulator Valve (BPMV)
3 - Electronic Brake Control Module (EBCM) Connector
4 - Wheel Speed Sensor (WSS) - Left Rear (Right Rear Same)
5 - Wheel Speed Sensor (WSS) - Left Rear Connector (Right Rear Same)
6 - Wheel Speed Sensor (WSS) - Left Front (Right Front Same)
7 - Wheel Speed Sensor (WSS) - Left Front Connector (Right Front Same)
