Connector Locations

Harness Routing Views

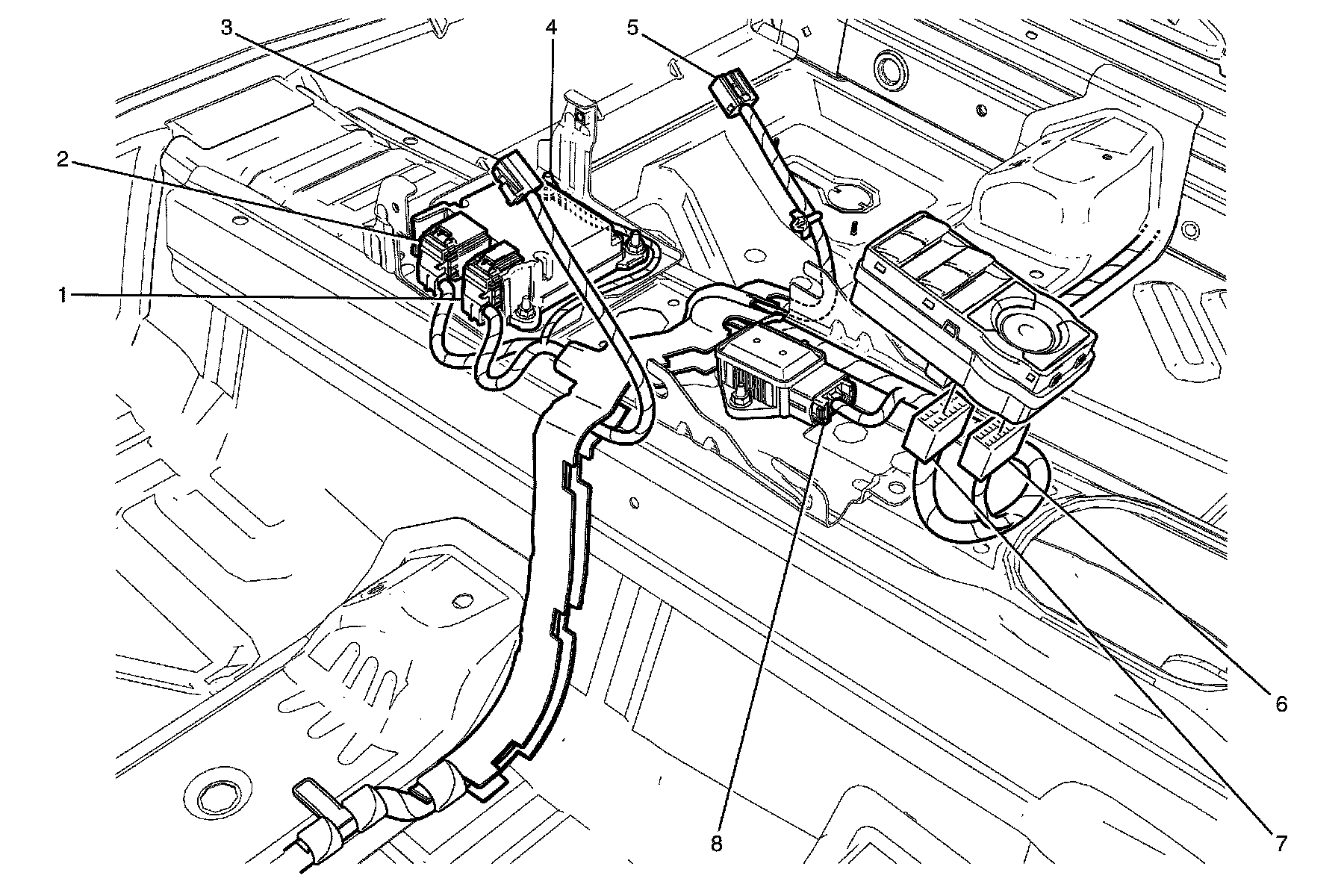

Body Wiring - Center Console




1 - Inflatable Restraint Sensing and Diagnostic Module Connector - A65-X2
2 - Inflatable Restraint Sensing and Diagnostic Module Connector - A65-X1
3 - Accessory Power Outlet Console Connector - X112
4 - Console to Body Wiring Connector - X309
5 - Window / Door lock / Outside Rearview Mirror Switch Connector - S169-X1
6 - Window / Door lock / Outside Rearview Mirror Switch Connector - S169-X2
7 - Yaw Rate and Lateral Acceleration Sensor Connector - B85
8 - SDM Bracket Ground - G308
