Transmission Speed Sensor, A/T




Component Connector End Views

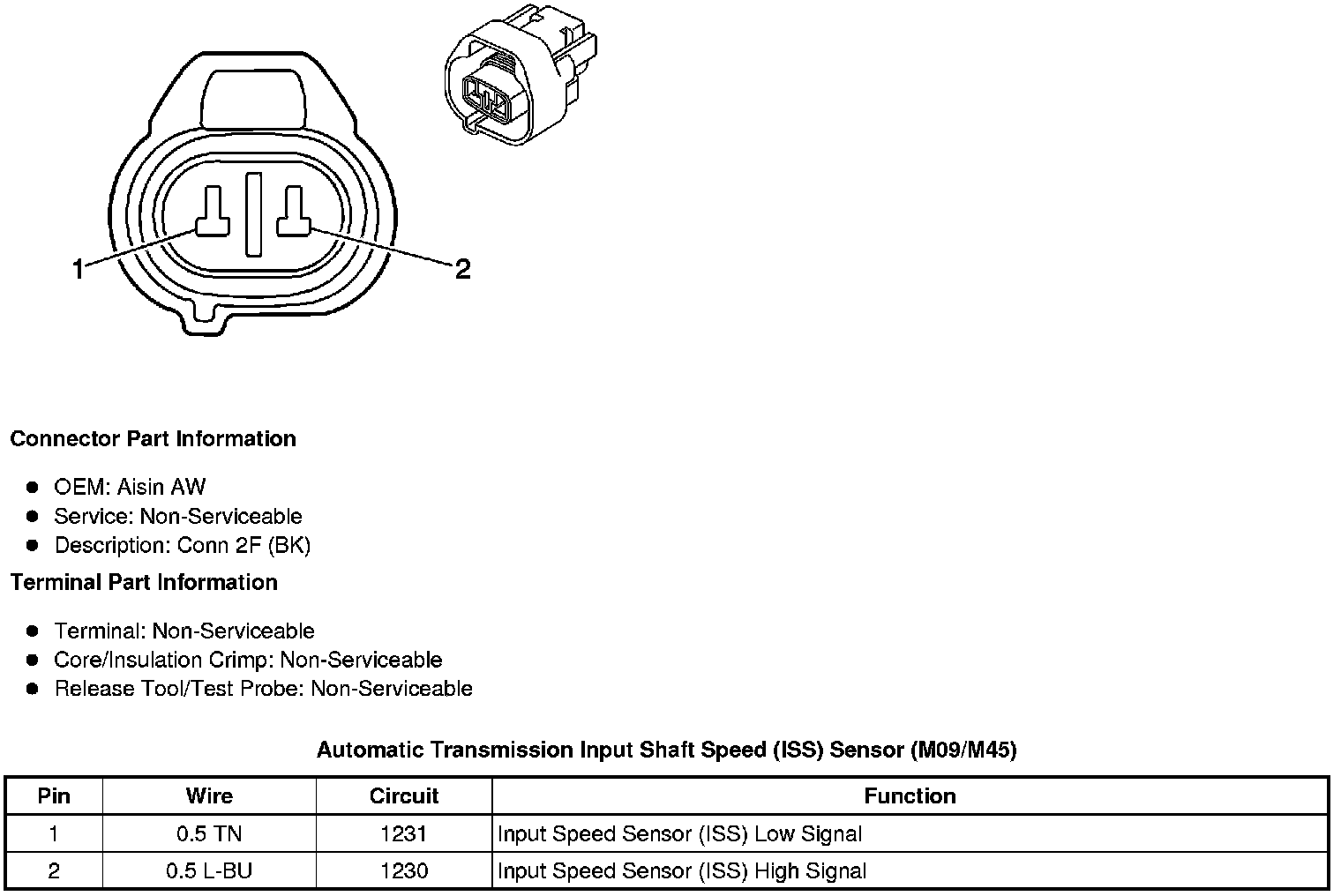

Automatic Transmission Input Shaft Speed (ISS) Sensor (M09/M45)






Automatic Transmission Input Shaft Speed (ISS) Sensor (MH2/MH4)

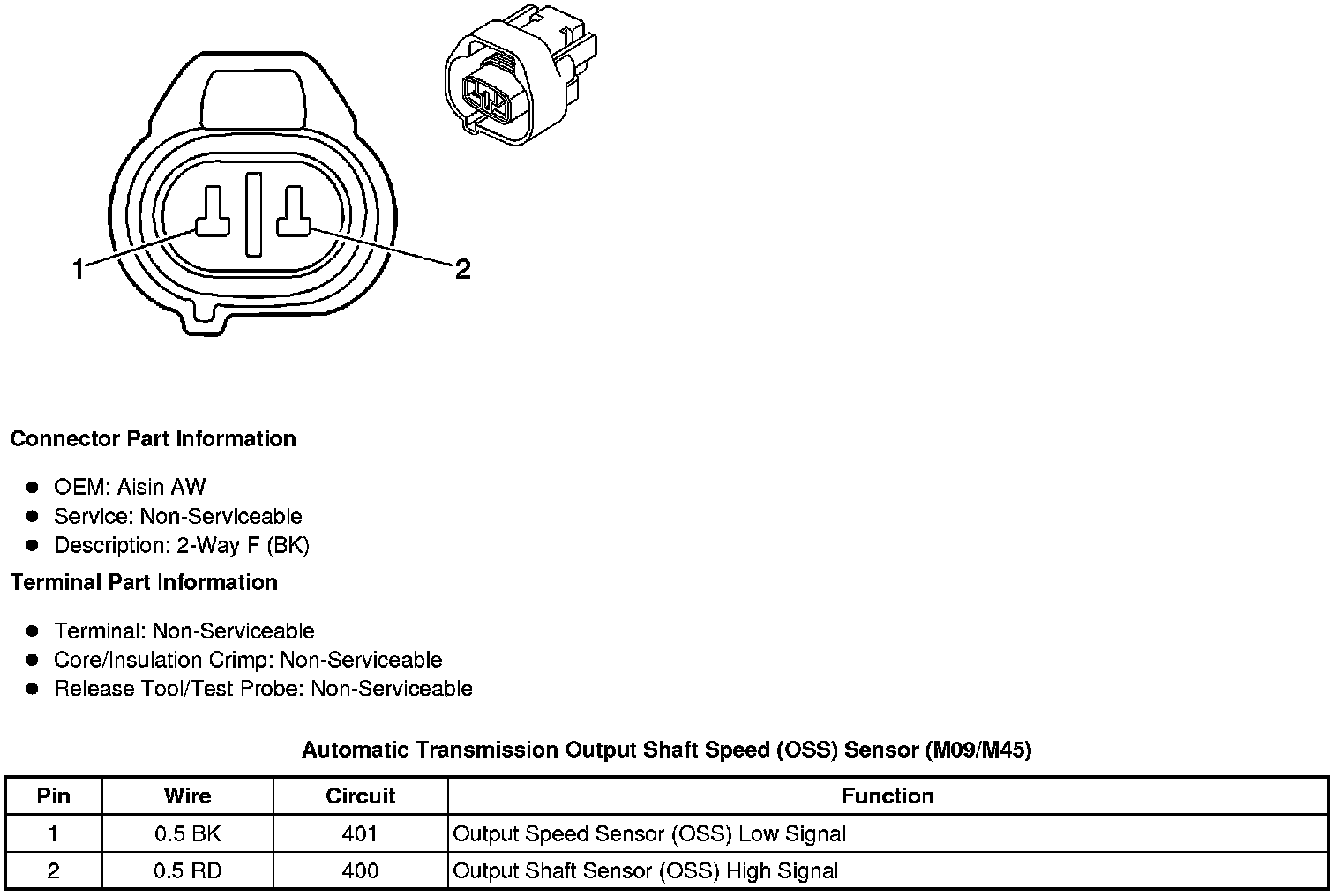

Automatic Transmission Output Shaft Speed (OSS) Sensor (M09/M45)






Automatic Transmission Output Shaft Speed (OSS) Sensor (MH2/MH4)
