Lamp Views




Harness Routing Views

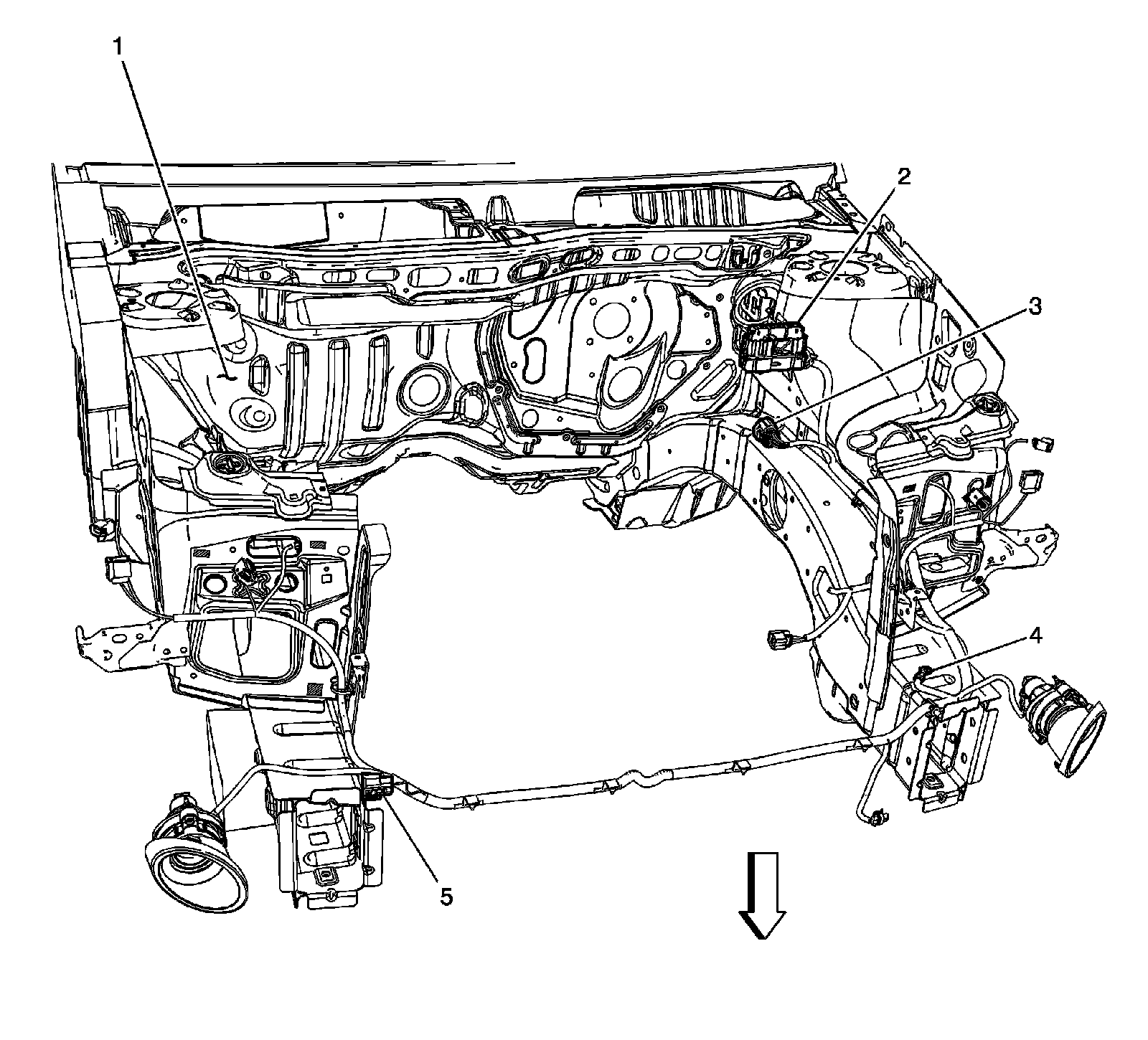

Forward Lamp Harness (Pontiac)




1 - Dash Panel
2 - Fuse Block - Underhood X3 Connector
3 - X101
4 - G101
5 - X108 (LY7)
