Inflatable Restraint Roof Side Rail Module Replacement - Front

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 GMC Savana Special, 2009 GMC Savana Camper Special, 2009 GMC Savana, 2009 Chevrolet RV Cutaway, and 2009 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

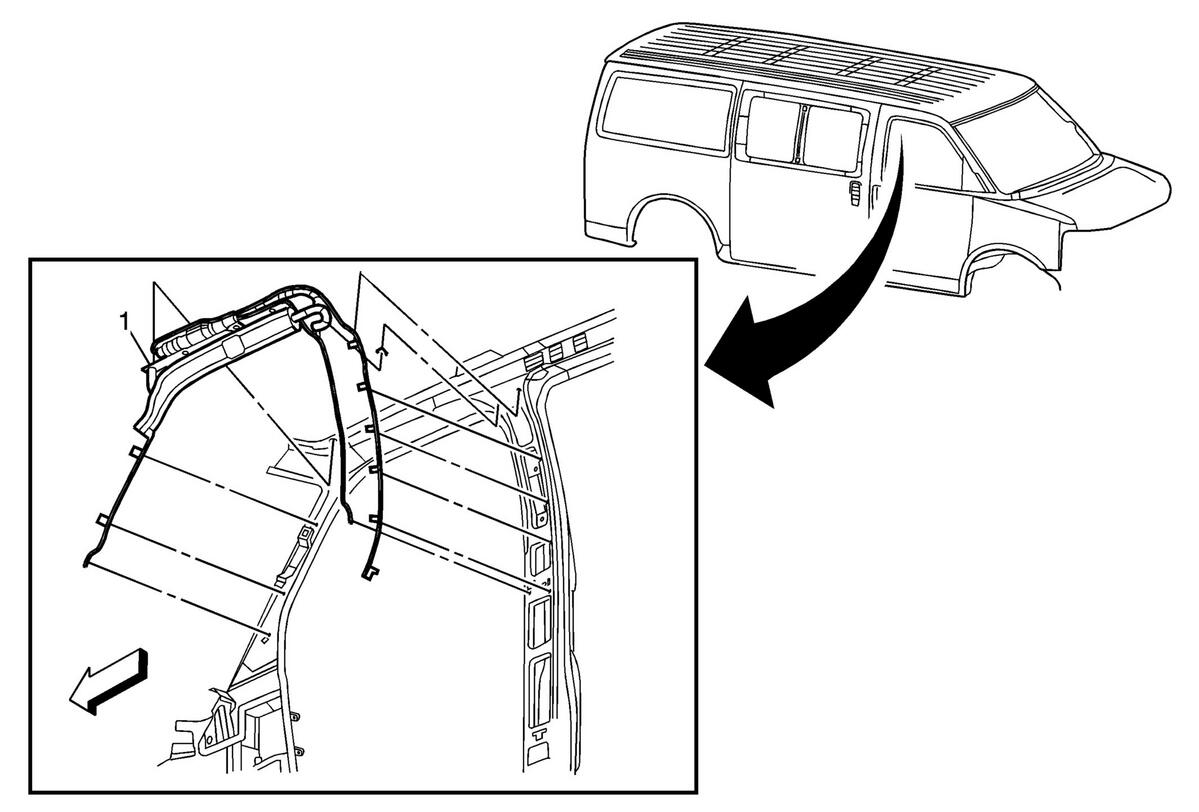

Fig 1: Roof Side Rail Inflatable Restraint Module - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure WARNING: In order to prevent SIR deployment, personal injury, or unnecessary SIR system repairs, do not strike the door or the door pillar in the area of the side impact sensor (SIS). Turn OFF the ignition and remove the key when performing service in the area of the SIS. WARNING: Refer to SIR Warning . WARNING: Refer to SIR Inflator Module Handling and Storage Warning . Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the front headliner assembly. Refer to Headlining Front Trim Panel Replacement .
1	Front Roof Side Rail Inflatable Restraint Module Assembly CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. Loosen the roof side rail inflatable restraint module bolts. (Qty: 7) Remove the push in retainers (Qty: 10) securing the roof side rail inflatable restraint module to the vehicle. Remove the roof side rail inflatable restraint module from the vehicle. Tip: The bolts and the push in fasteners are an integral part of the module and should remain with the module. Tighten: 9 N.m (80 lb in)

Callout

Component Name

Preliminary Procedure

WARNING: In order to prevent SIR deployment, personal injury, or unnecessary SIR system repairs, do not strike the door or the door pillar in the area of the side impact sensor (SIS). Turn OFF the ignition and remove the key when performing service in the area of the SIS.

WARNING: Refer to SIR Warning .

WARNING: Refer to SIR Inflator Module Handling and Storage Warning .

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the front headliner assembly. Refer to Headlining Front Trim Panel Replacement .

Front Roof Side Rail Inflatable Restraint Module Assembly

CAUTION: Refer to Fastener Caution .

Procedure

Disconnect the electrical connector.
Loosen the roof side rail inflatable restraint module bolts. (Qty: 7)
Remove the push in retainers (Qty: 10) securing the roof side rail inflatable restraint module to the vehicle.
Remove the roof side rail inflatable restraint module from the vehicle.

Tip: The bolts and the push in fasteners are an integral part of the module and should remain with the module.

Tighten: 9 N.m (80 lb in)
