Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 GMC Savana Special, 2009 GMC Savana Camper Special, 2009 GMC Savana, 2009 Chevrolet RV Cutaway, and 2009 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Engine Protection Shield Mounting Bolts
    GM890567Courtesy of GENERAL MOTORS CORP.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the engine protection shield mounting bolts, light duty shown, heavy duty similar.

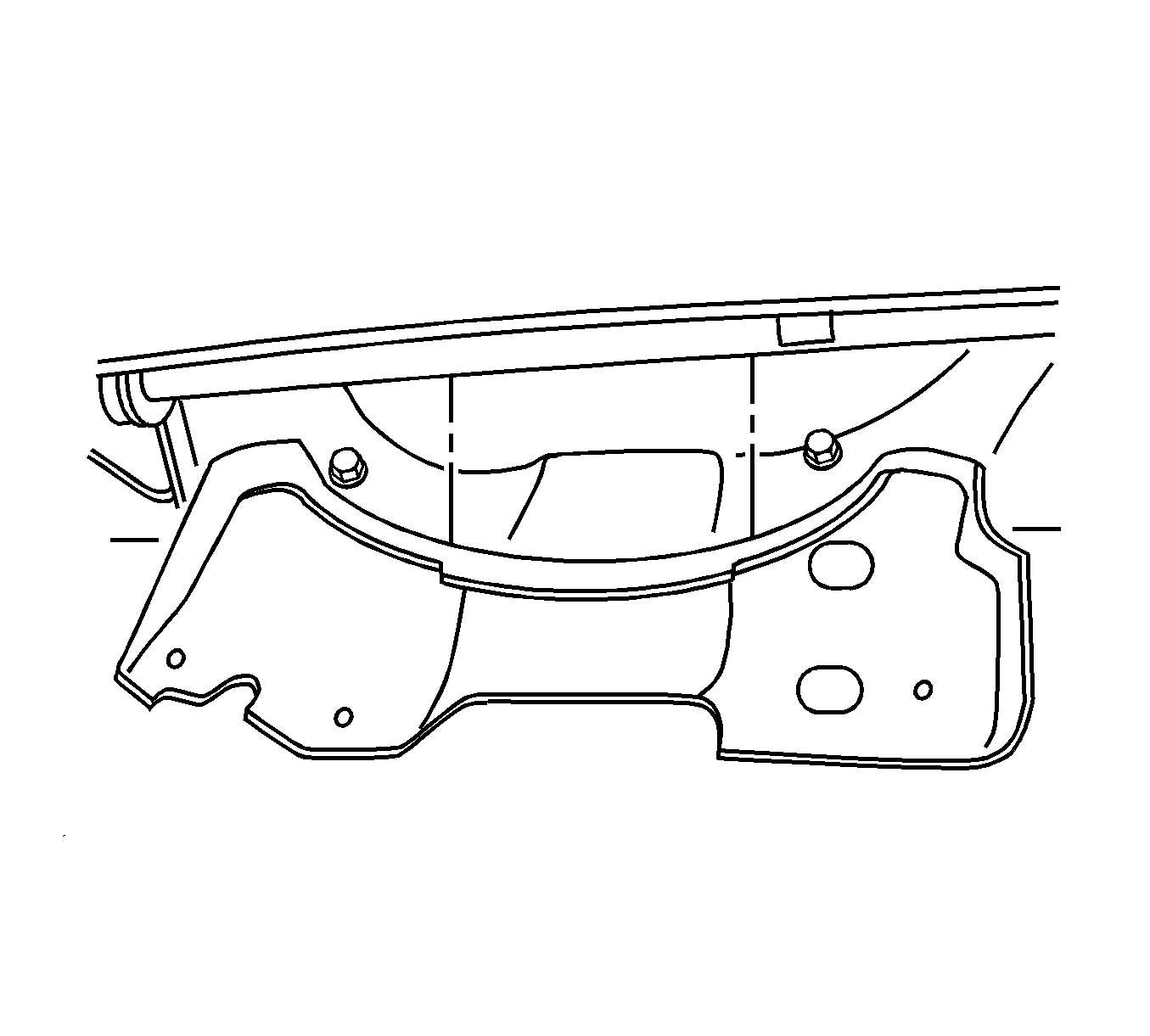

    3. Fig 2: Engine Protection Shield
    GM890563Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine protection shield.
