Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Savana and 2009 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Knock Sensor & Bolt
    GM1877020Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Position the knock sensor to the engine block and install the bolt and tighten to 25 N.m (18 lb ft).

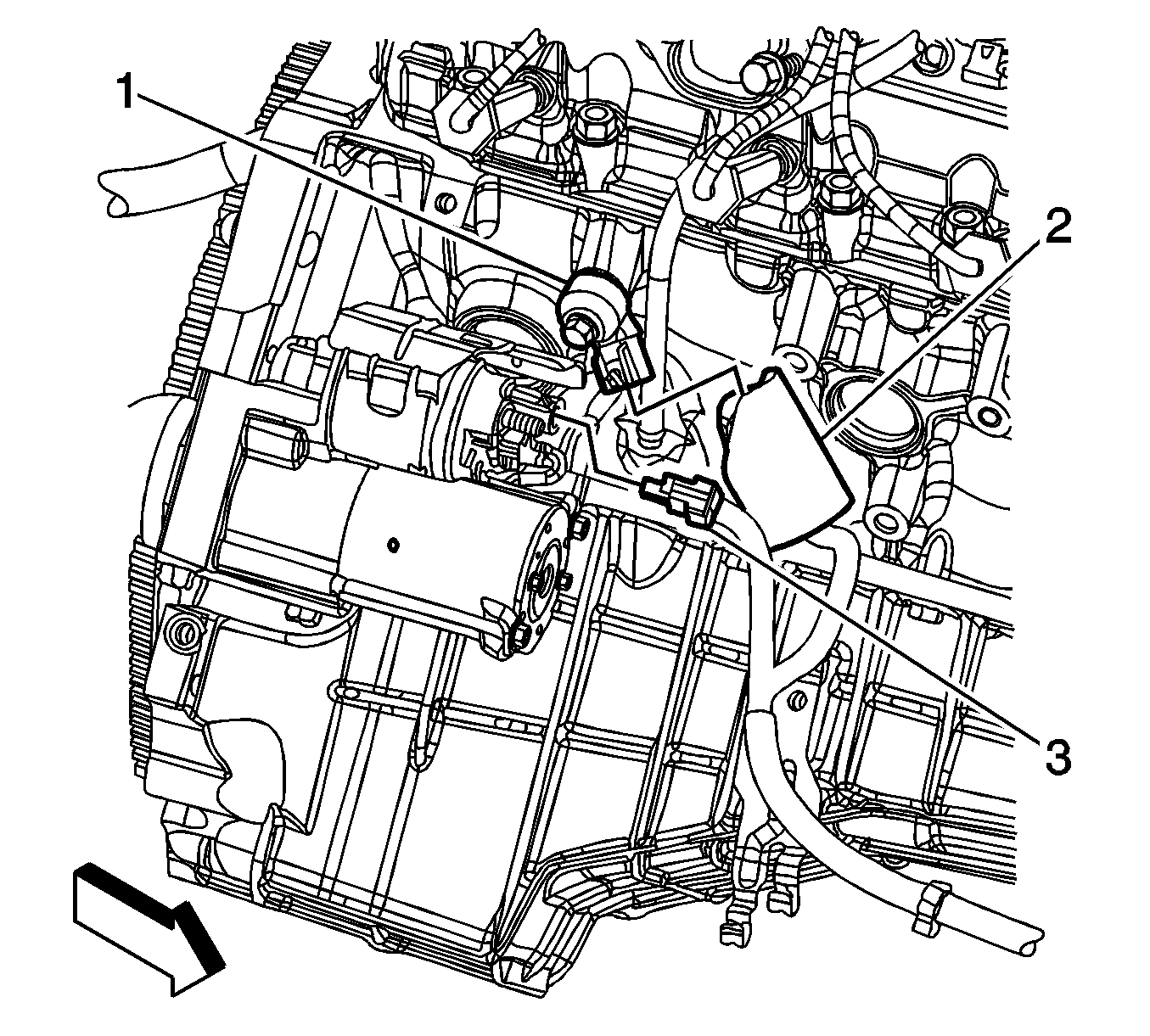

    2. Fig 2: Identifying Engine Wiring Harness Electrical Connector At Knock Sensor
    GM1950126Courtesy of GENERAL MOTORS CORP.
  2. Connect the engine wiring harness electrical connector to the knock sensor (1).
  3. Position the knock sensor sleeve (2) up and over the knock sensor.
  4. Lower the vehicle.
