Installation Procedure

WARNING: This page is about a different car, the 2006 Pontiac Torrent and 2006 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

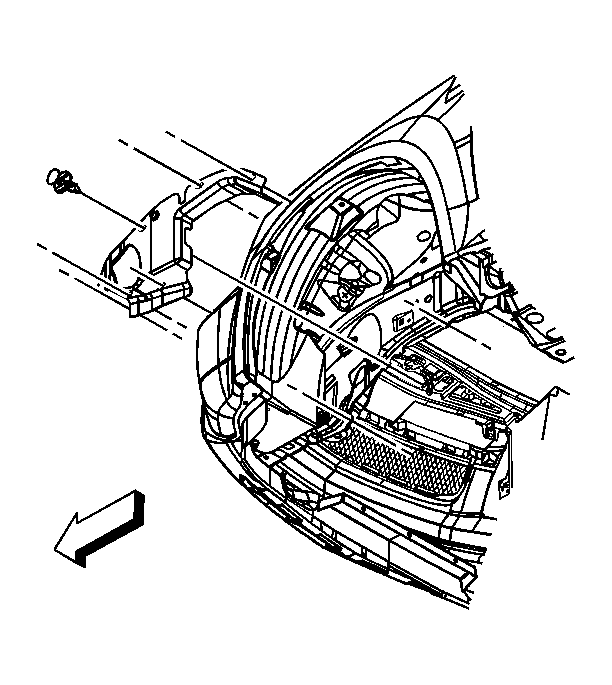

    Fig 1: View Of Engine Splash Shield
    GM1360922Courtesy of GENERAL MOTORS CORP.
  1. Position the splash shield to the vehicle by sliding rearward and aligning holes.
  2. Install the splash shield to structure push-in retainers.
