Fuel Tank Pressure Sensor: Locations




Wheels/Vehicle Underbody Component Views

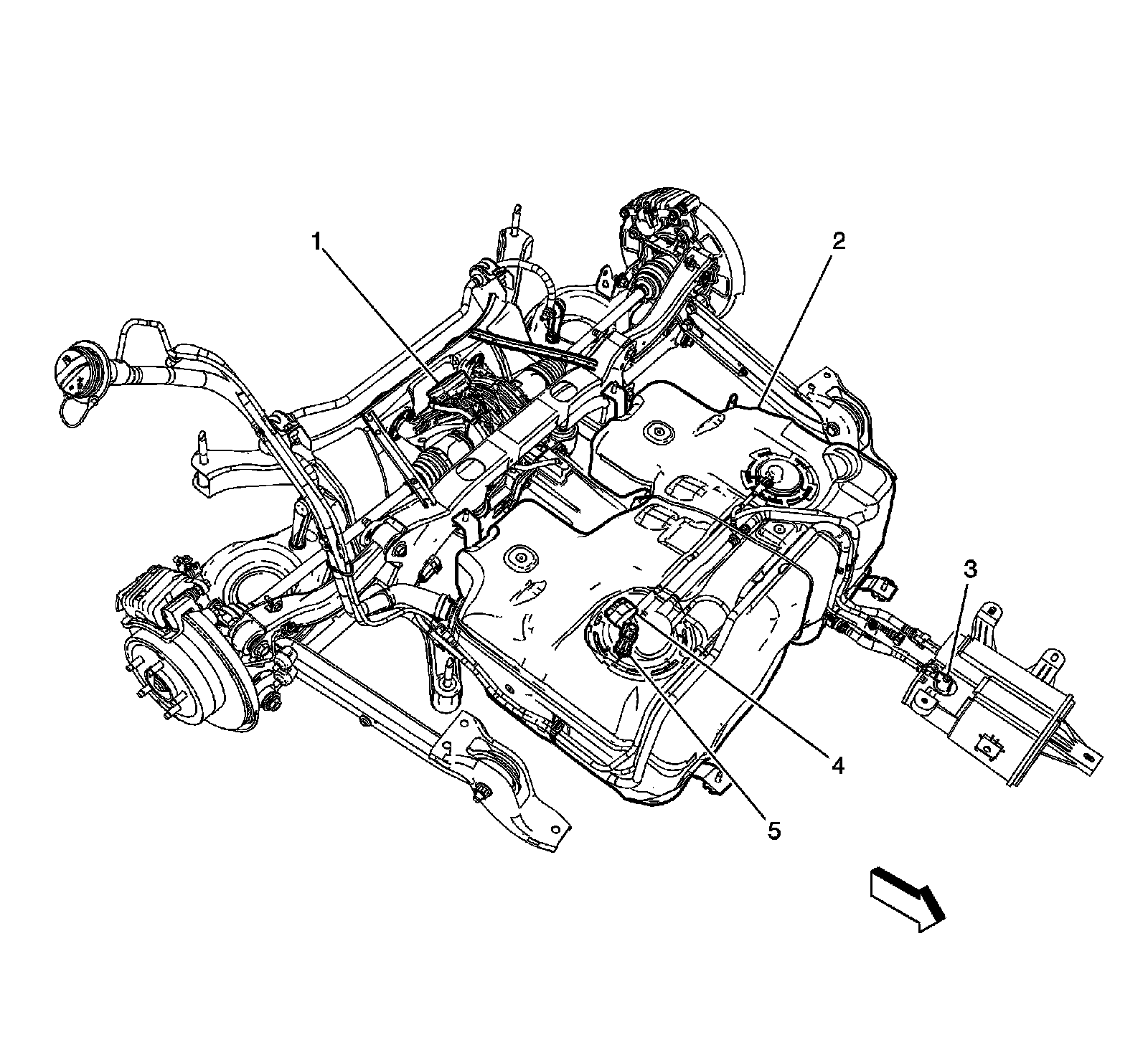

Rear Axle and Fuel Tank Components




1 - Rear Differential Clutch Control Module (MH2/M09)
2 - Fuel Tank
3 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
4 - Fuel Pump and Sender Assembly
5 - Fuel Tank Pressure (FTP) Sensor
