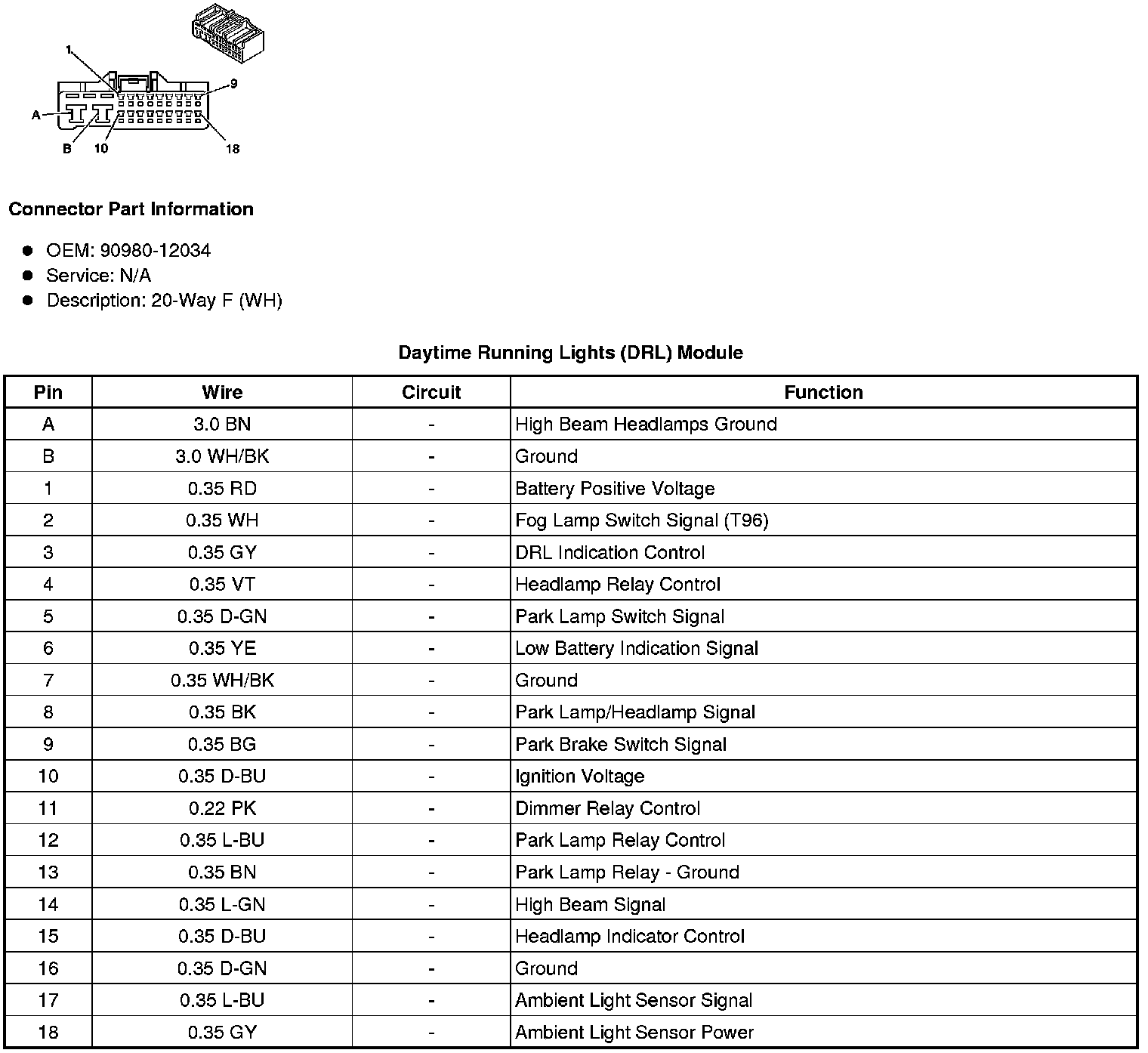

Daytime Running Lamp Control Unit




Component Connector End Views

Daytime Running Lights (DRL) Module
