Body Control Systems




Body Control System Schematics

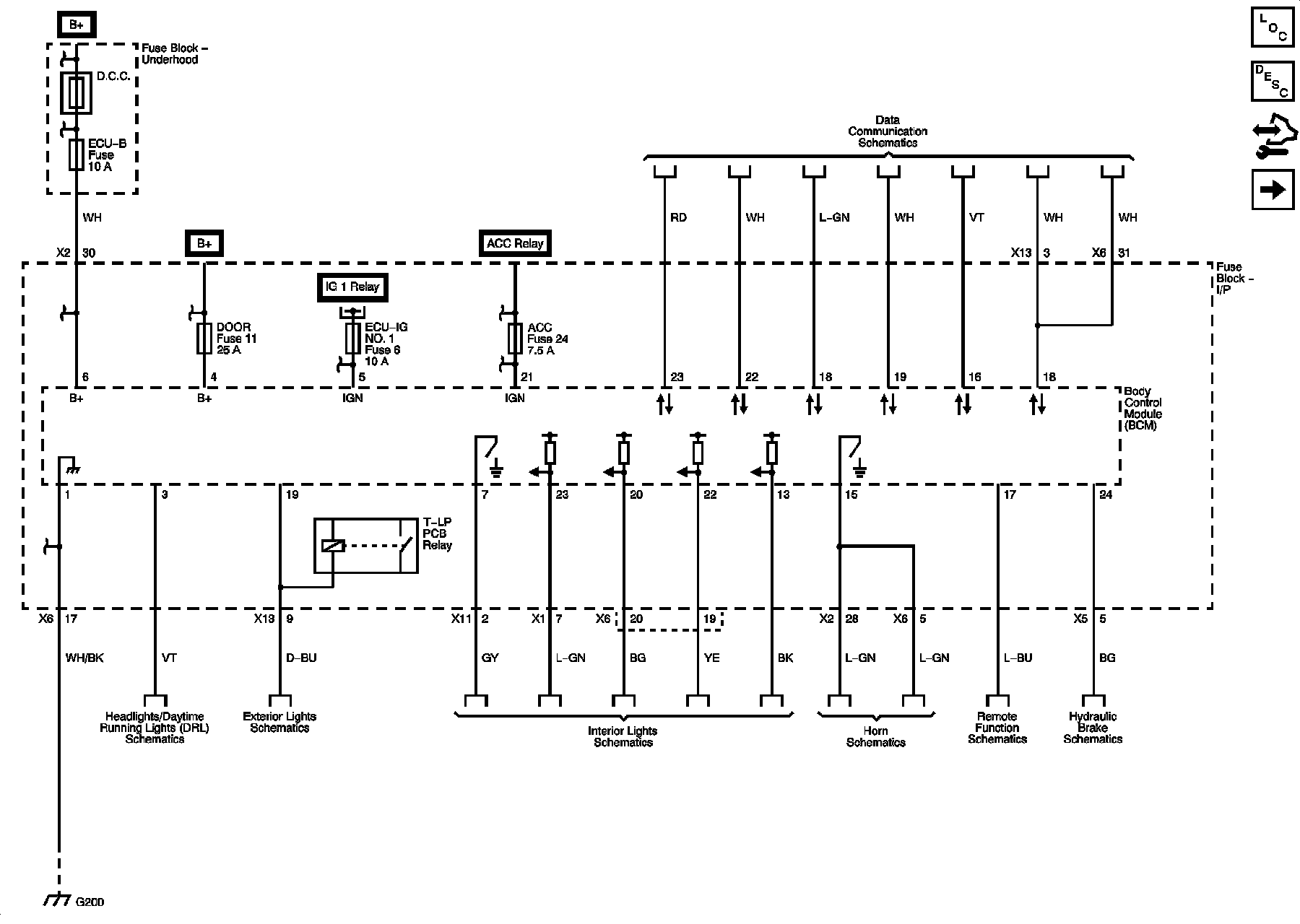

Power, Ground, Serial Data, and Subsystem References (1 of 2)





Subsystem References (2 of 2)
