Accumulator Component View

Disassembled Views

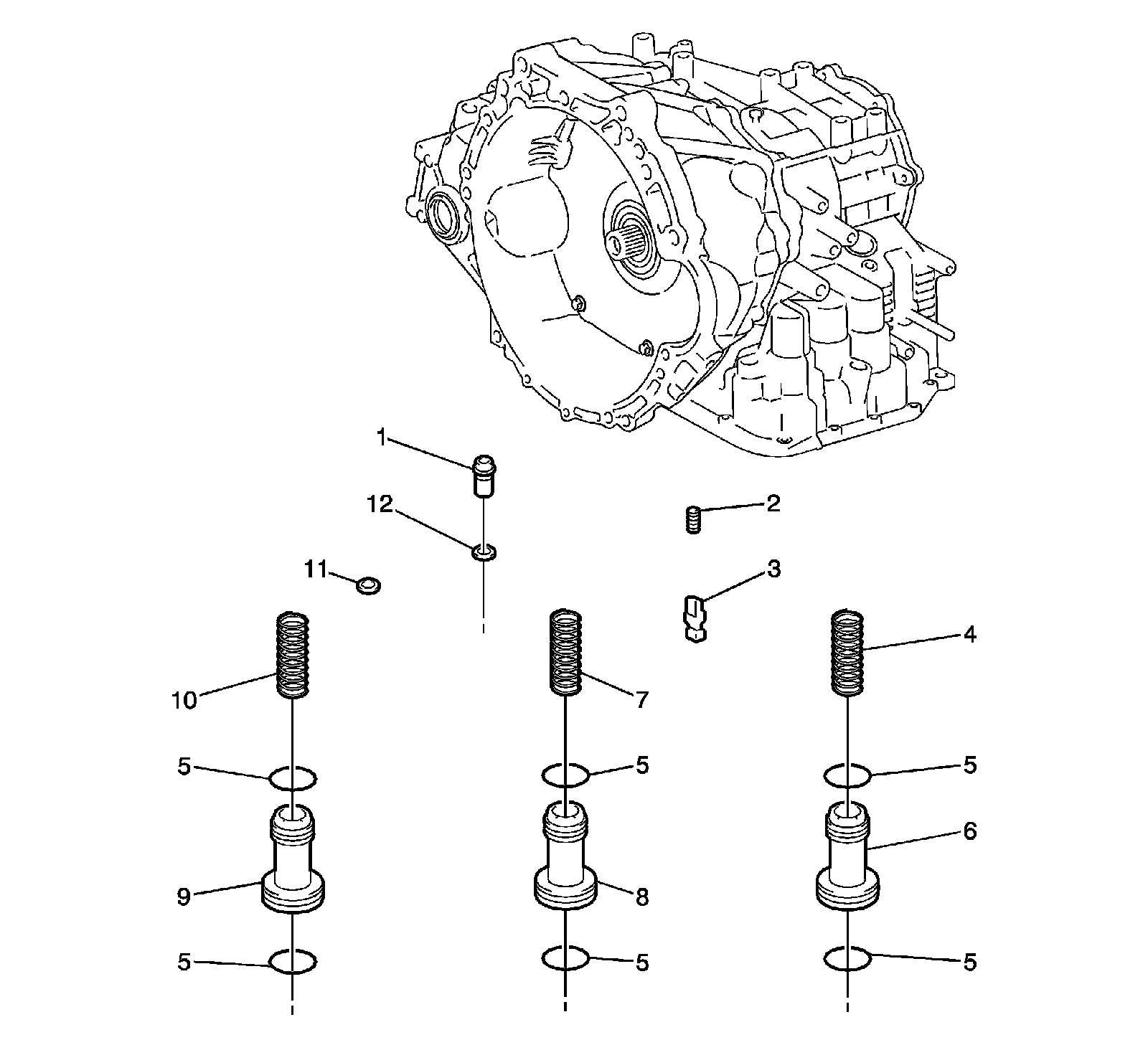

Accumulator Component View




1 - Brake Drum Gasket
2 - Check Ball Body Compression Spring
3 - Check Ball Body
4 - C-2 Accumulator Piston Compression Spring
5 - O-ring
6 - C-2 Accumulator Piston
5 - O-ring
7 - C-3 Accumulator Piston Compression Spring
5 - O-ring
8 - C-3 Accumulator Piston
5 - O-ring
5 - O-ring
9 - B-2 Accumulator Piston
5 - O-ring
10 - B-2 Accumulator Piston Compression Spring
11 - Transaxle Case 2nd Brake Gasket
12 - Transaxle Case Gasket
