Rear Transaxle Cover Assembly

Disassembled Views

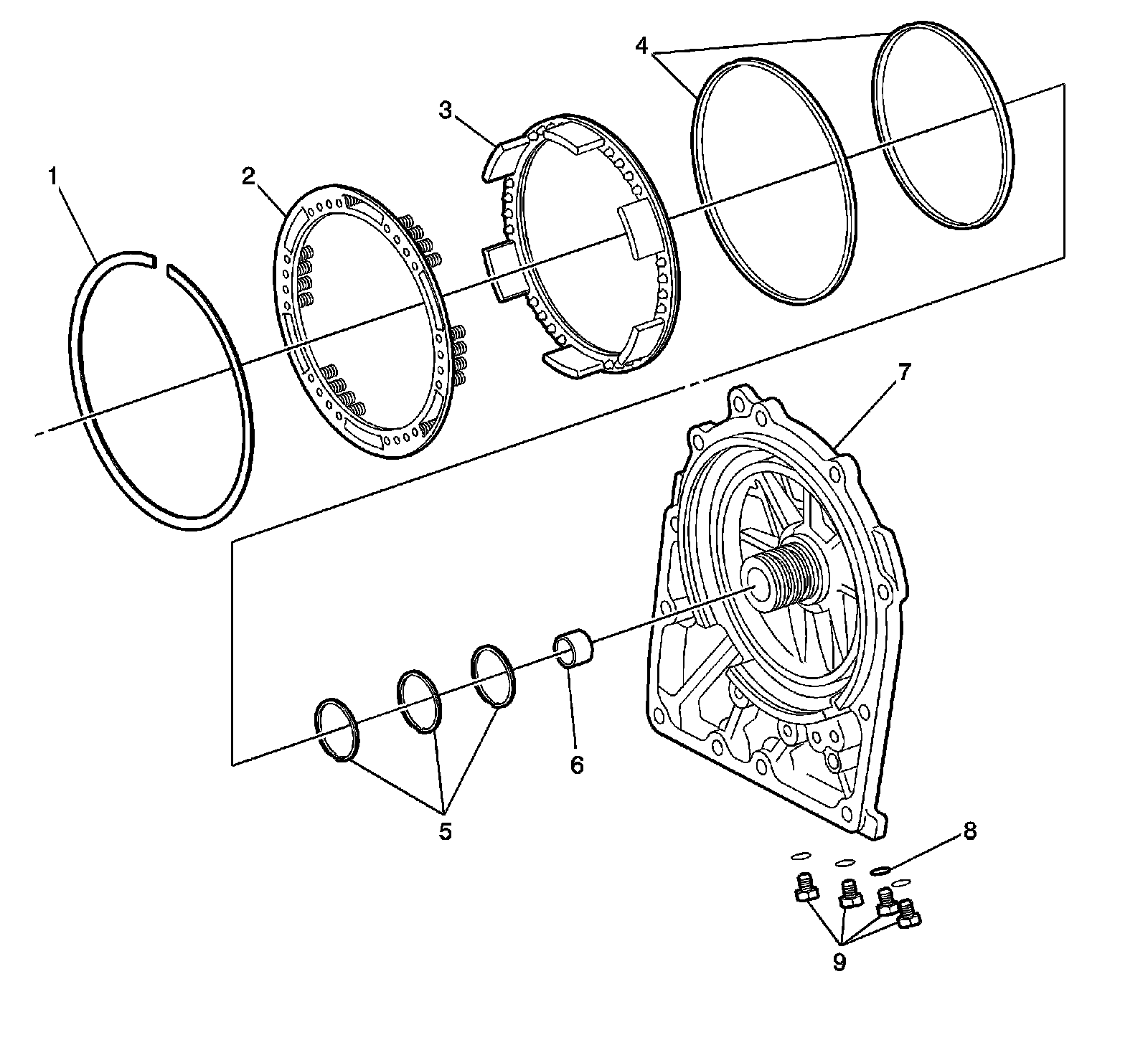

Rear Transaxle Cover Assembly




1 - Snap Ring
2 - Overdrive Brake Return Spring Sub-Assembly
3 - 2nd Coast and Overdrive Brake Piston
4 - 2nd Coast and Overdrive O-ring
5 - Clutch Drum Oil Seal Ring
6 - Rear Transaxle Cover Needle Roller Bearing
7 - Rear Transaxle Cover
8 - O-ring
9 - Rear Transaxle Cover Plug
