Transmission Plug Locations

Disassembled Views

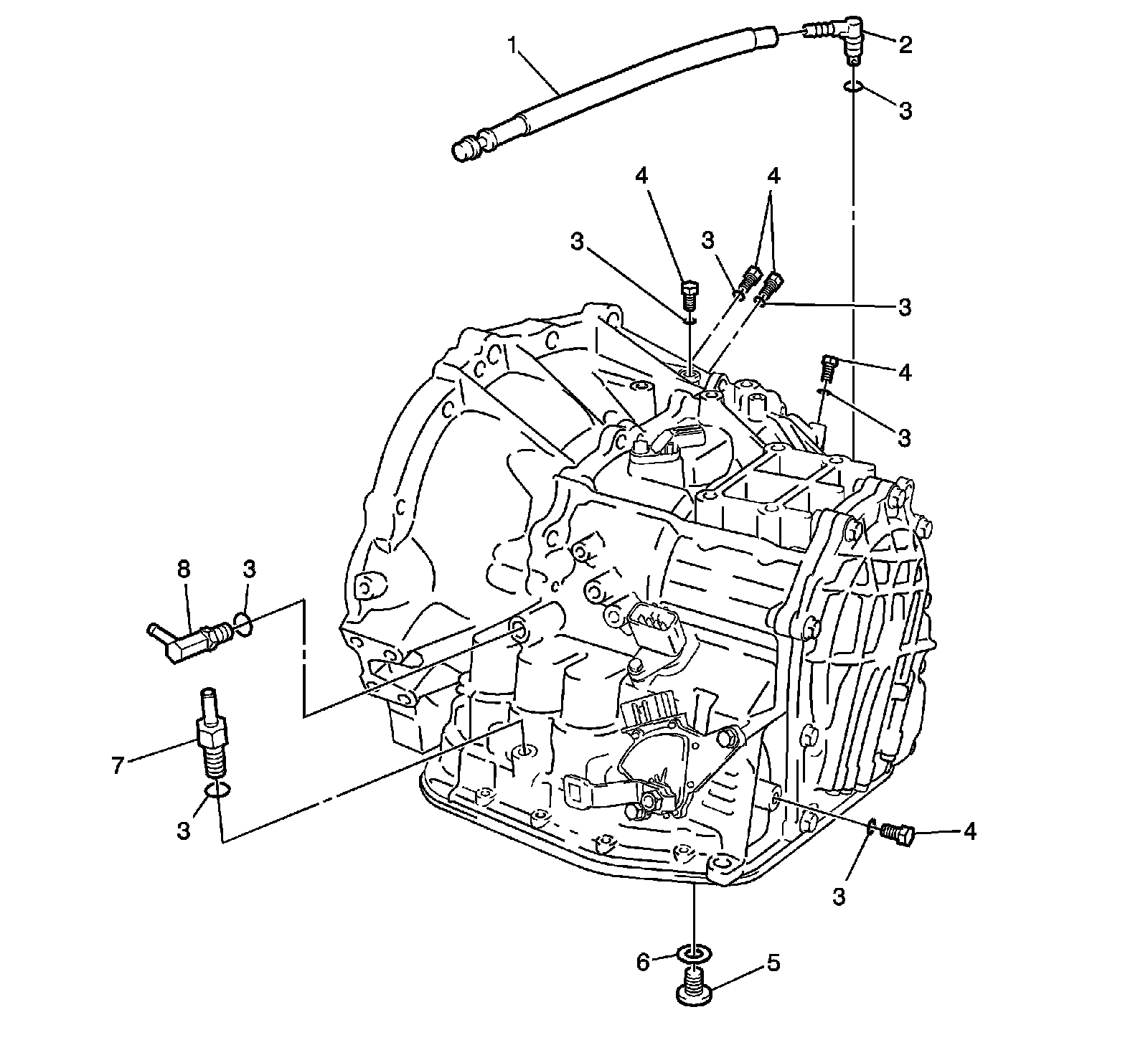

Transmission Plug Locations




1 - Breather Plug Hose
2 - Breather Plug
3 - O-ring
4 - No. 1 Transaxle Case Plug
3 - O-ring
4 - No. 1 Transaxle Case Plug
3 - O-ring
3 - O-ring
4 - No. 1 Transaxle Case Plug
3 - O-ring
3 - O-ring
3 - O-ring
3 - O-ring
4 -
5 - Drain Plug
6 - Gasket
7 - Oil Cooler Tube Union
8 - Oil Cooler Tube Union
