Transfer Case

Transfer Case Disassembled View

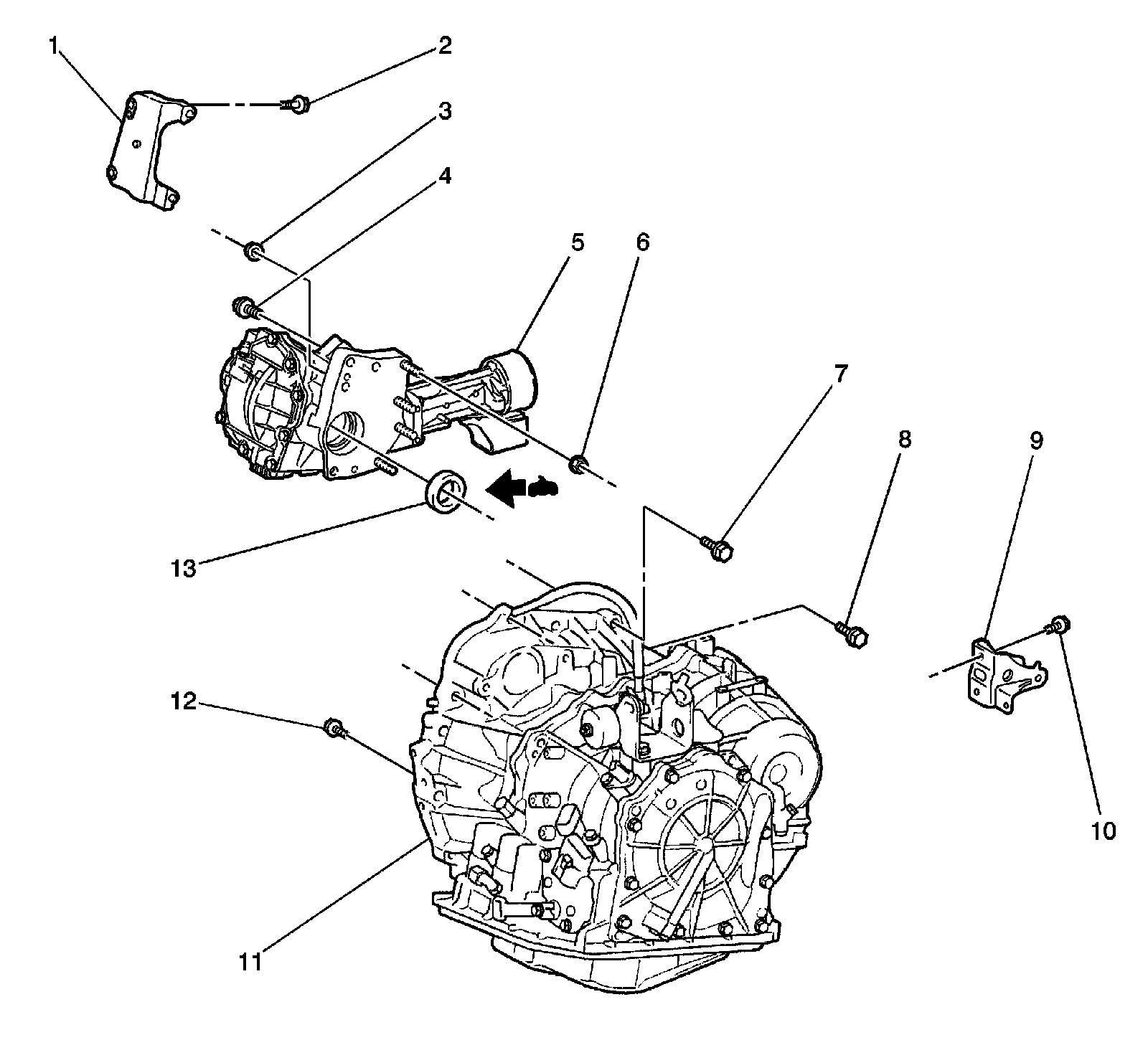

Transfer Case Front Oil Seal Components




1 - Transfer Stiffener Plate RH
2 - Bolt
3 - Nut
4 - Bolt
5 - Transfer Assembly
6 - Nut
7 - Bolt
8 - Bolt
9 - Engine Mounting Bracket RR
10 - Bolt
11 - Automatic Transaxle Assembly
12 - Bolt
13 - Transfer Case Front Oil Seal

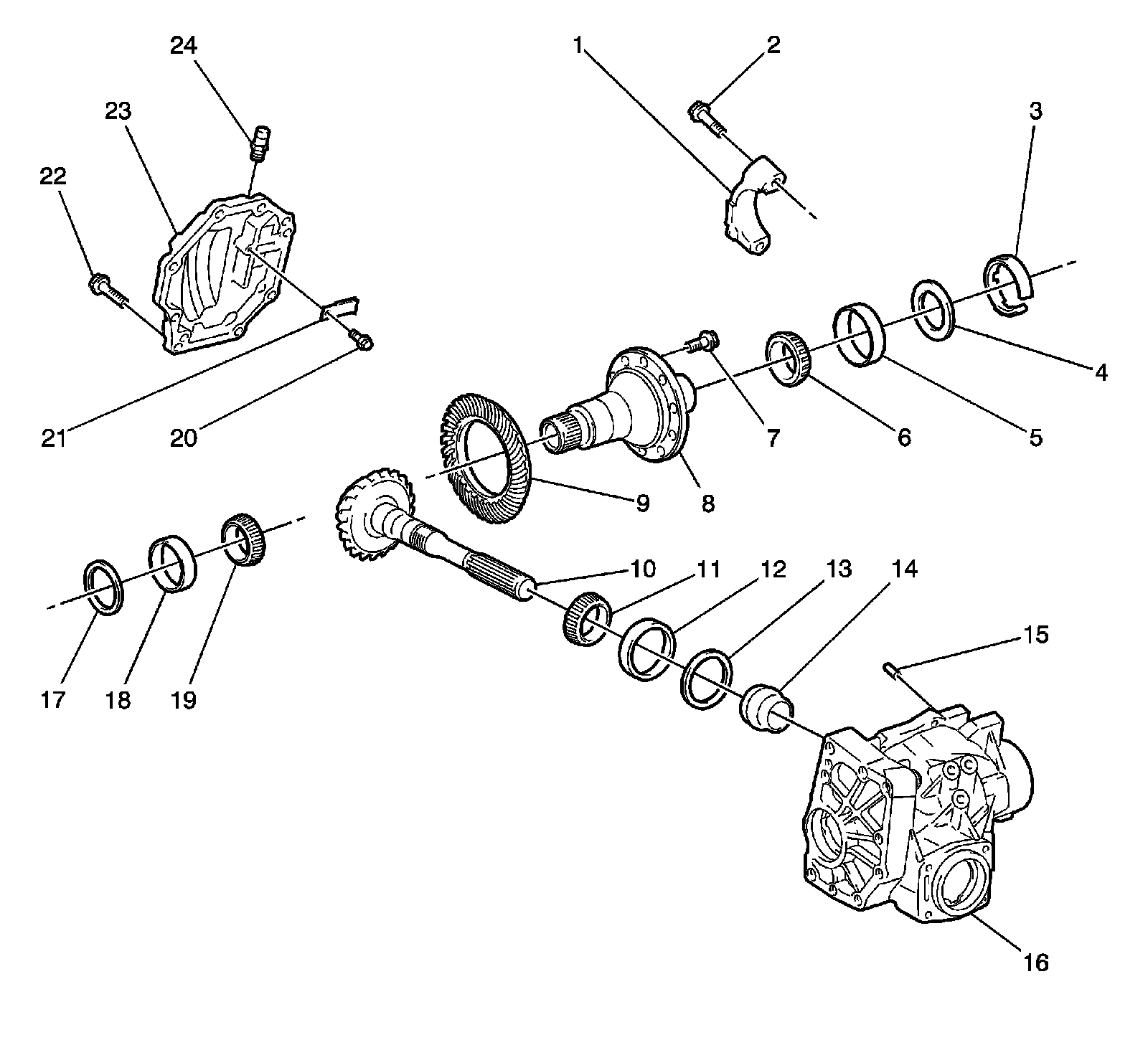

Transfer Assembly (1 of 2)




1 - Bearing Cap
2 - Bolt
3 - No. 1 Transfer Output Shaft Spacer
4 - No. 2 Transfer Ring Gear Mounting Case Washer
5 - Ring Gear Mounting Case Bearing
6 - Ring Gear Mounting Case Bearing
7 - Bolt
8 - Transfer Ring Gear Mounting Case
9 - Ring Gear
10 - Driven Pinion
11 - Transfer Driven Pinion Front Bearing
12 - Transfer Driven Pinion Front Bearing
13 - Transfer Output Shaft Washer
14 - Transfer Pinion Bearing Spacer
15 - Transfer Case Straight Pin
16 - Transfer Case
17 - Ring Gear Mounting Case Plate Washer
18 - Ring Gear Mounting Case Bearing
19 - Ring Gear Mounting Case Bearing
20 - Bolt
21 - Breather Oil Deflector
22 - Bolt
23 - No. 1 Transfer Case Cover
24 - Transfer Case Breather Plug

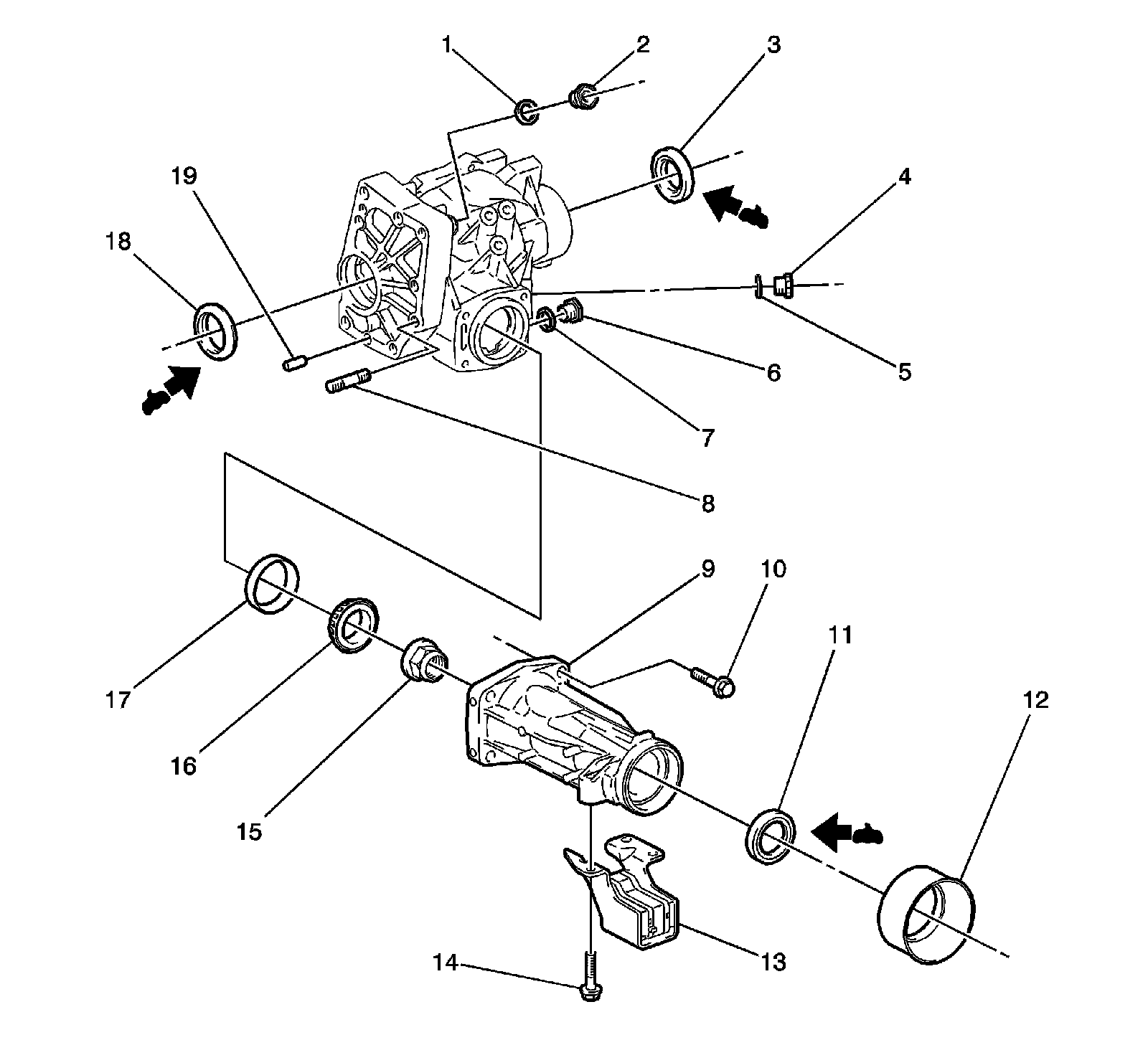

Transfer Assembly (2 of 2)




1 - Gasket
2 - No. 2 Transfer Case Plug
3 - Transfer Case Front Oil Seal RH
4 - No. 1 Transfer Case Plug
5 - Gasket
6 - Transfer Drain Plug
7 - Gasket
8 - Transfer and Transaxle Setting Stud Bolt
9 - Transfer Extension Housing Sub-Assembly
10 - Bolt
11 - Transfer Case Rear Oil Seal
12 - Transfer Extension Housing Dust Deflector
13 - Transfer Dynamic Damper
14 - Bolt
15 - Gear Nut
16 - Transfer Driven Pinion Rear Bearing
17 - Transfer Driven Pinion Rear Bearing
18 - Transfer Case Front Oil Seal
19 - Transfer Case Straight Pin
