Engine Control Module: Diagrams




Component Connector End Views

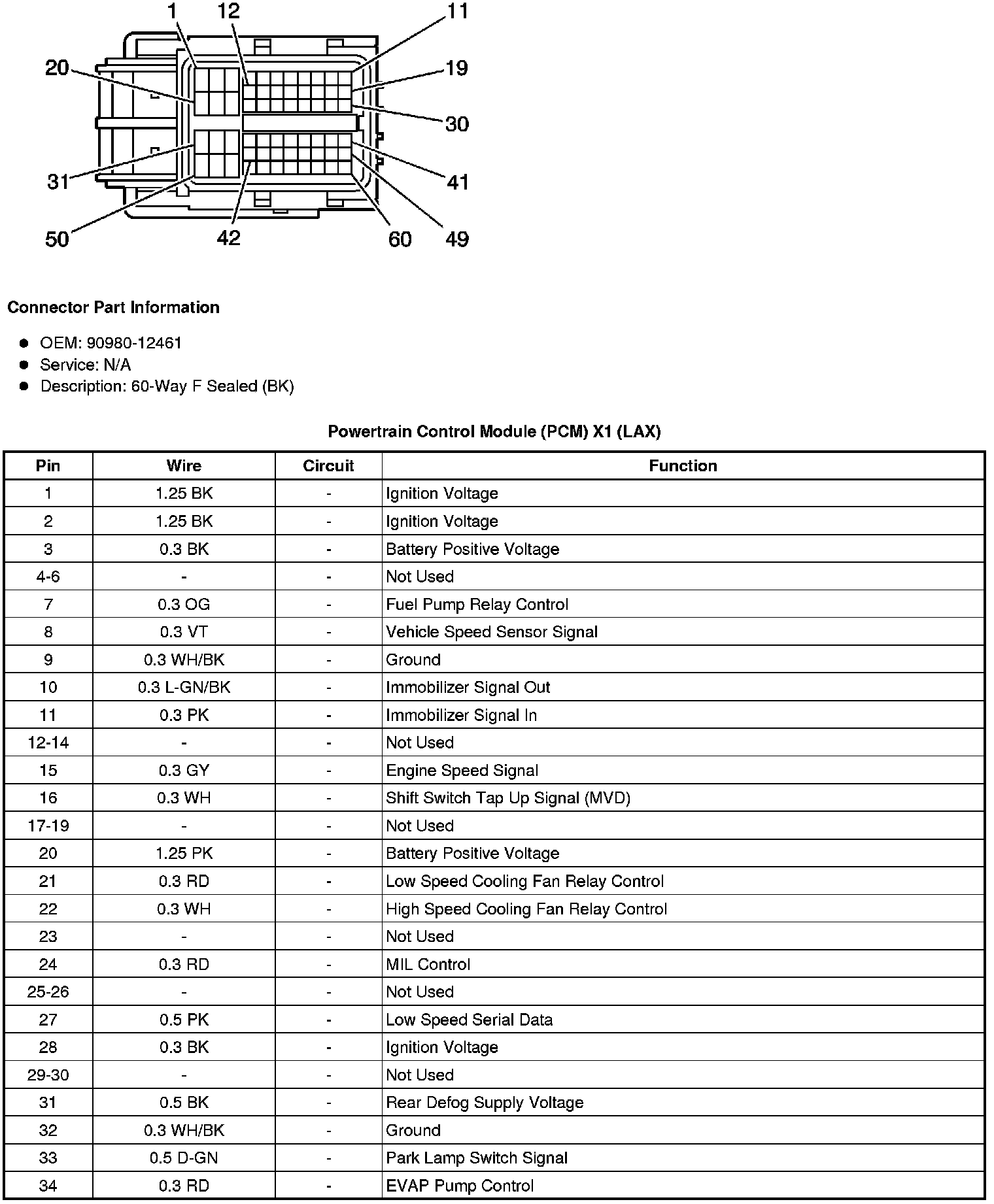

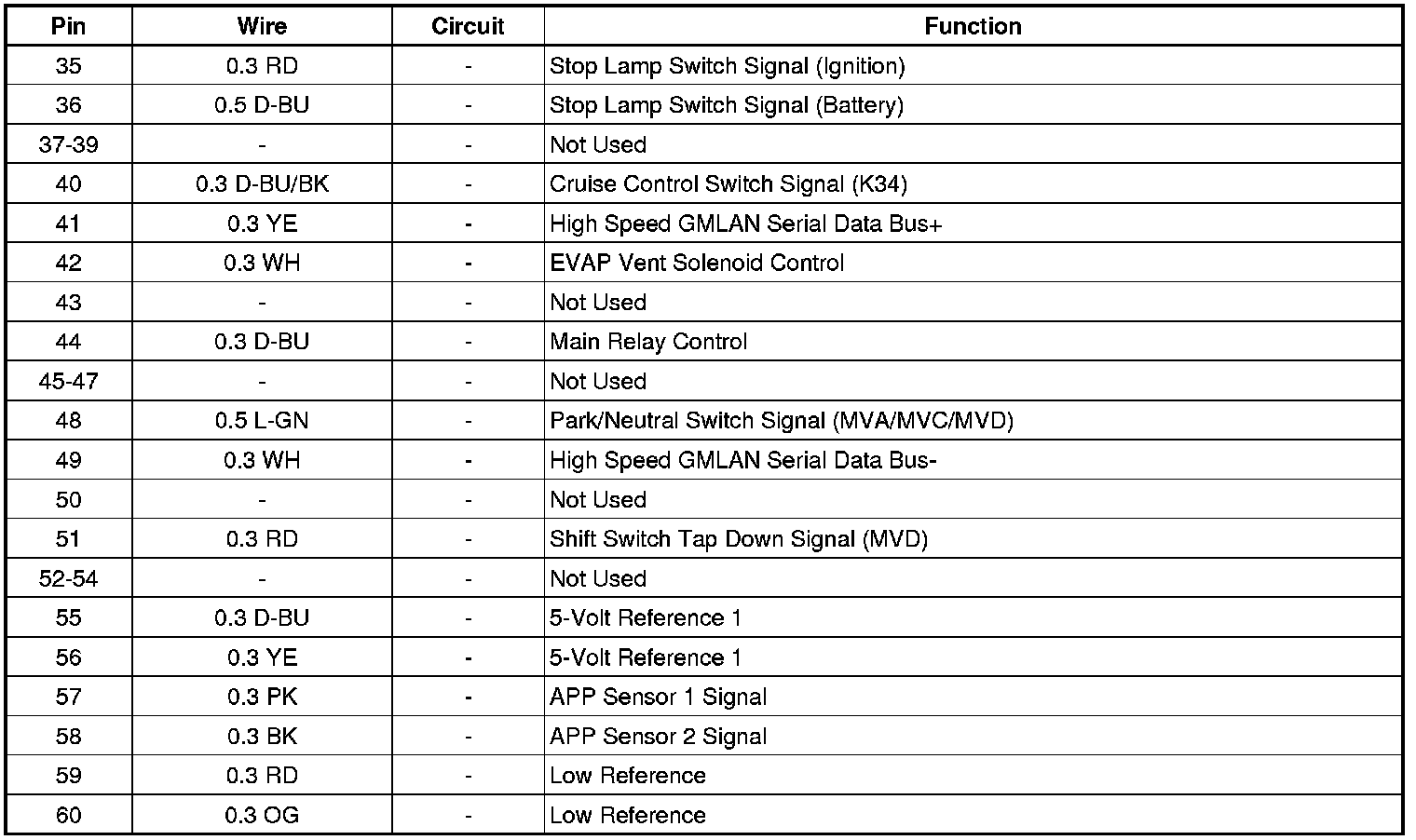

Powertrain Control Module (PCM) X1 (LAX)

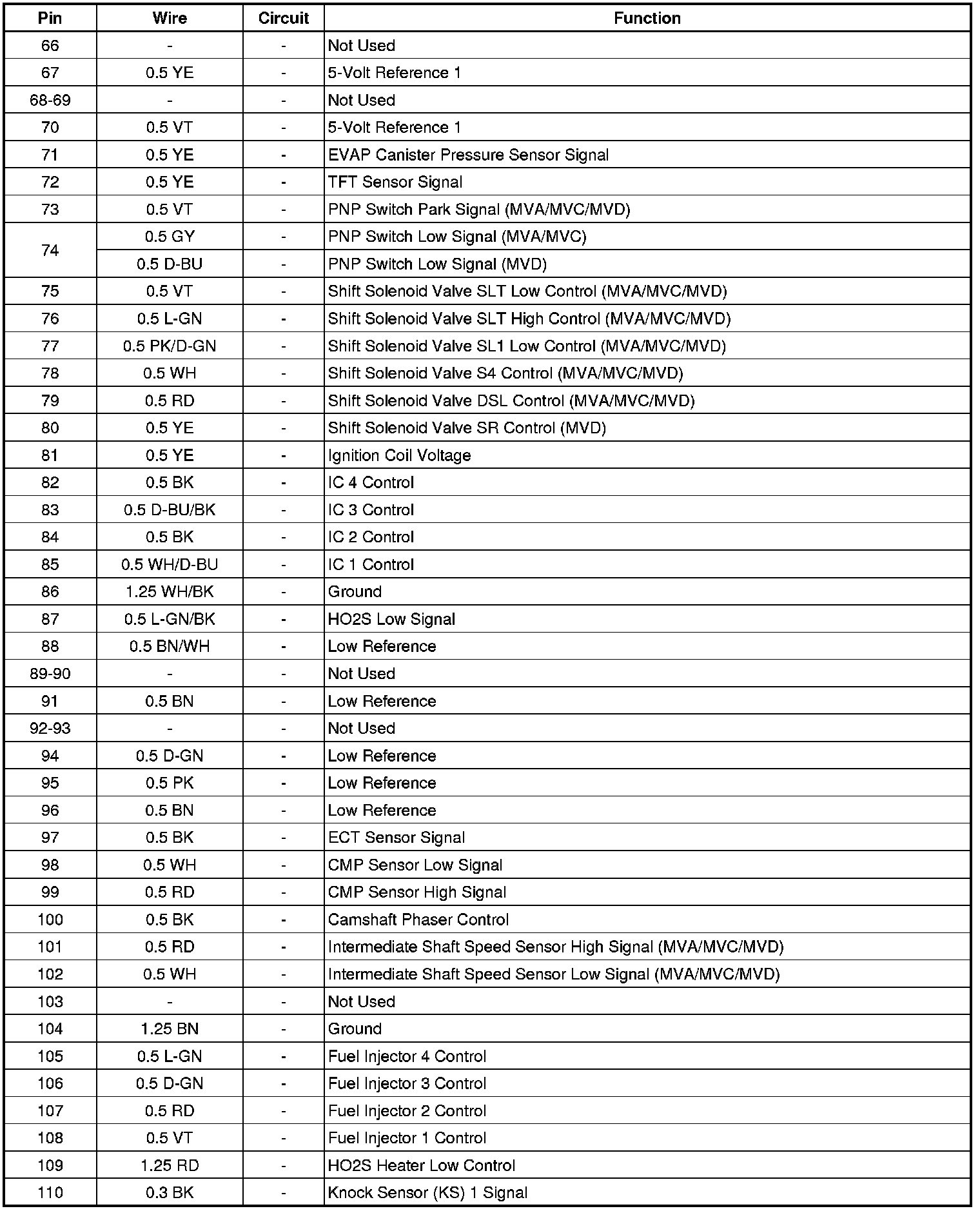

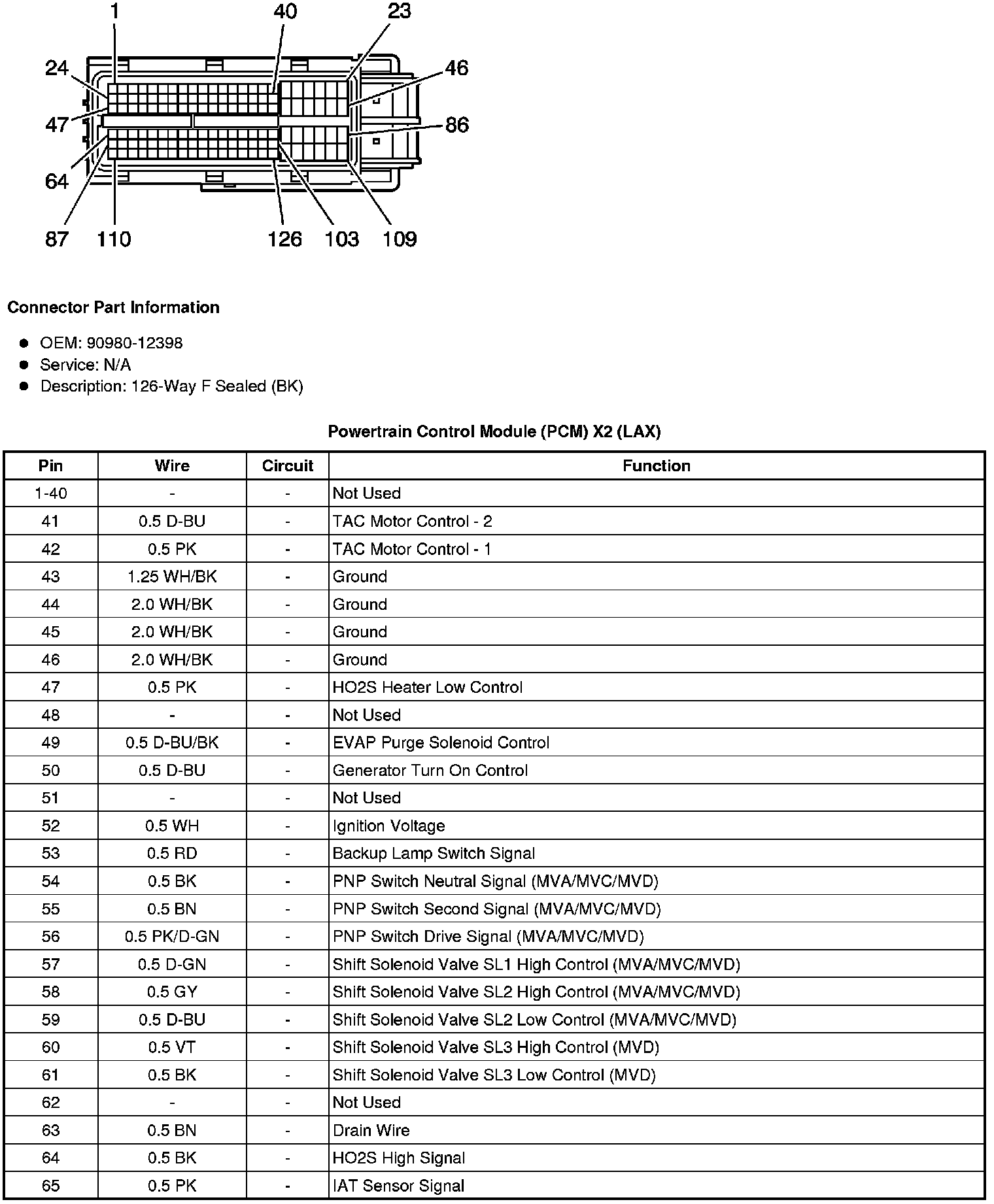

Powertrain Control Module (PCM) X2 (LAX)
