Components
Master Electrical Component List

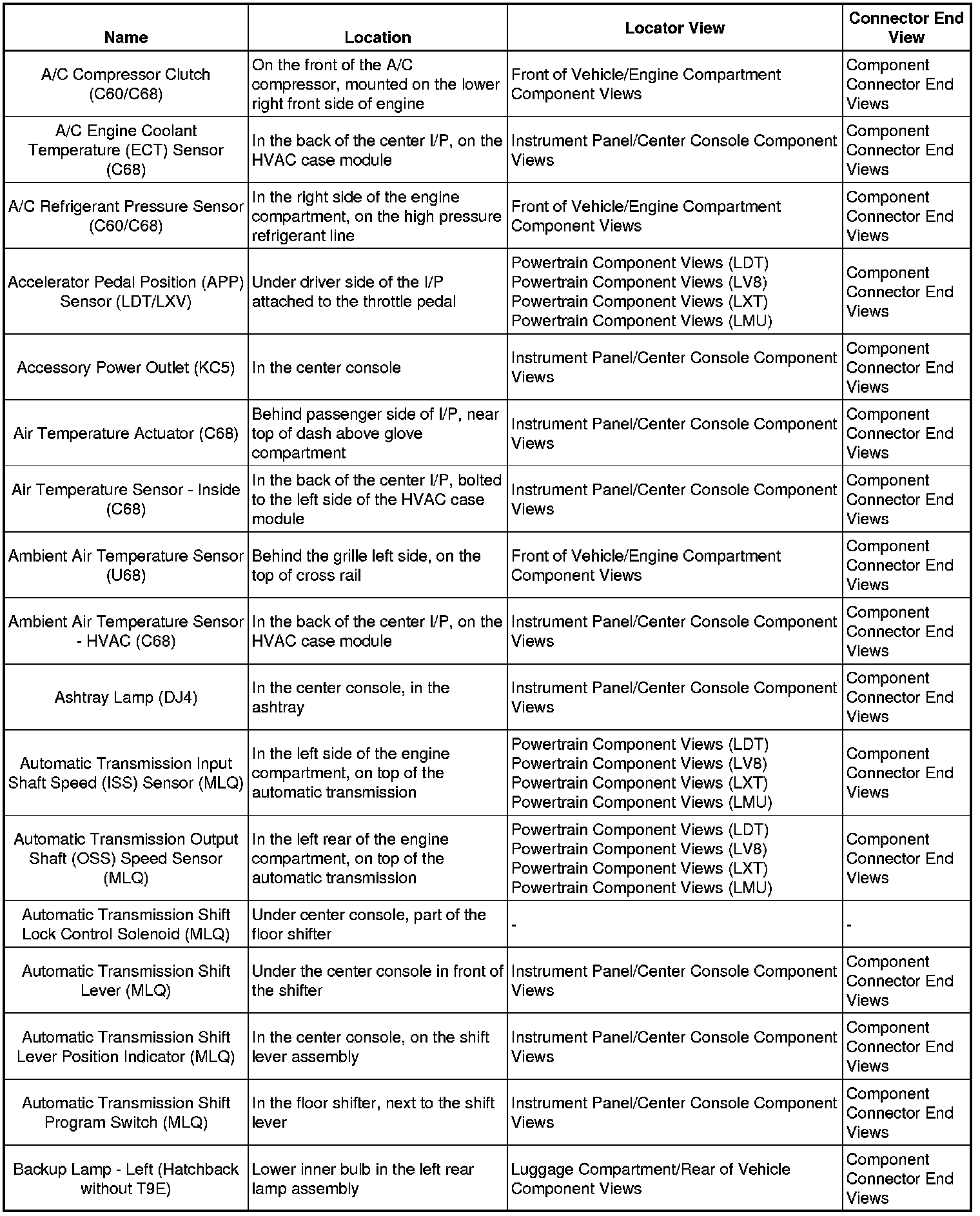

A/C - BA:

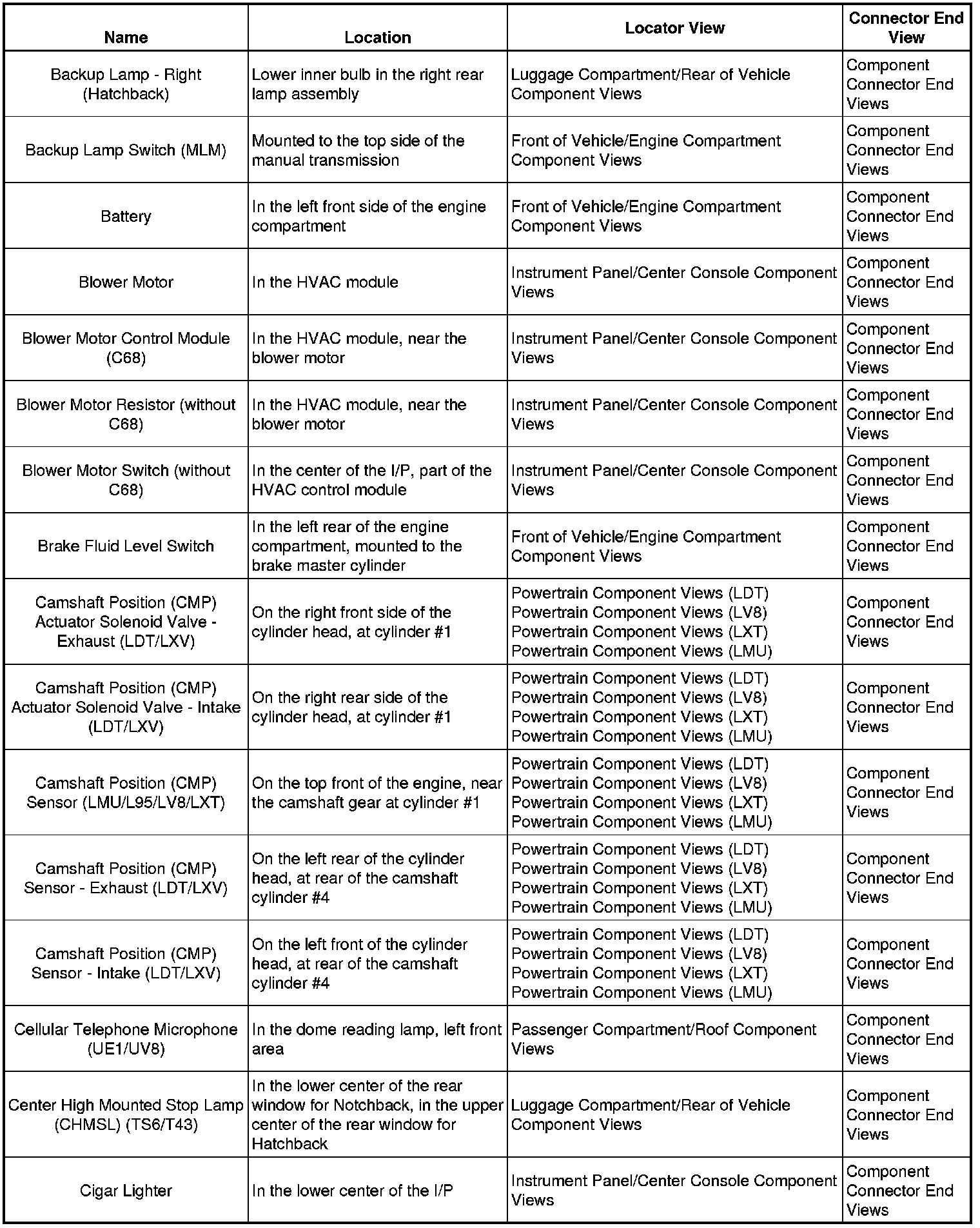

BA - CI:

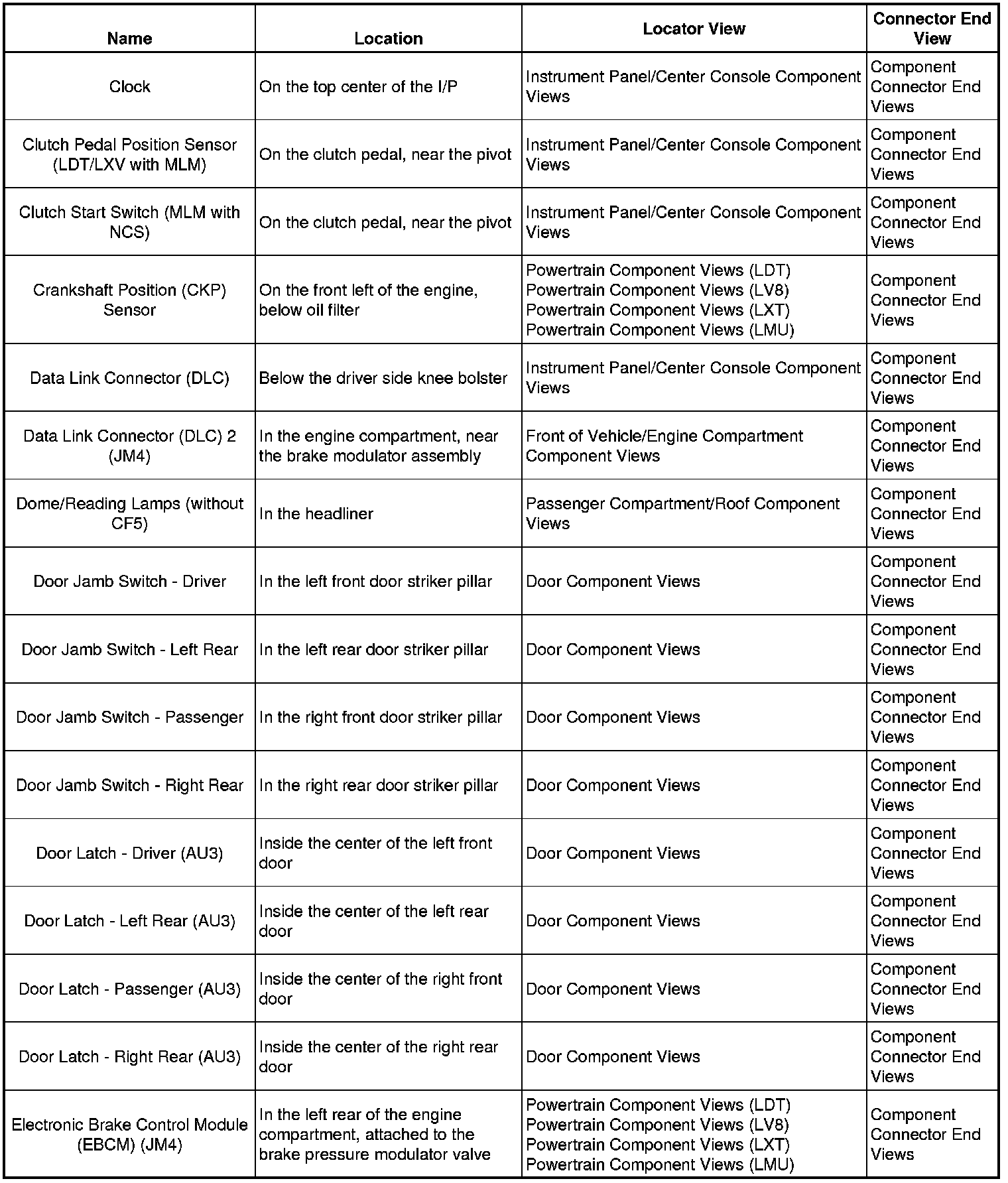

CL - EL:

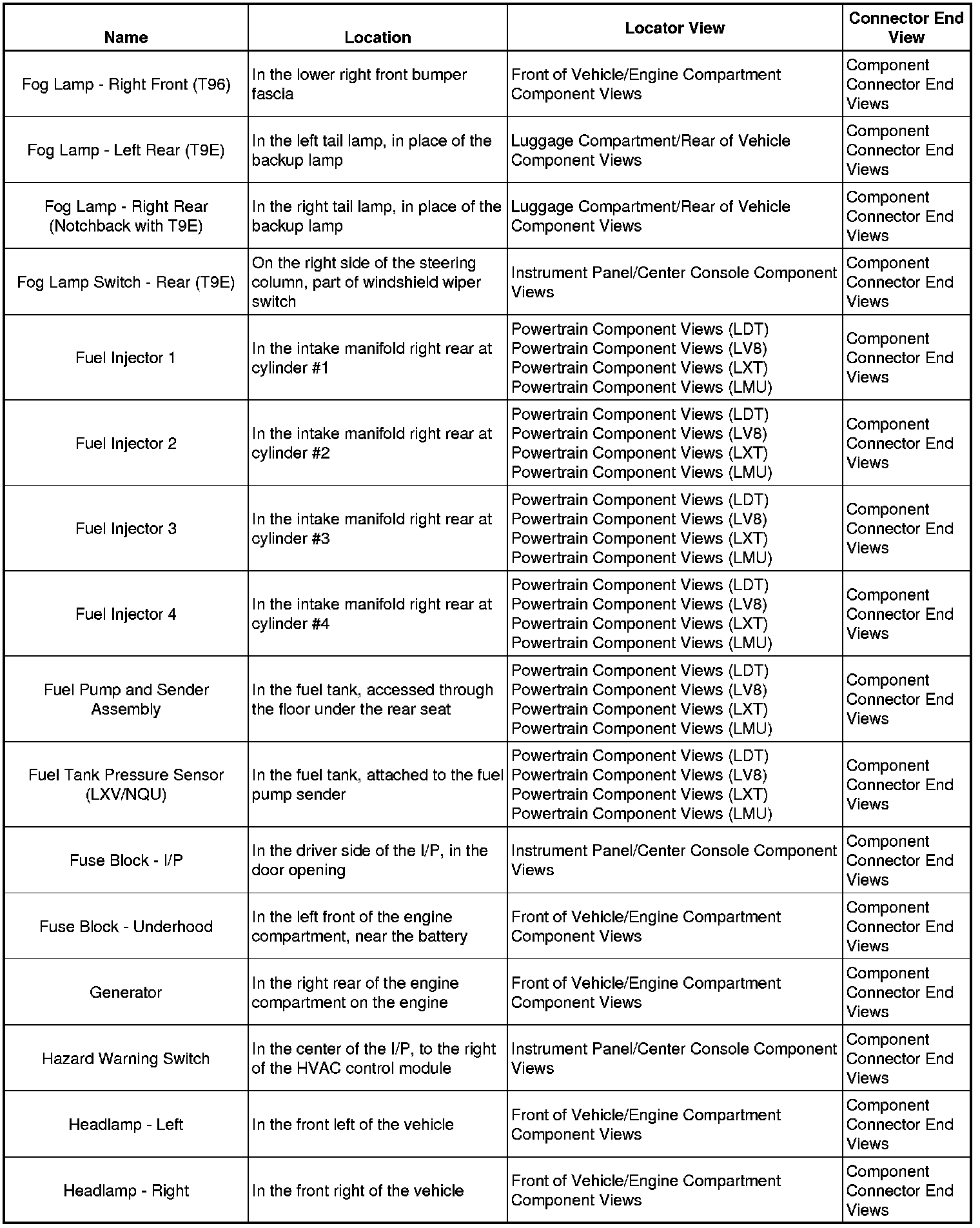

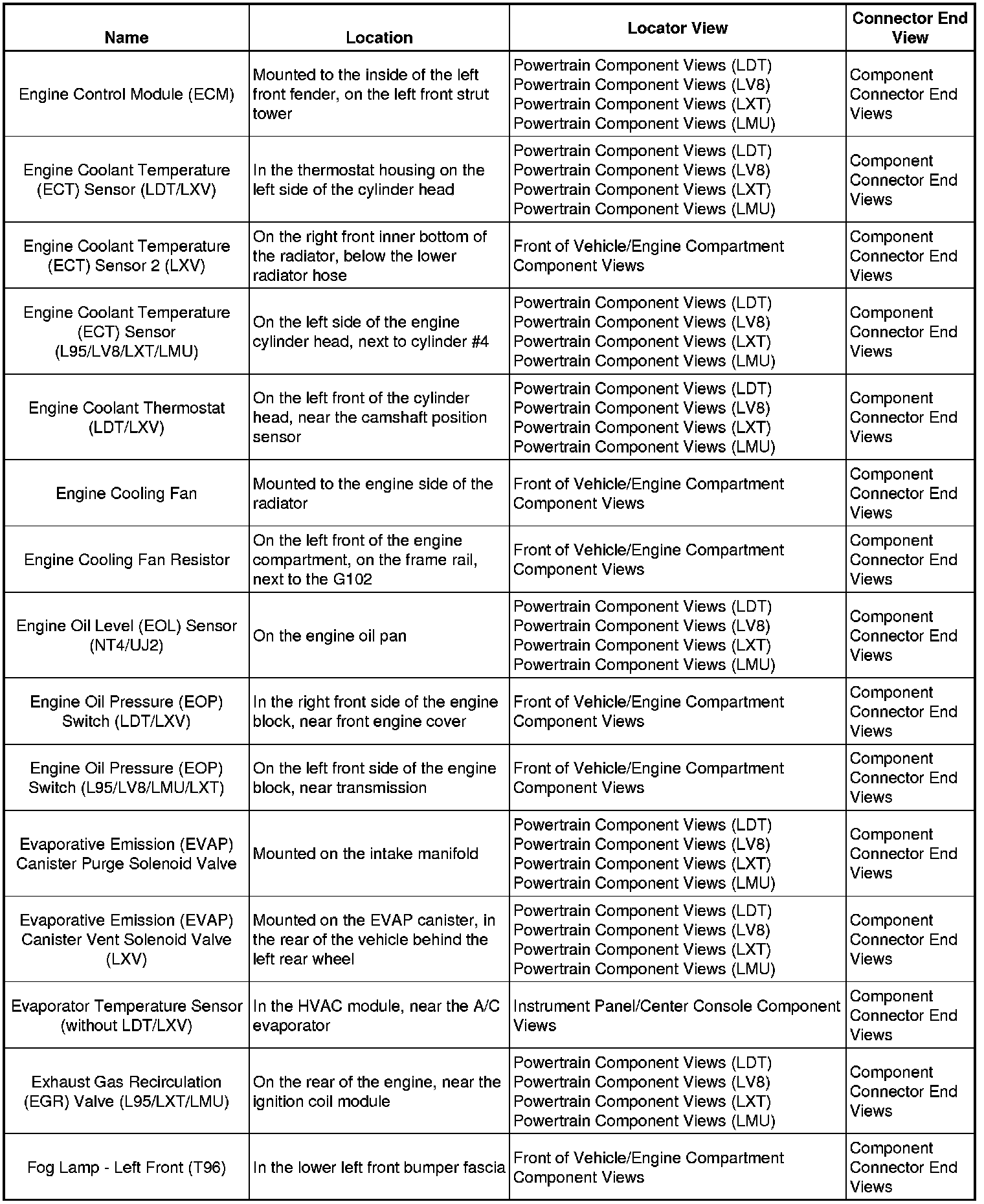

EN - FO:

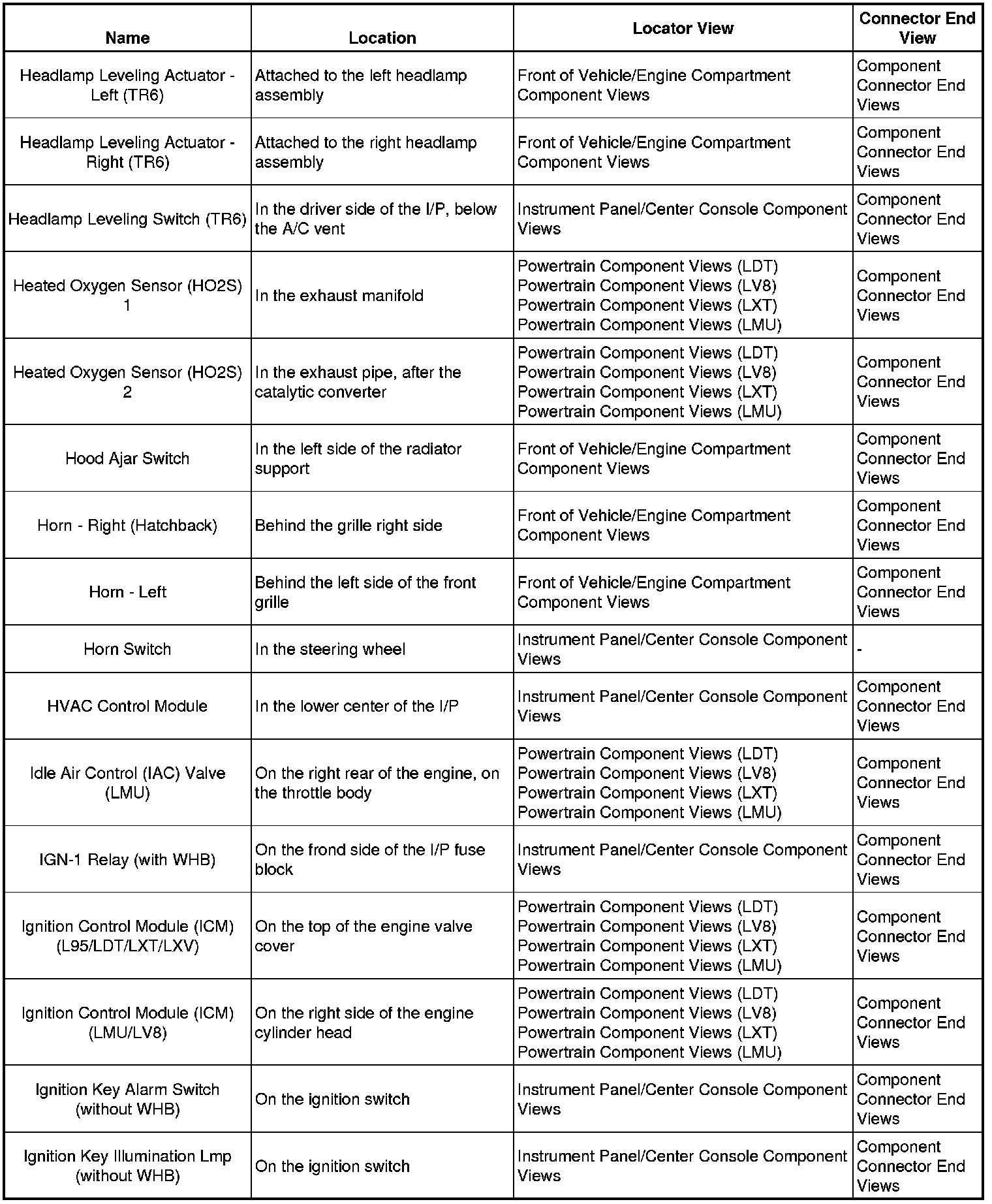

FO - HE:

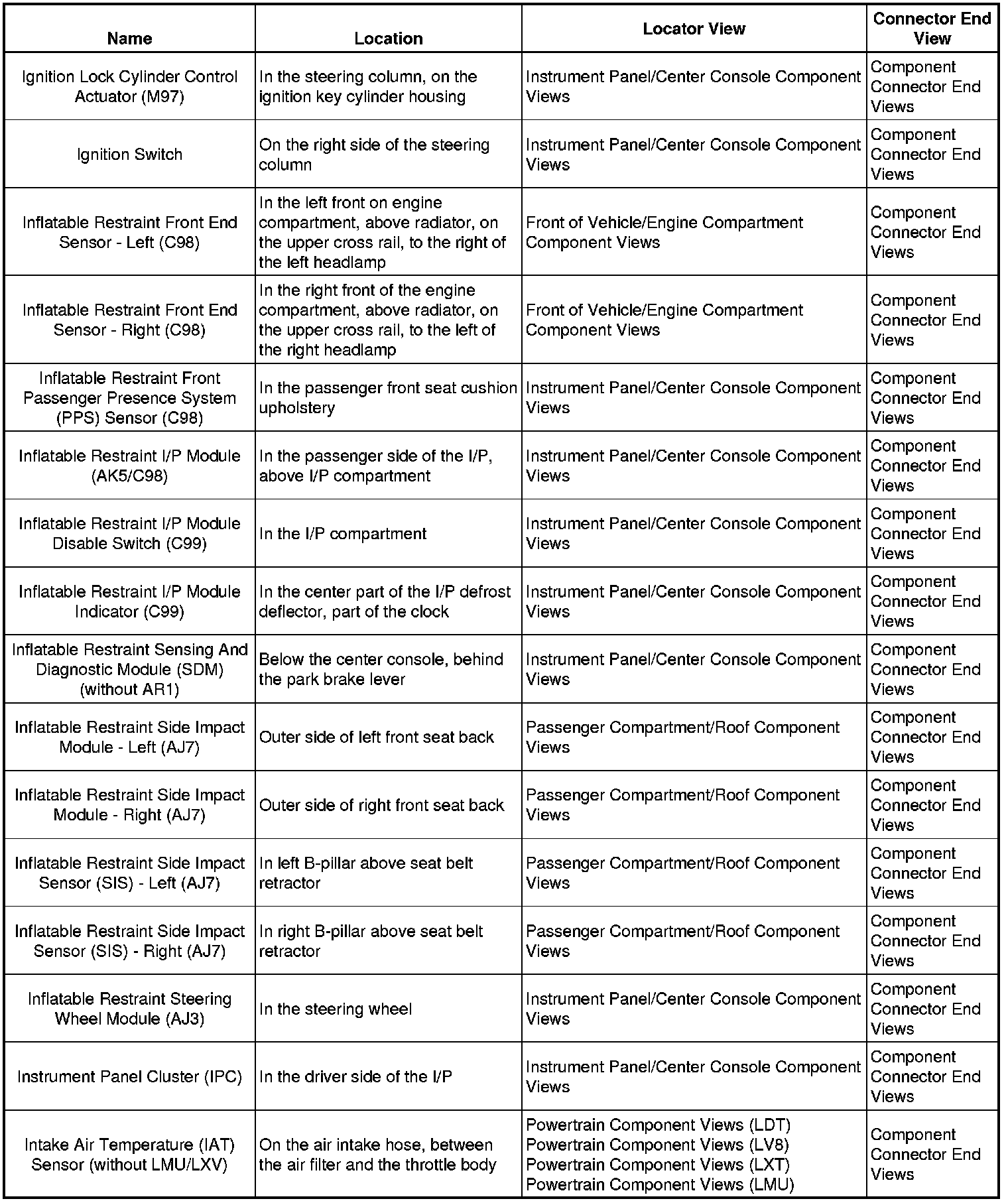

HE - IG:

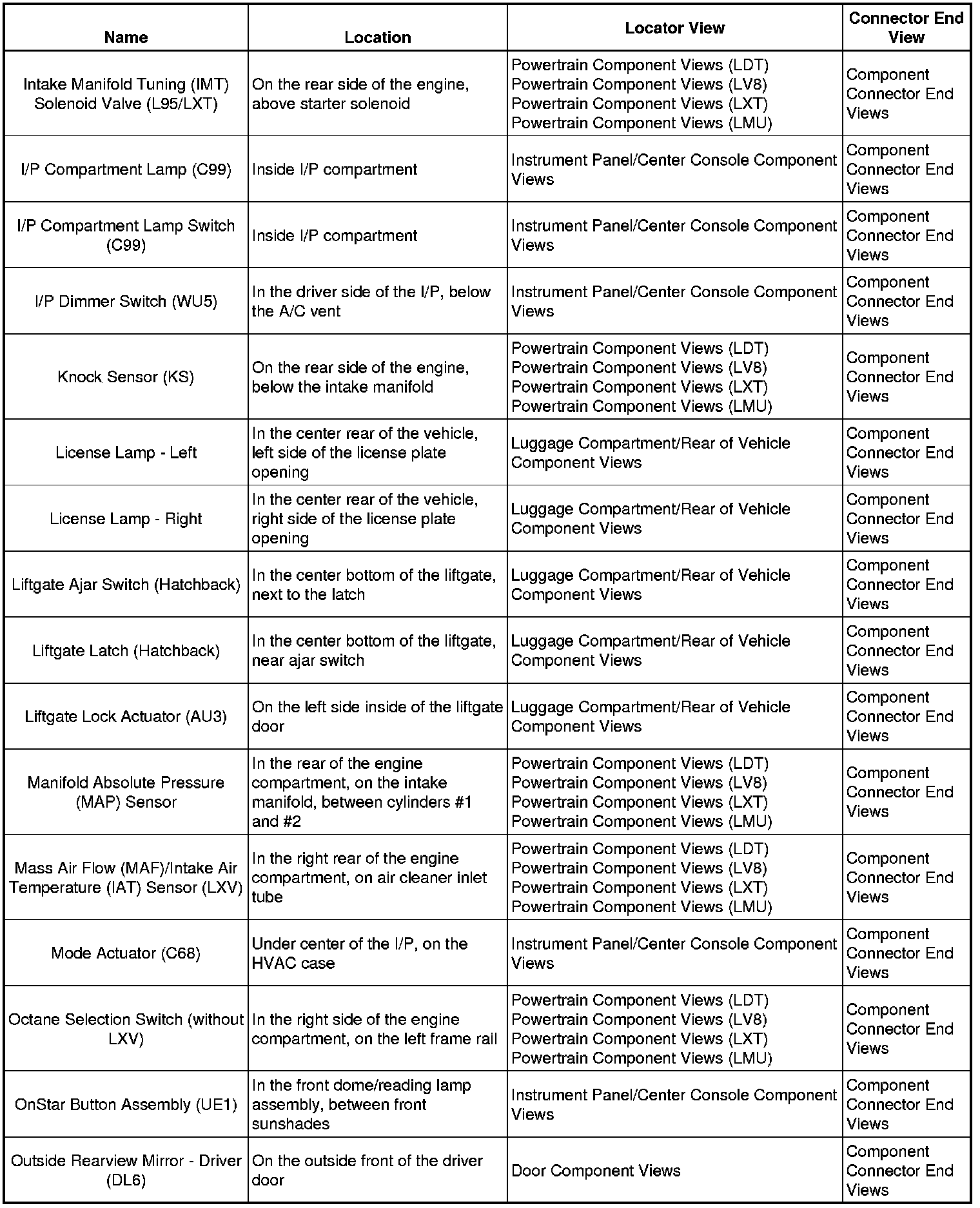

IG - IN:

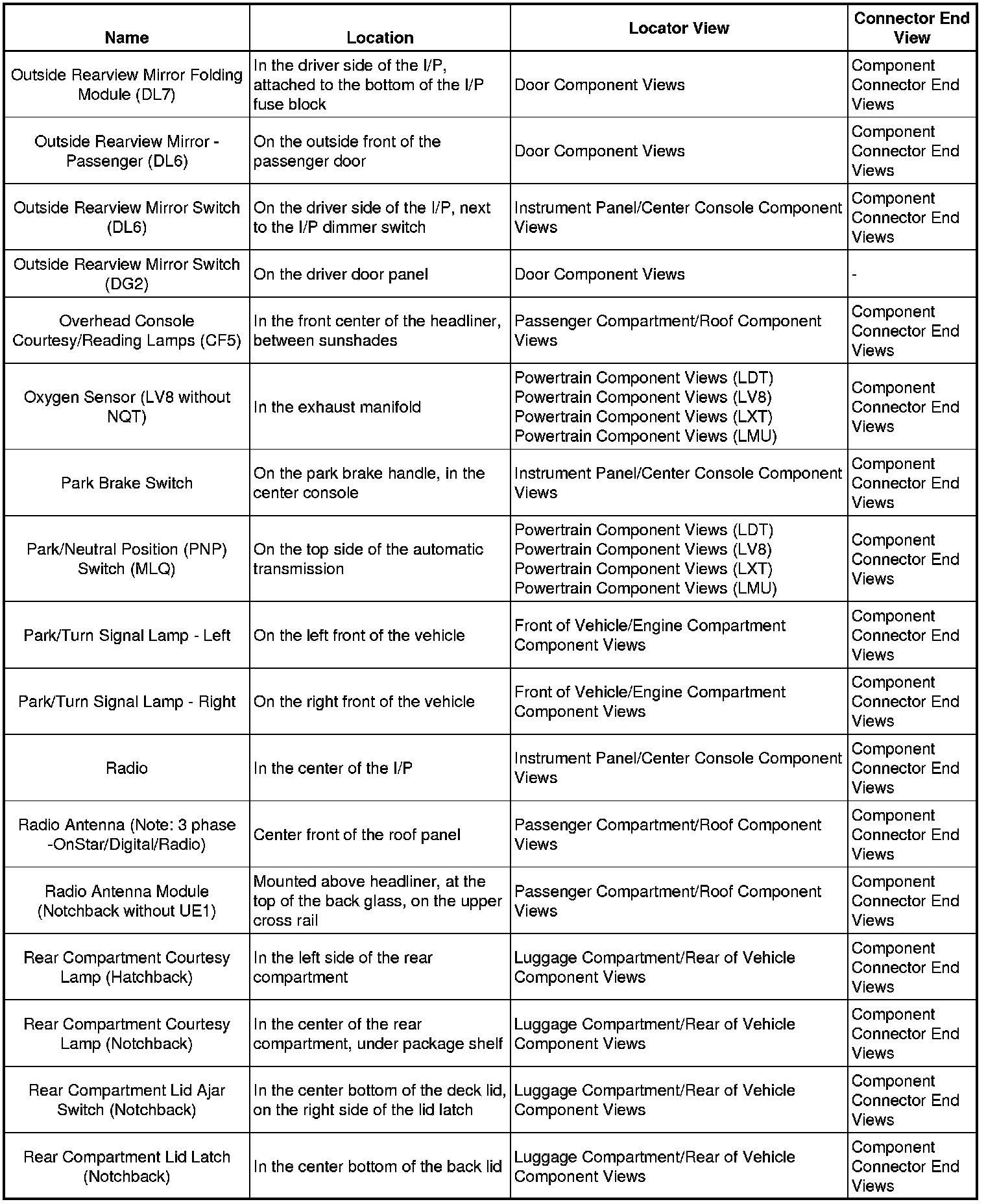

IN - OU:
OU - RE:

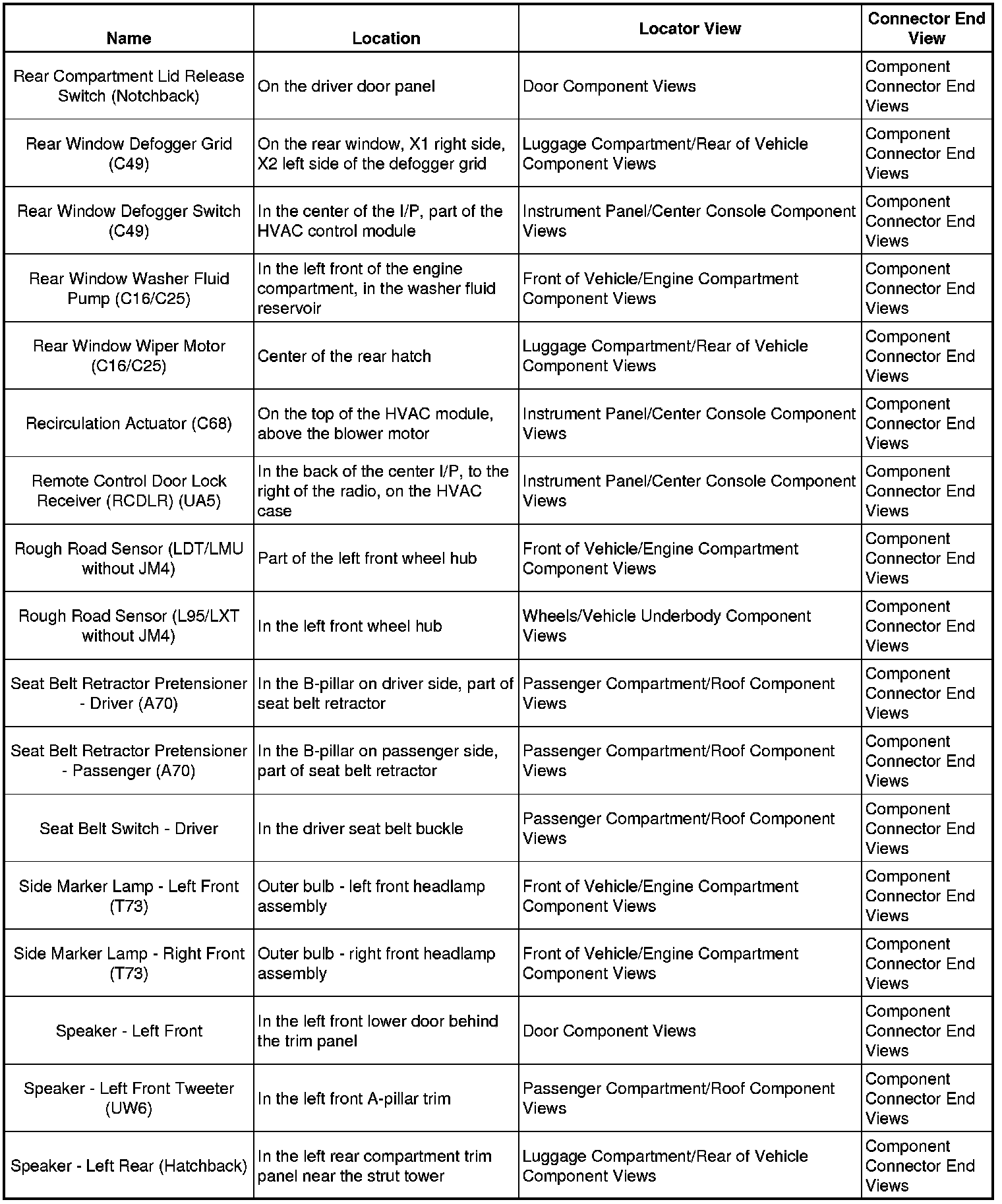

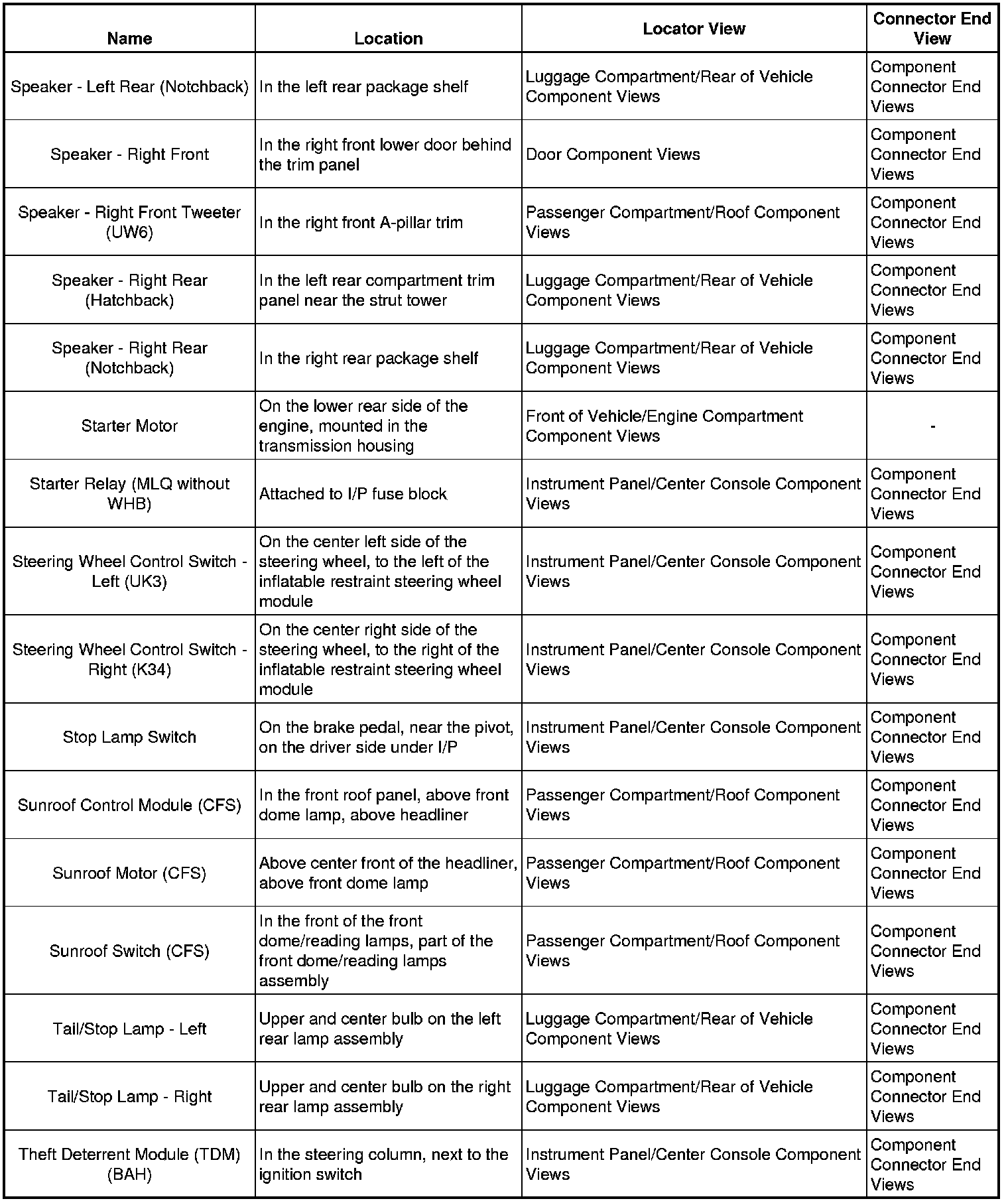

RE - SP:
SP - TH:

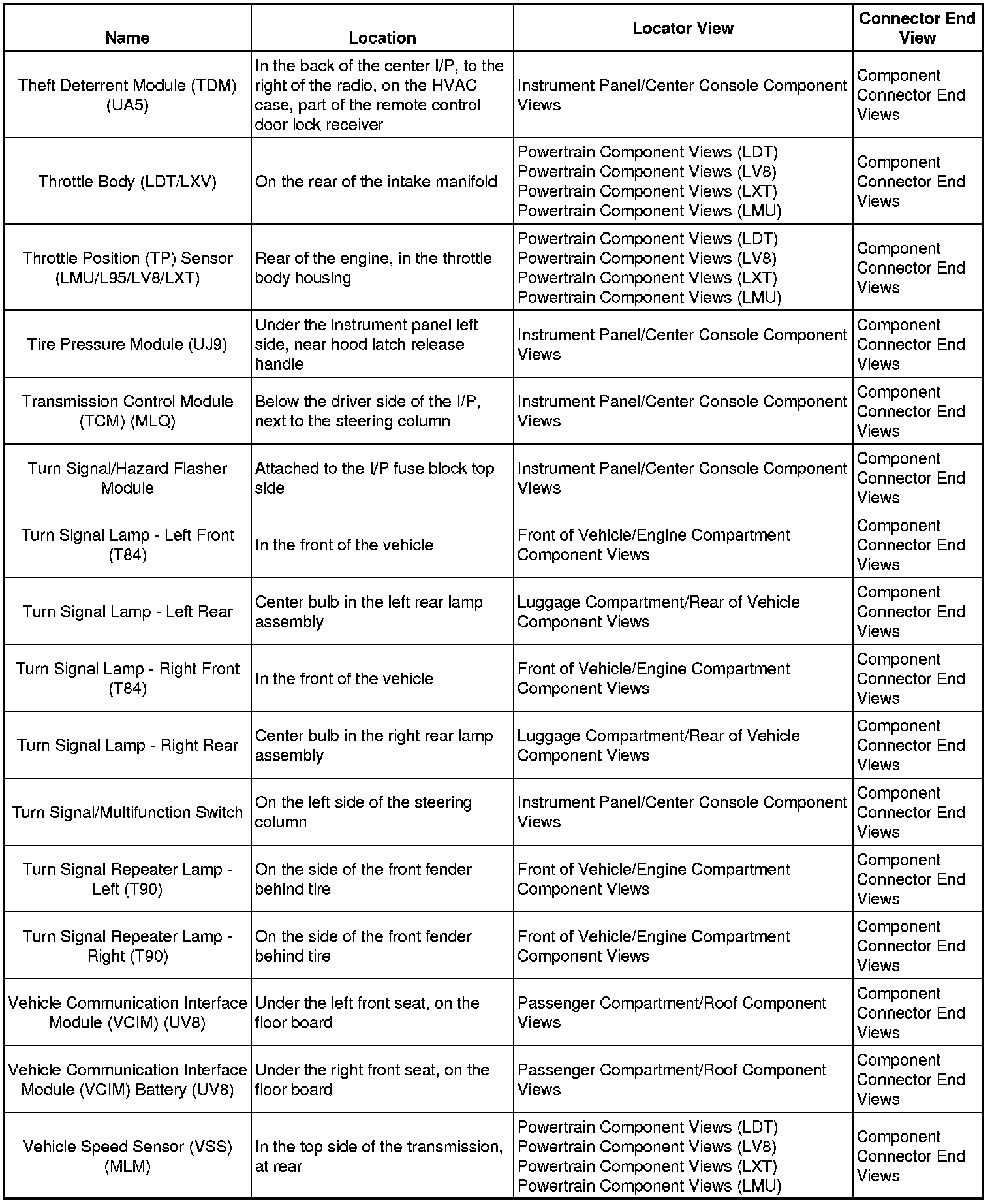

TH - VE:

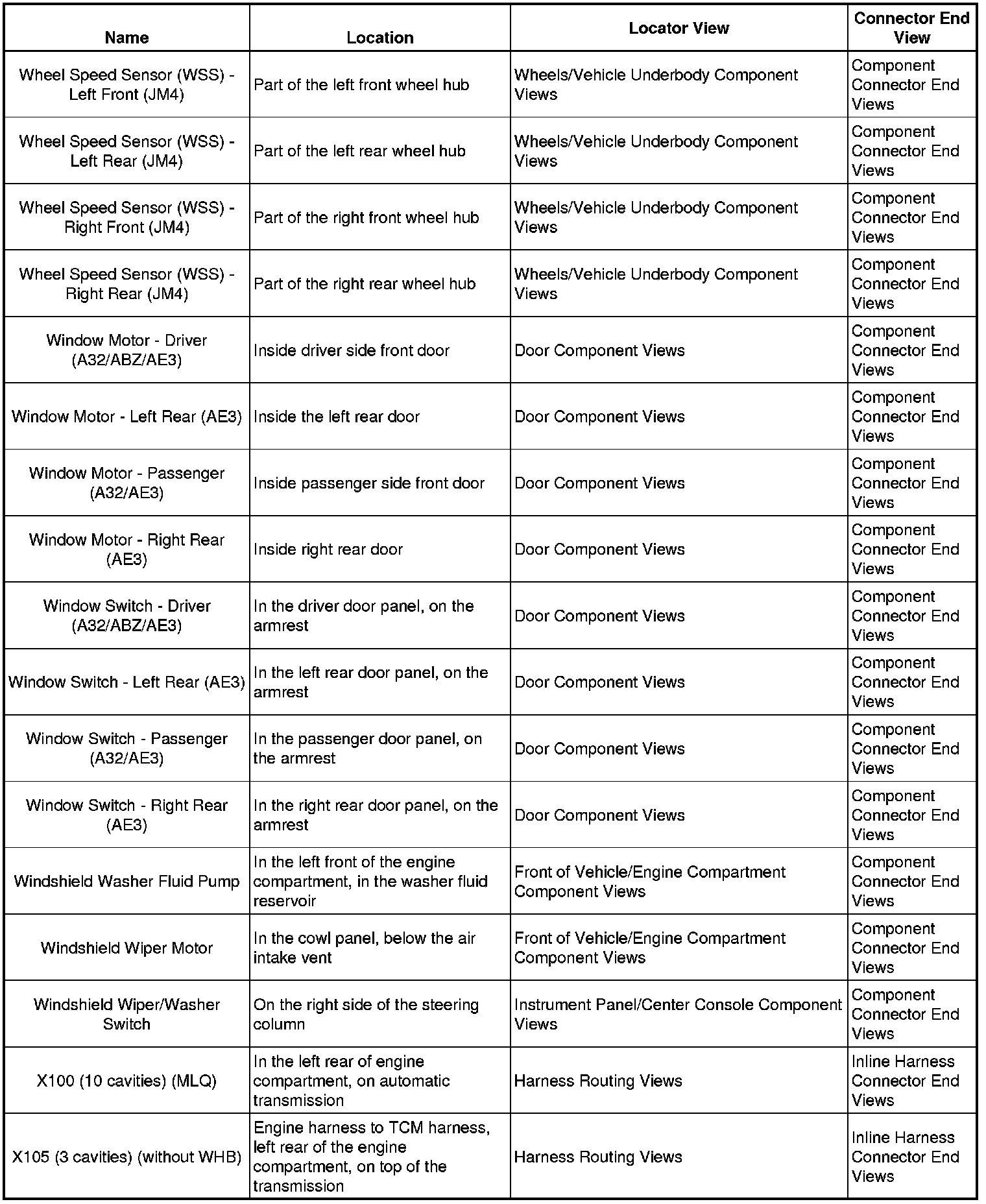

WH - X105:
