Tire Pressure Module: Service and Repair

Low Tire Pressure Indicator Module Replacement

Removal Procedure




1. Disconnect the hood release cable from the hood latch release handle.
2. Remove the I/P undercover.
3. Remove the driver side knee bolster.
4. Disconnect the tire pressure module connector.

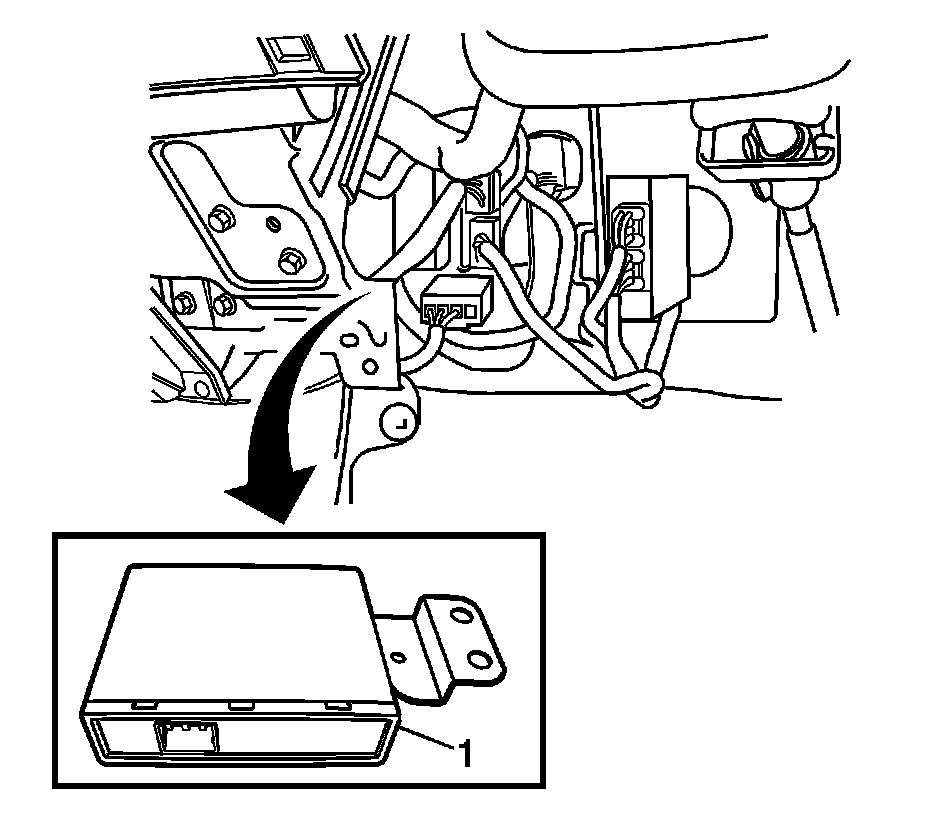

5. Remove the tire pressure module retaining screws and the module (1).

Installation Procedure




1. Install the tire pressure module (1). Secure with retaining screws.
2. Connect the tire pressure module connector.

Caution: Refer to Fastener Caution (Fastener Caution).

3. Install the driver side knee bolster and tighten to 10 Nm (89 lb in).
4. Install the I/P undercover.
5. Connect the hood release cable to the hood latch release handle.
