Audible Warning Device Control Module: Service and Repair

Audio Alarm Module Replacement

Removal Procedure




Warning: Refer to Battery Disconnect Warning (Battery Disconnect Warning).

1. Disconnect the negative battery cable.

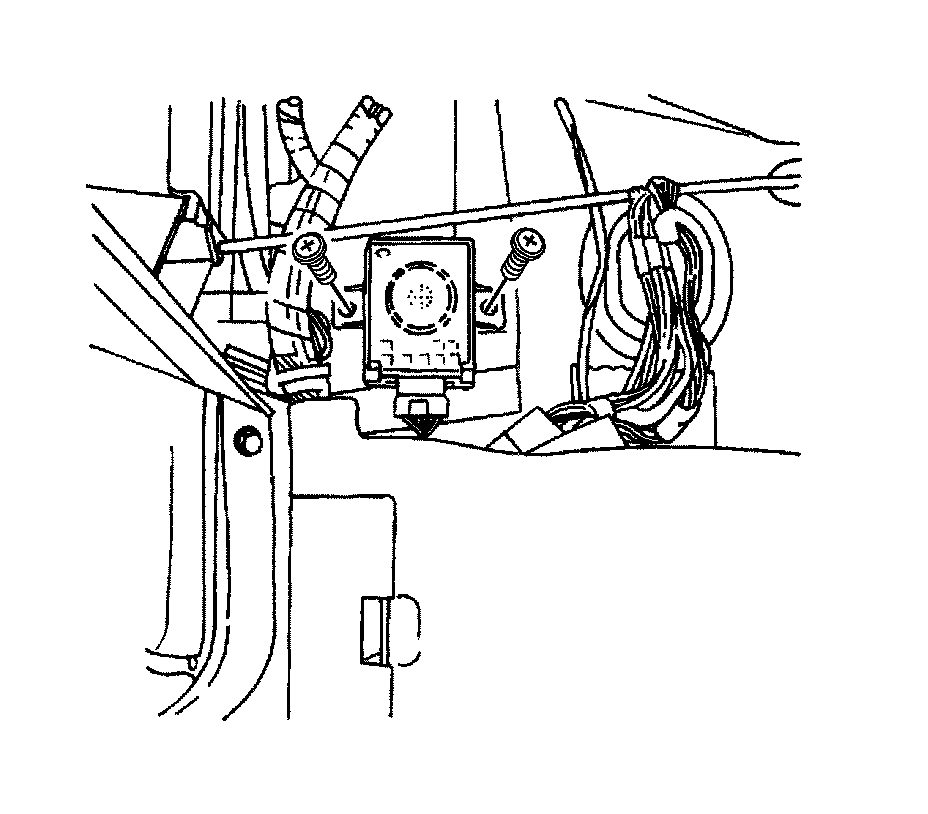

2. Remove the screws and the chime module.
3. Disconnect the electrical connector.

Installation Procedure




1. Connect the electrical connector.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the chime module with the screws and tighten to 3.5 Nm (31 lb in).
3. Connect the negative battery cable.
