Shift Speed




Shift Speed

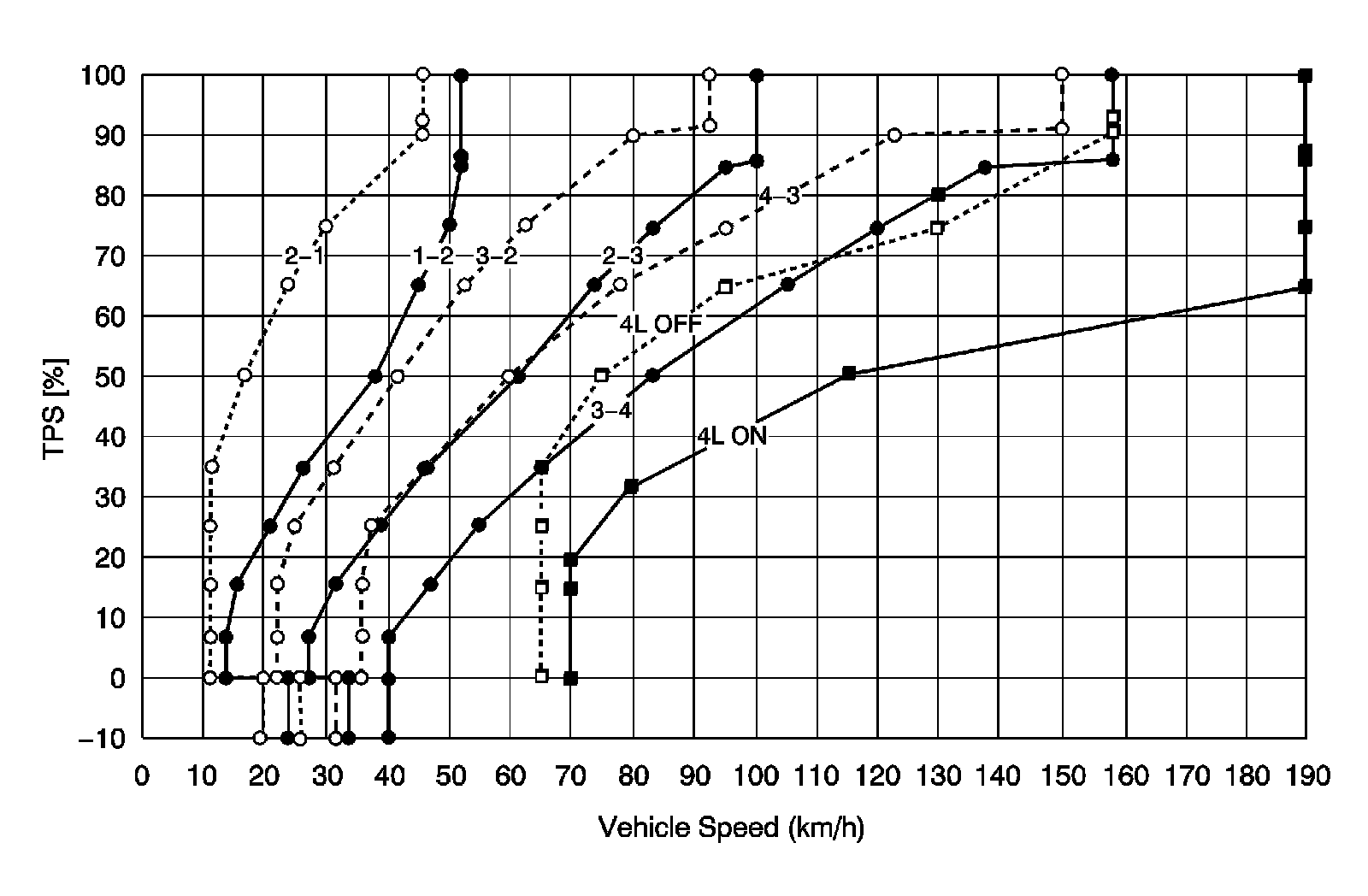

Economic Mode (1.4/1.5L SOHC)

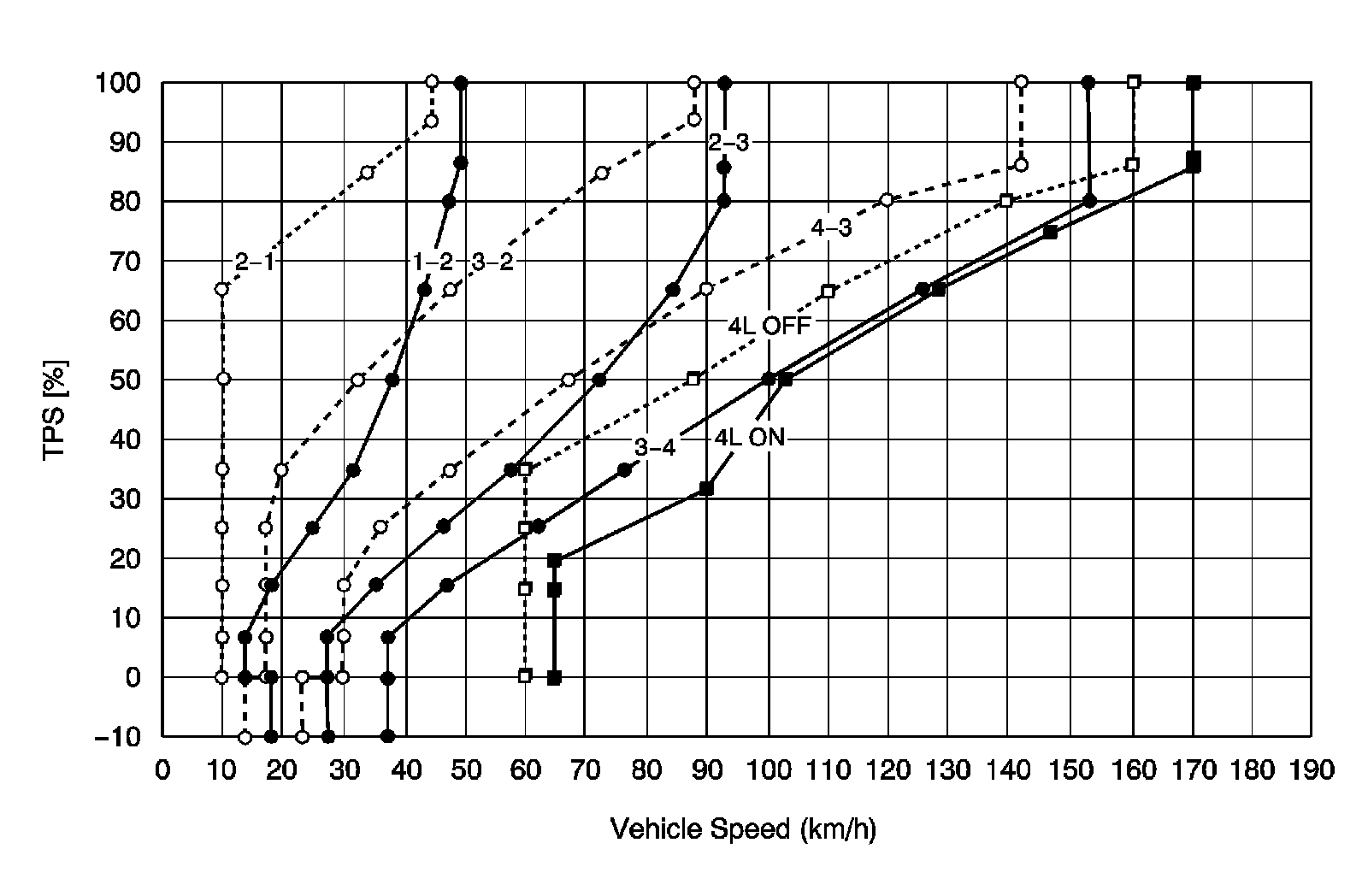

Economic Mode (1.2L SOHC)

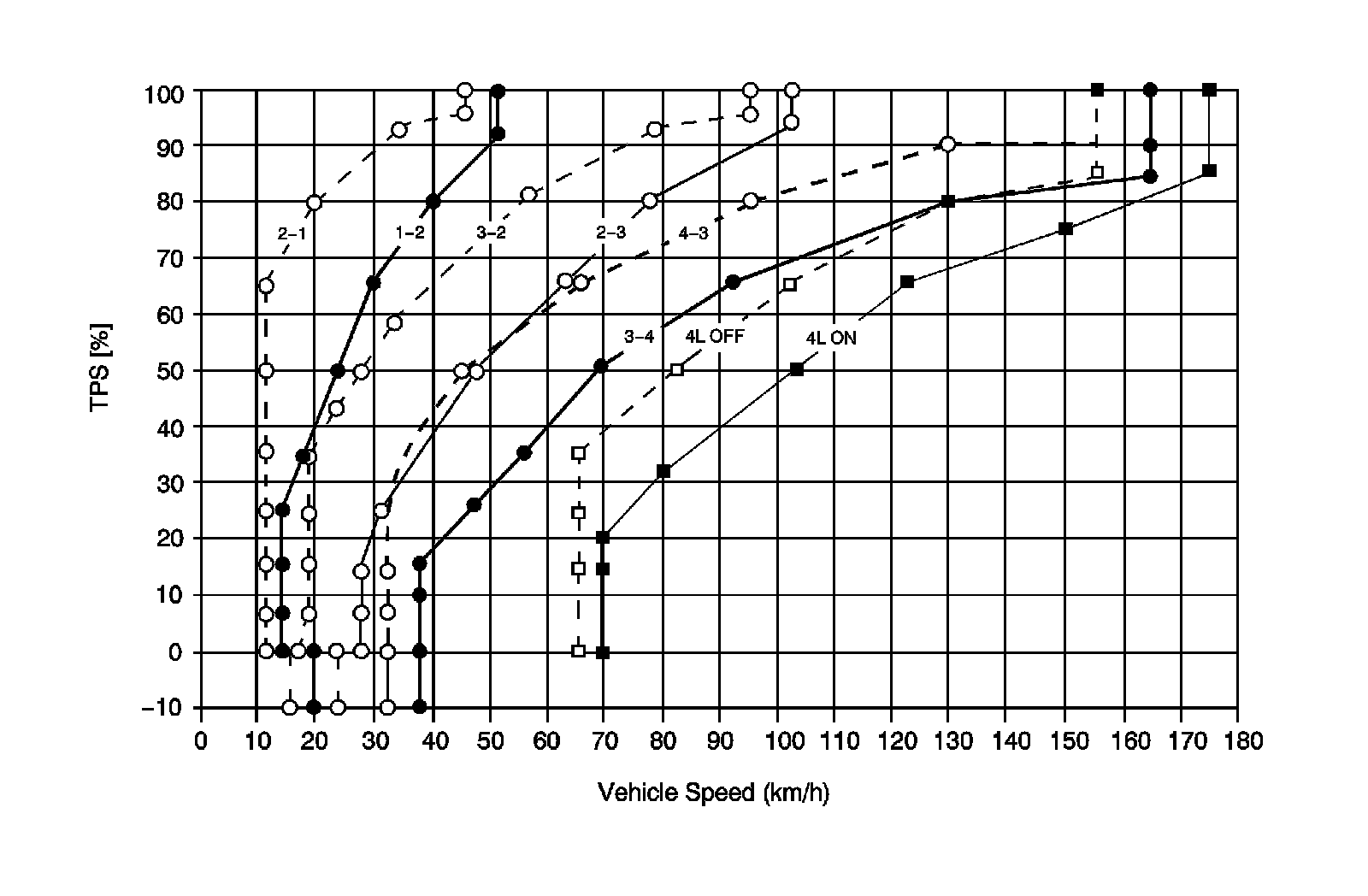

Economic Mode (1.4L DOHC)

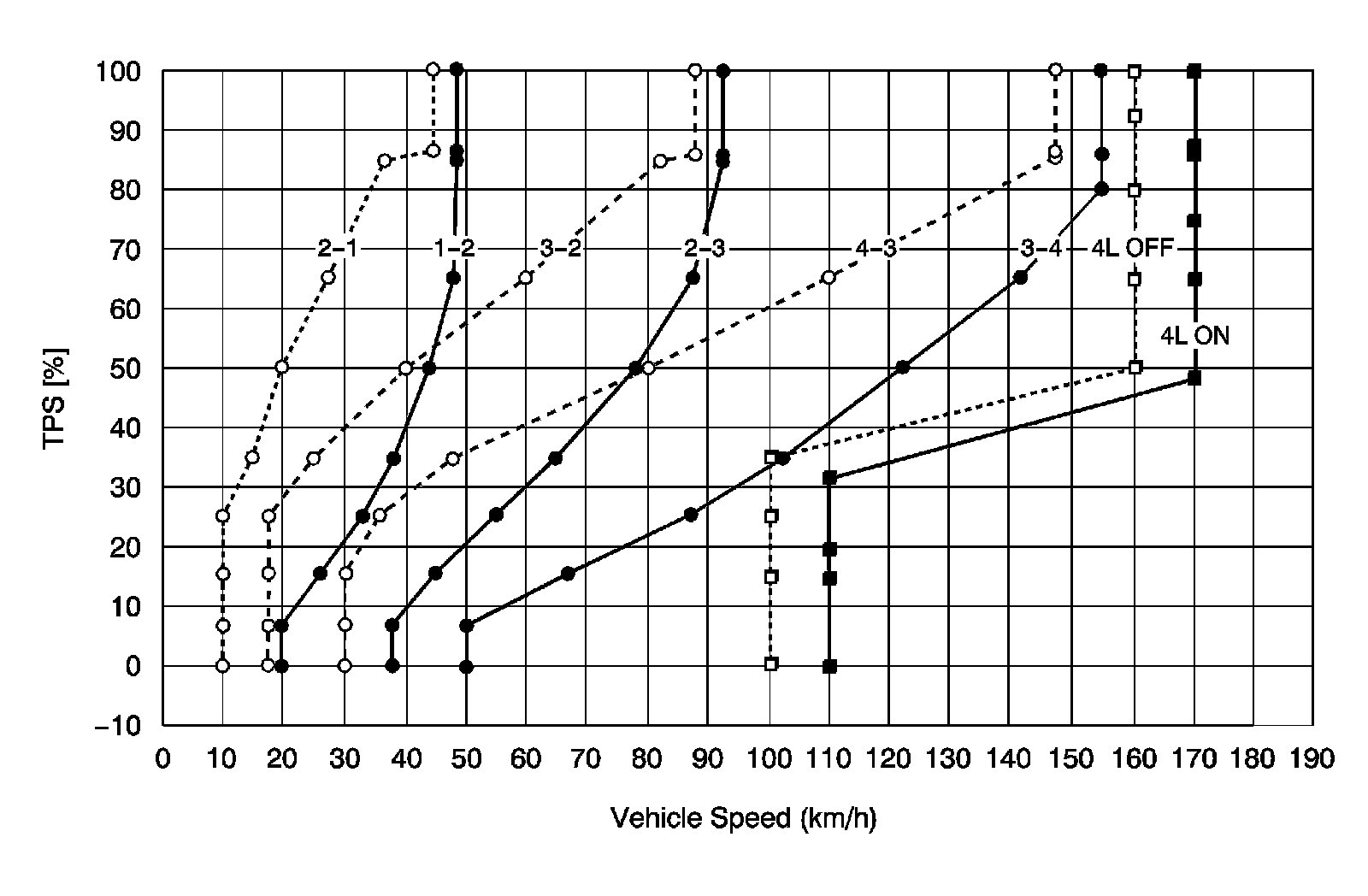

Power Mode (1.4/1.5L SOHC)

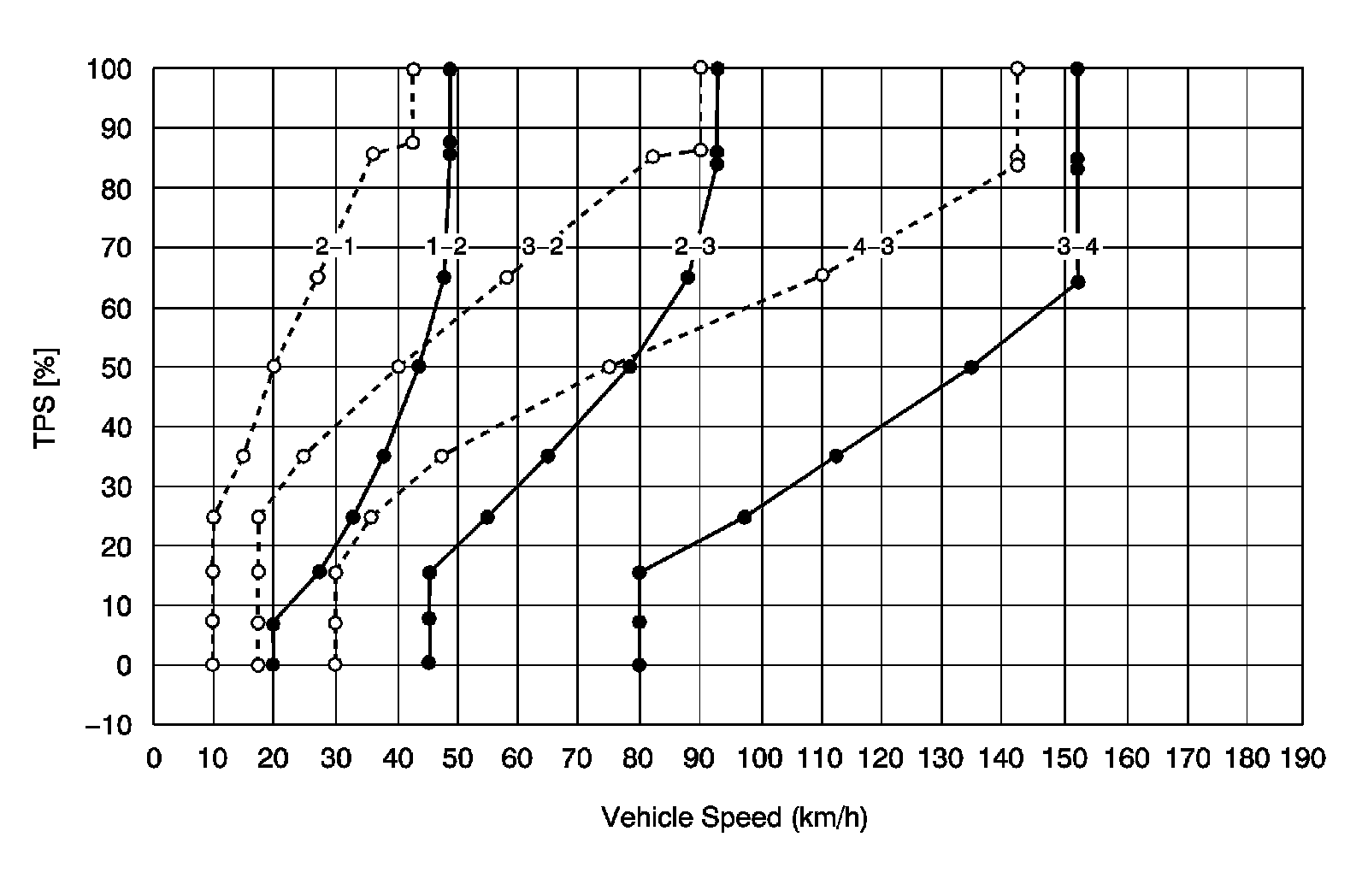

Power Mode (1.2L SOHC)





Power Mode (1.4L DOHC)





Up-Slope 1 Mode (1.4/1.5L SOHC)





Up-Slope 1 Mode (1.2L SOHC)





Up-Slope 1 Mode (1.4L DOHC)





Up-Slope 2 Mode (1.4/1.5L SOHC)





Up-Slope 2 Mode (1.2L SOHC)





Up-Slope 2 Mode (1.4L DOHC)





Down-Slope Mode (1.4/1.5L SOHC)





Down-Slope 2 Mode (1.2L SOHC)





Down-Slope 2 Mode (1.4L DOHC)
