System Specifications

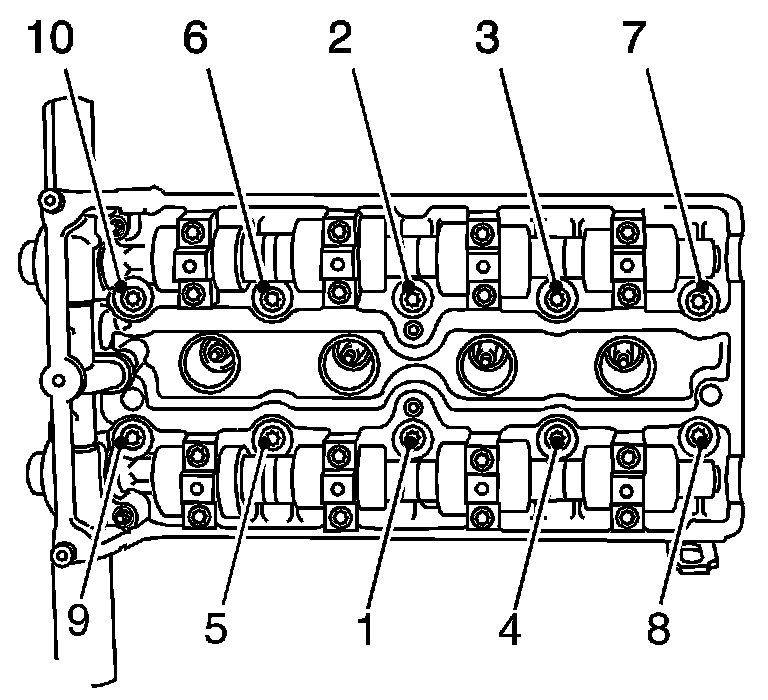

Cylinder head bolts 25 Nm (18.4 lb ft) +90° +90° +90° +45°

Surface Flatness Deformation Cover/Block 0.02/50-0.025/150 mm (0.0008/1.9685-0.0010/5.9055 in)
Manifolds Surface Deformation 0.05 mm (0.002 in)

Intake manifold bolts 20 Nm (14.7 lb ft)

Camshaft bearing cap 8 Nm (70.8 lb in)

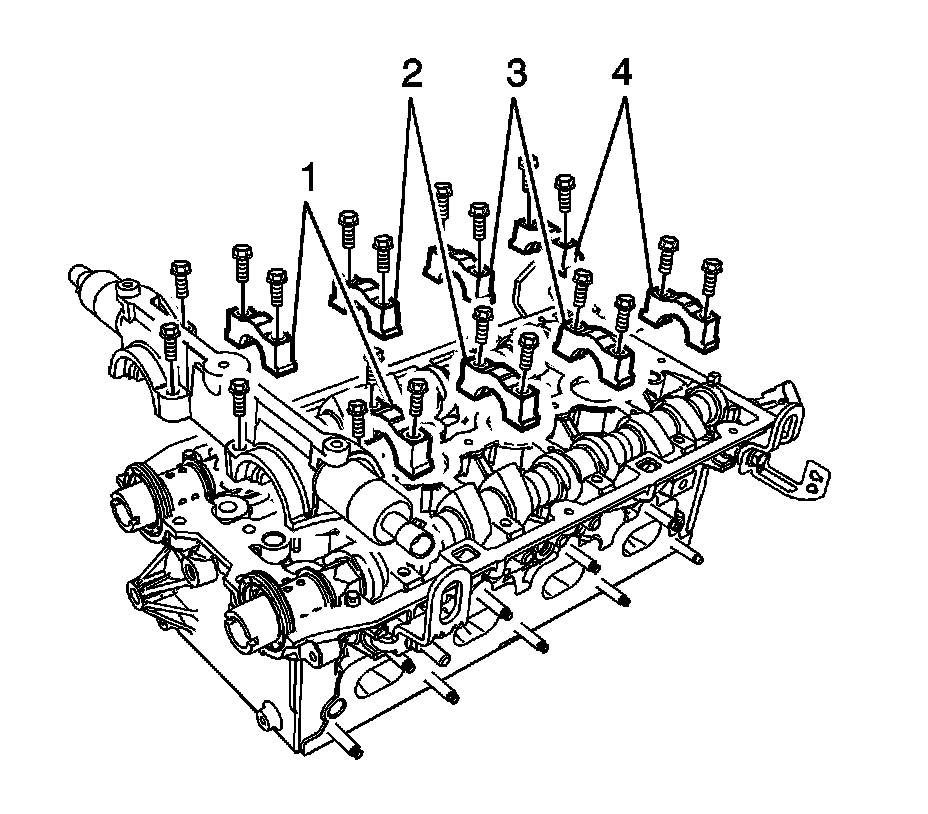

Install the camshaft bearing caps in sequence (2, 3, 1, 4)

Camshaft sprocket bolts 65 Nm (47.9 lb ft)

Exhaust manifold 25 Nm (18 lb ft)
