Driver Seat Components

Passenger Compartment/Roof Component Views

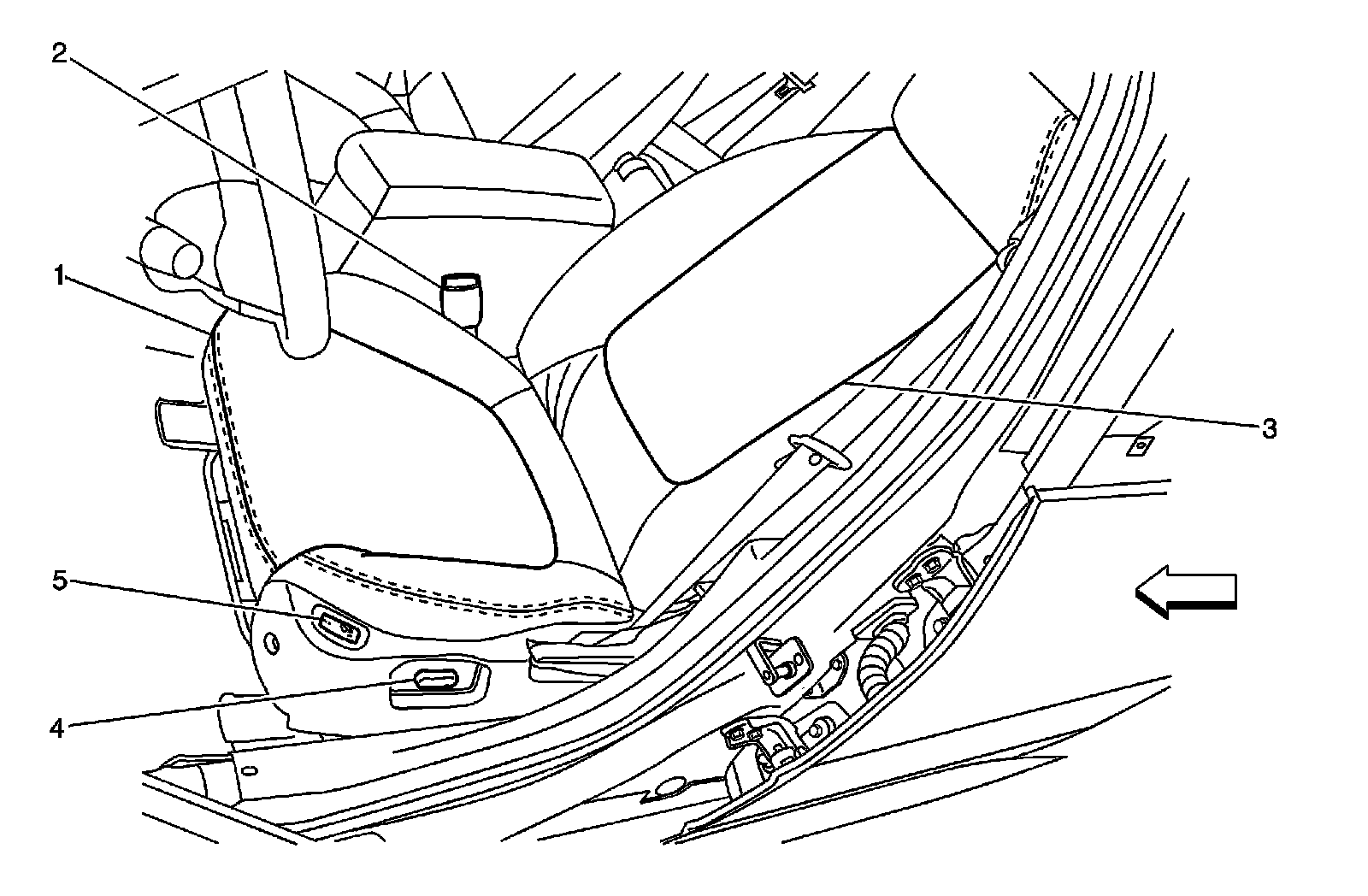

Driver Seat Components




1 - Heated Seat Element - Driver Cushion (KA1)
2 - Seat Belt Buckle - Driver
3 - Heated Seat Element - Driver Back (KA1)
4 - Seat Adjuster Switch - Driver (AG1/ASN)
5 - Heated Seat Switch - Driver (KA1)
