Fuse Block - Rear




Electrical Center Identification Views

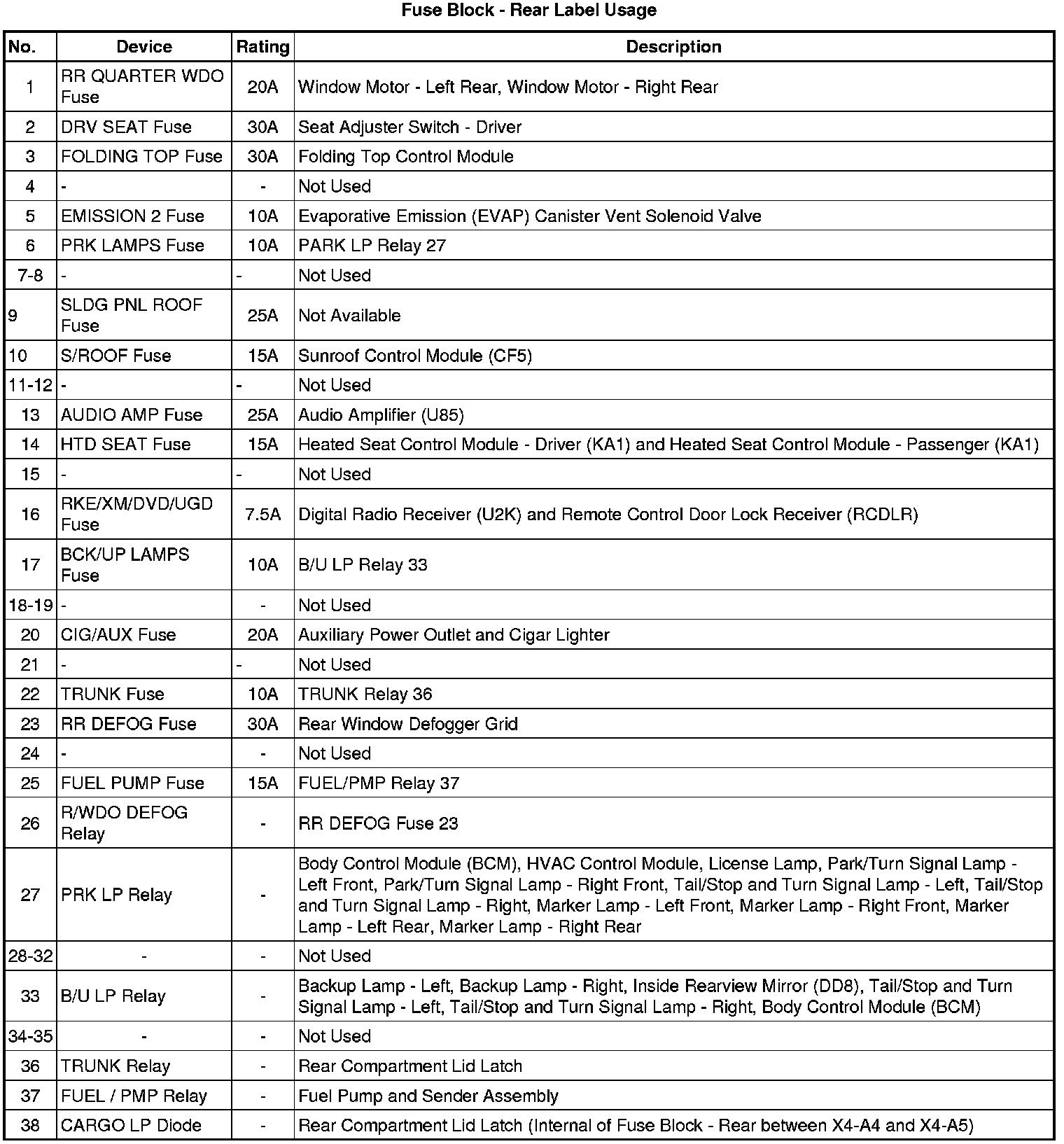

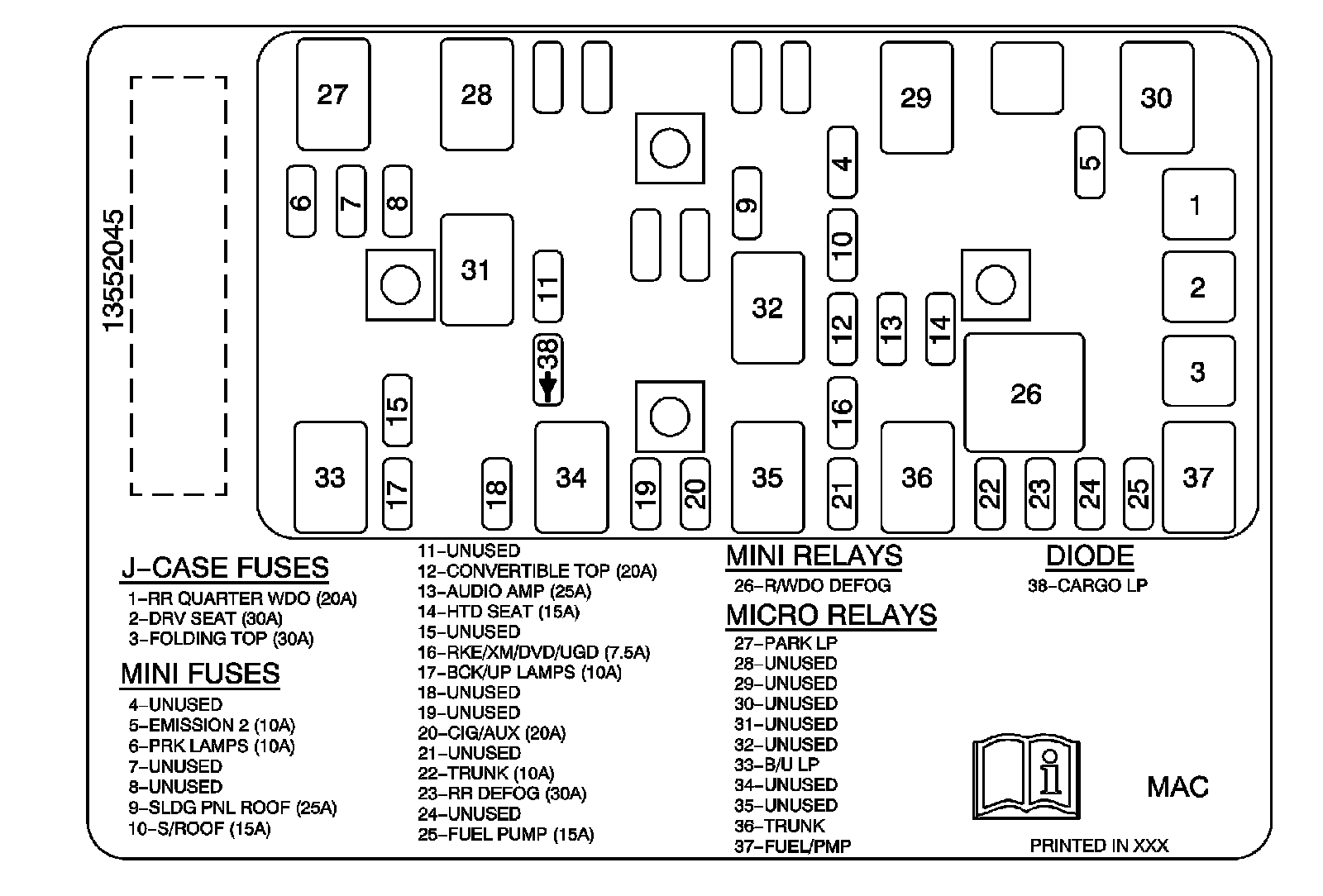

Fuse Block - Rear Label

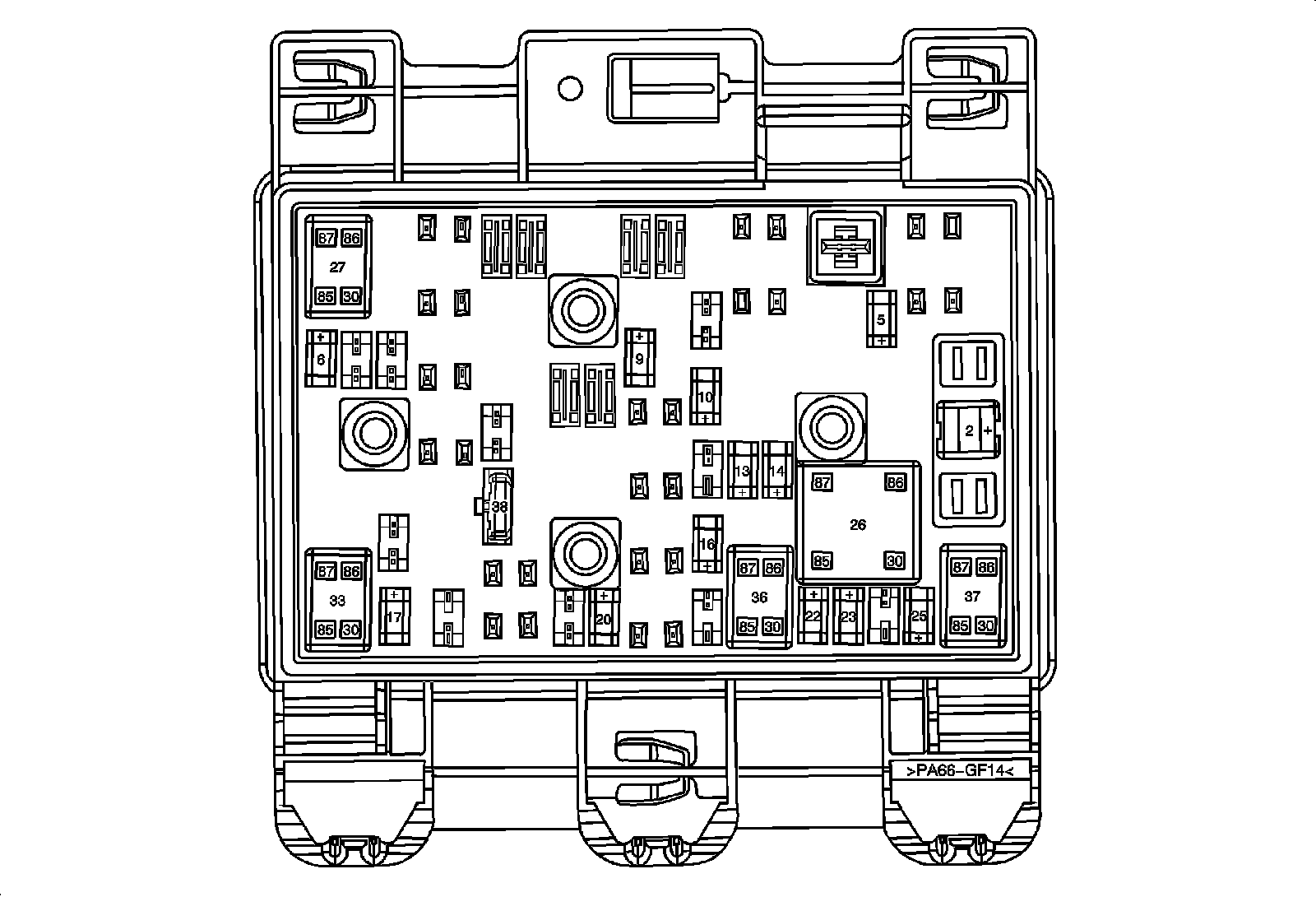

Fuse Block - Rear Top View

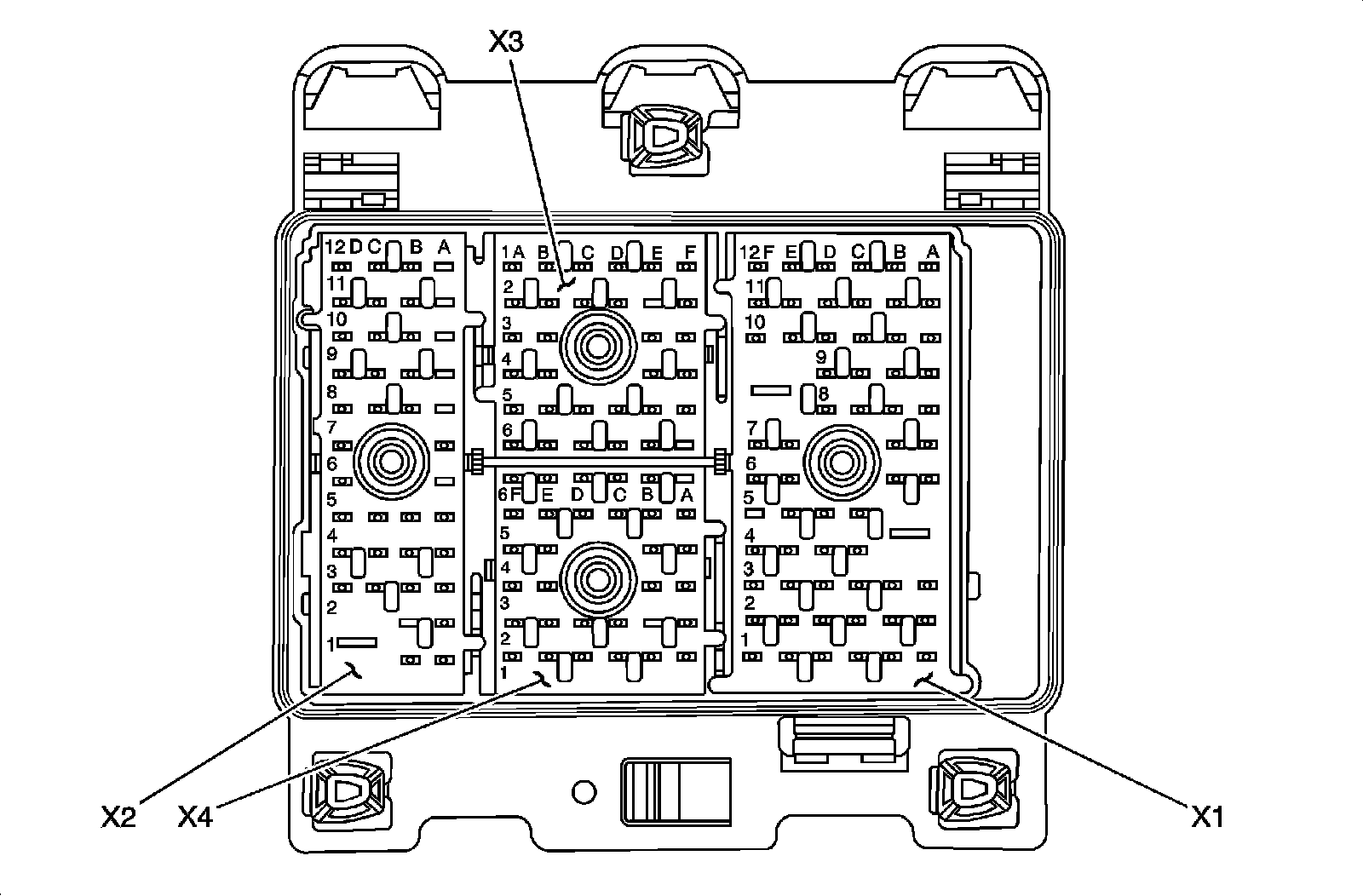

Fuse Block - Rear Bottom View

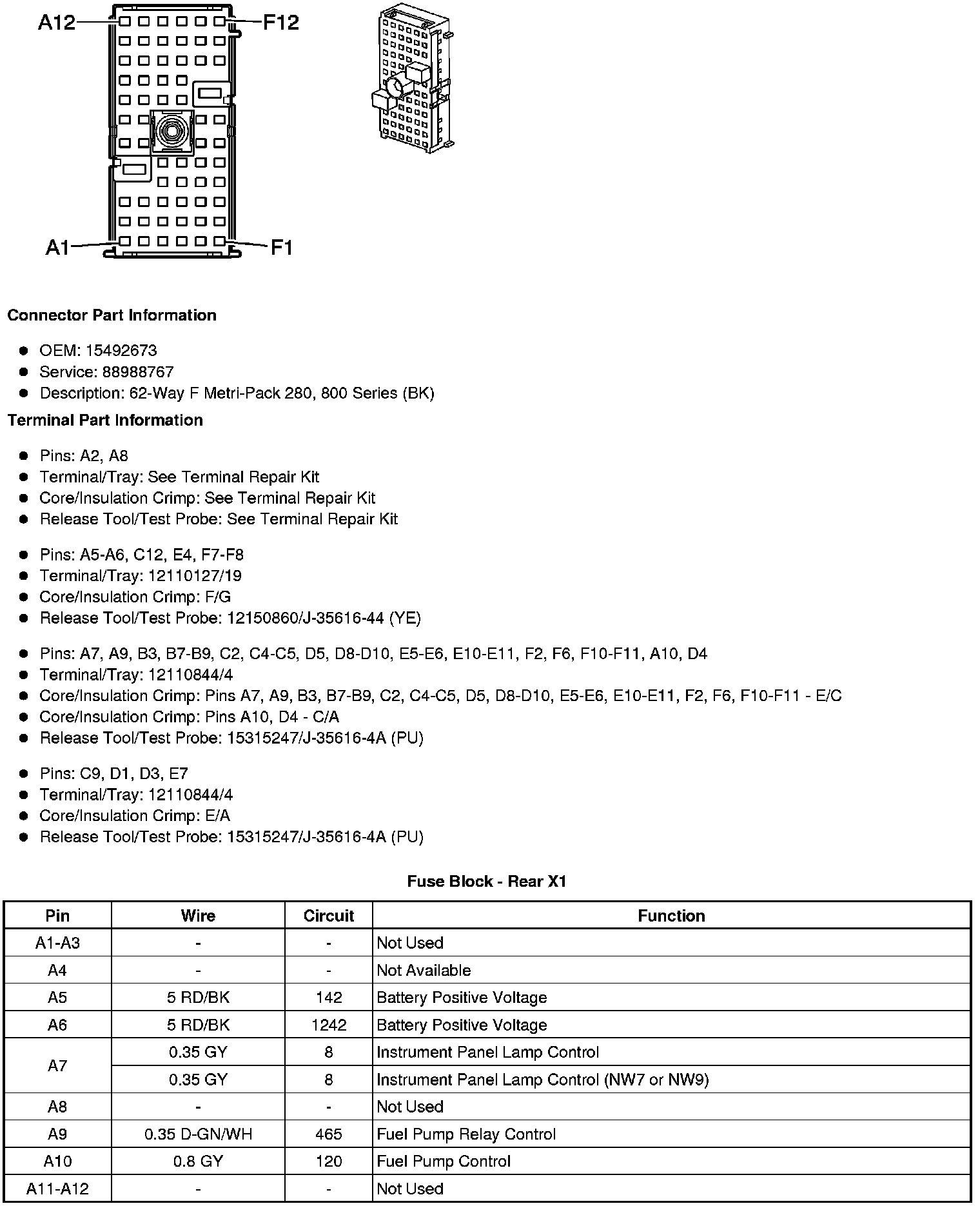

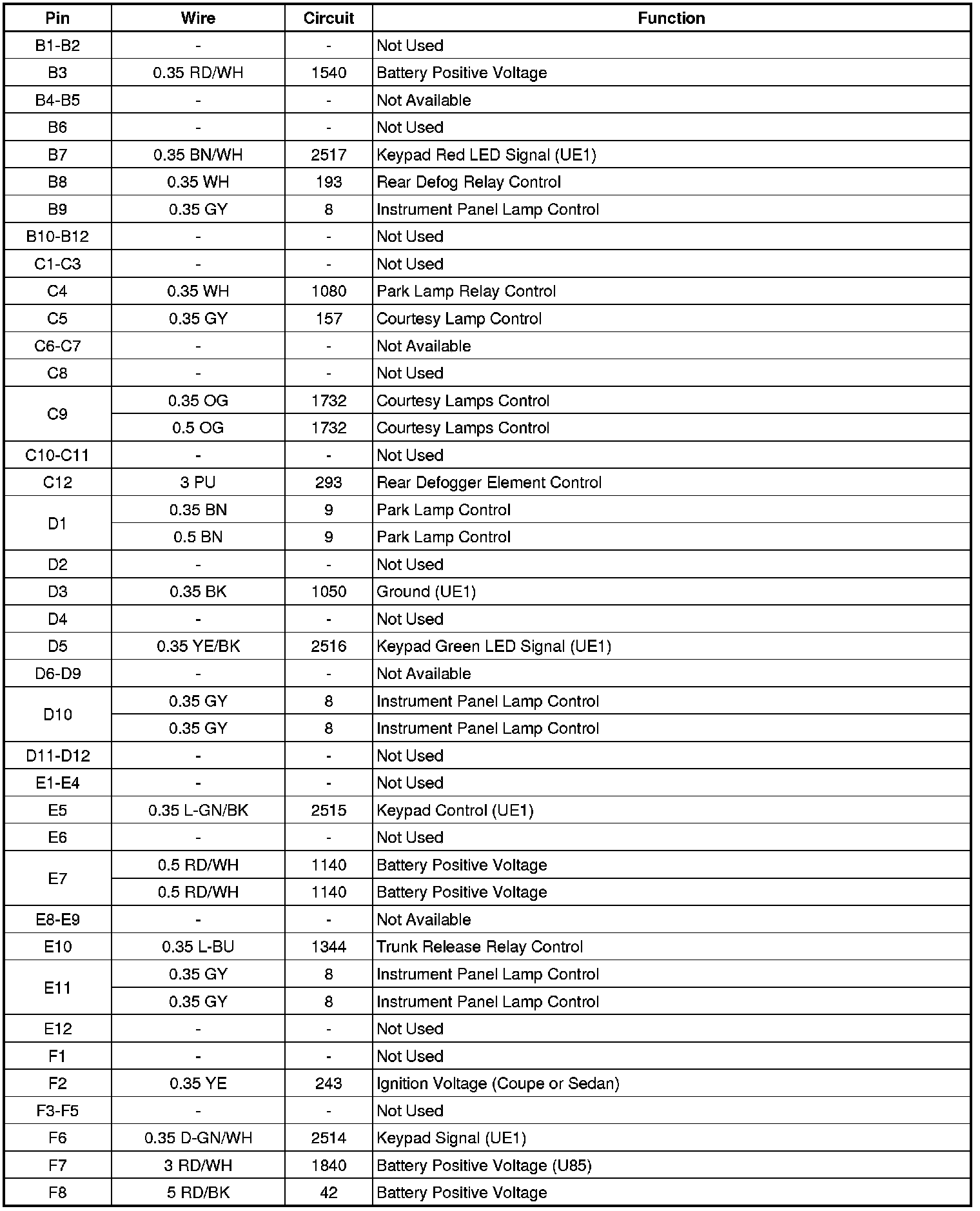

Fuse Block - Rear X1

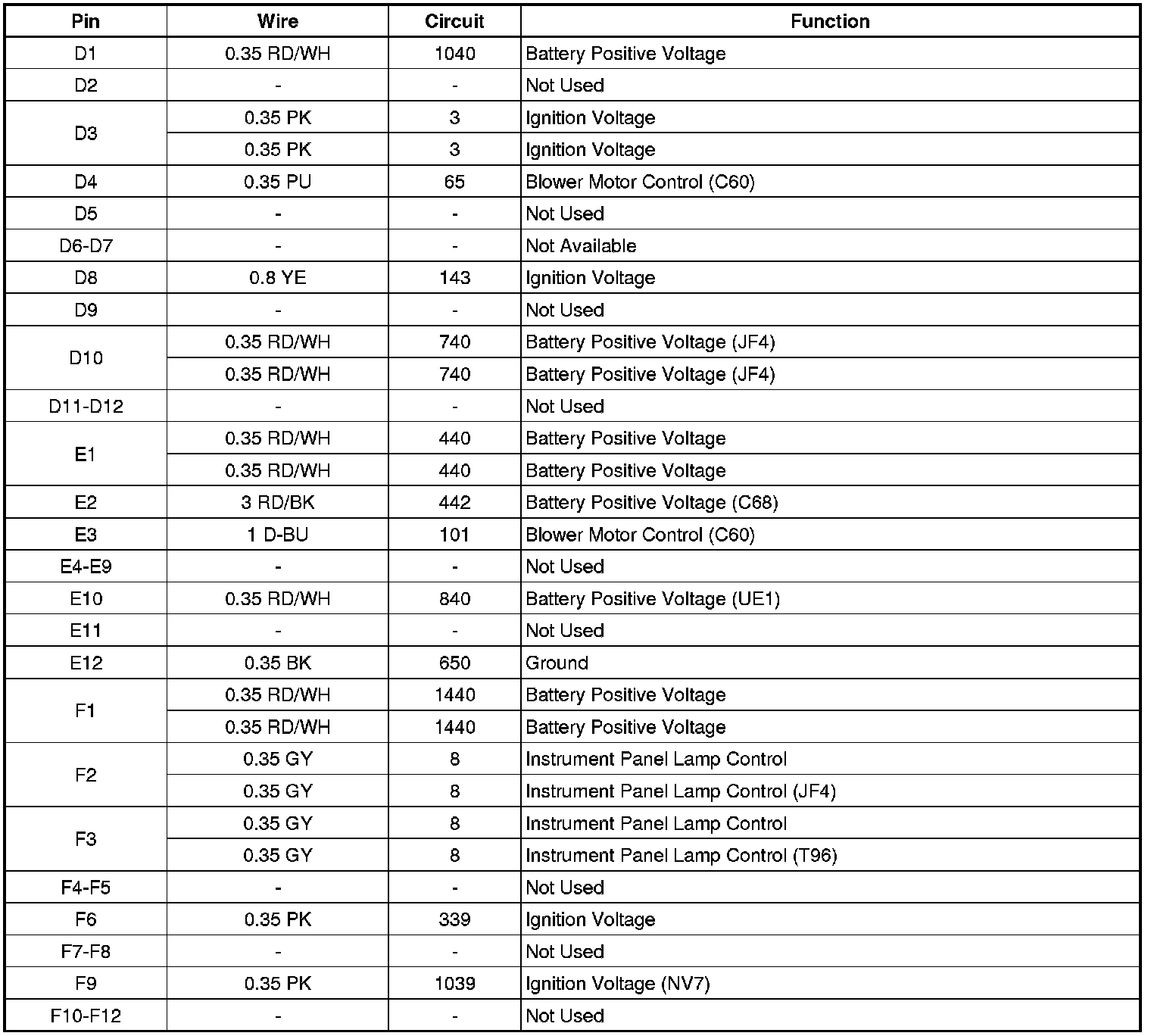

Fuse Block - Rear X2

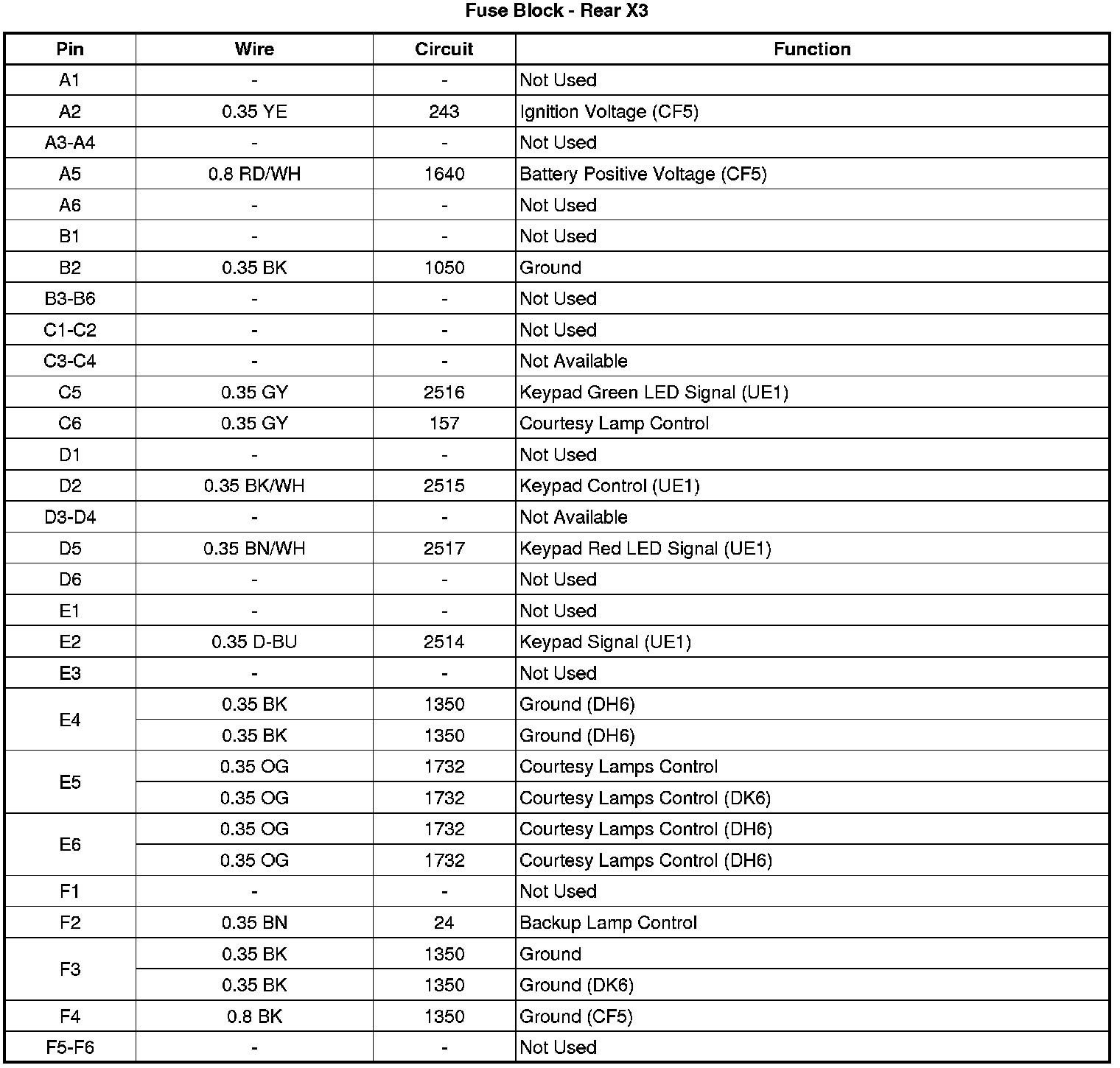

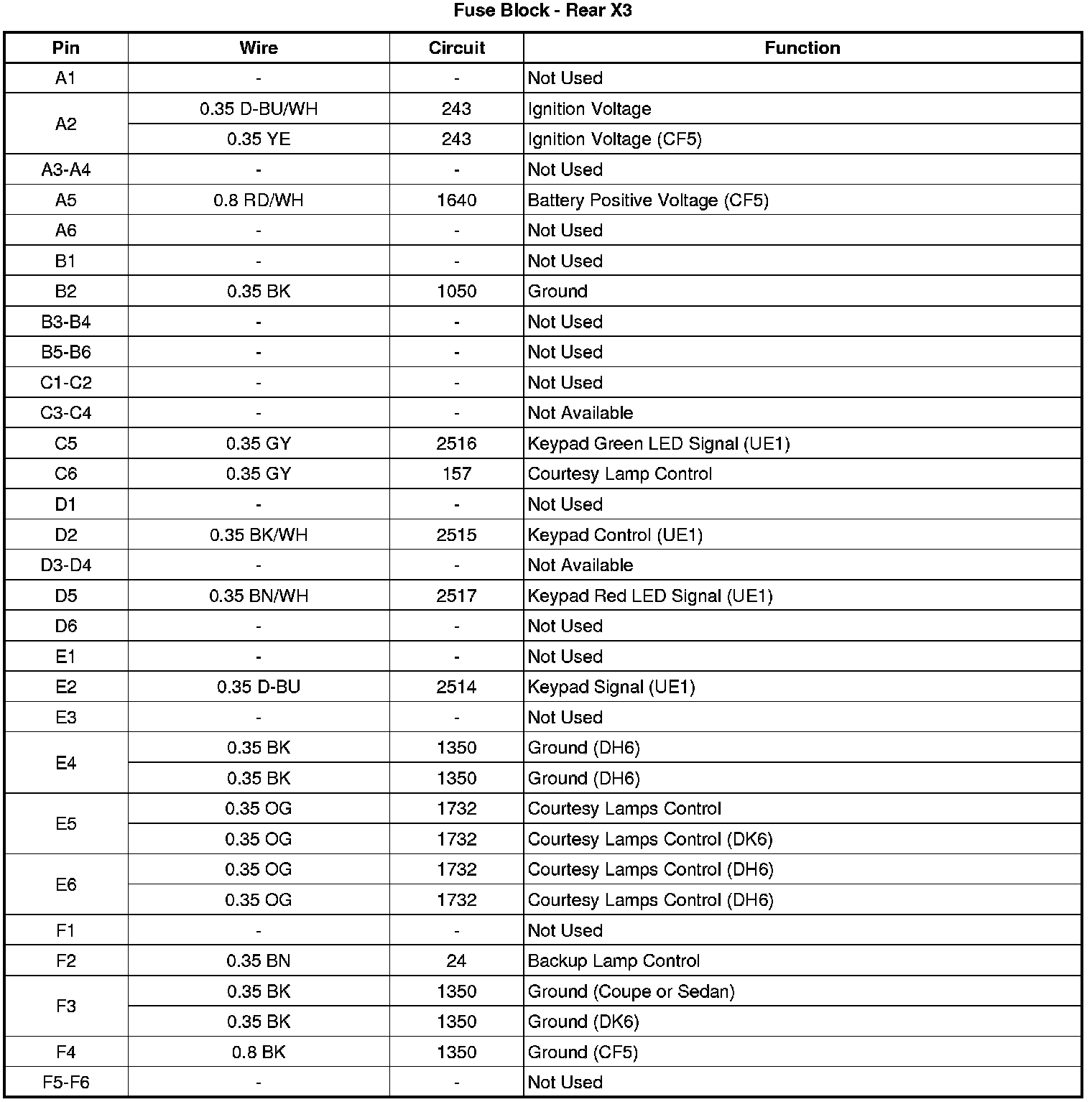

Fuse Block - Rear X3










Fuse Block - Rear X4
