Front Fascia Components

Front of Vehicle/Engine Compartment Component Views

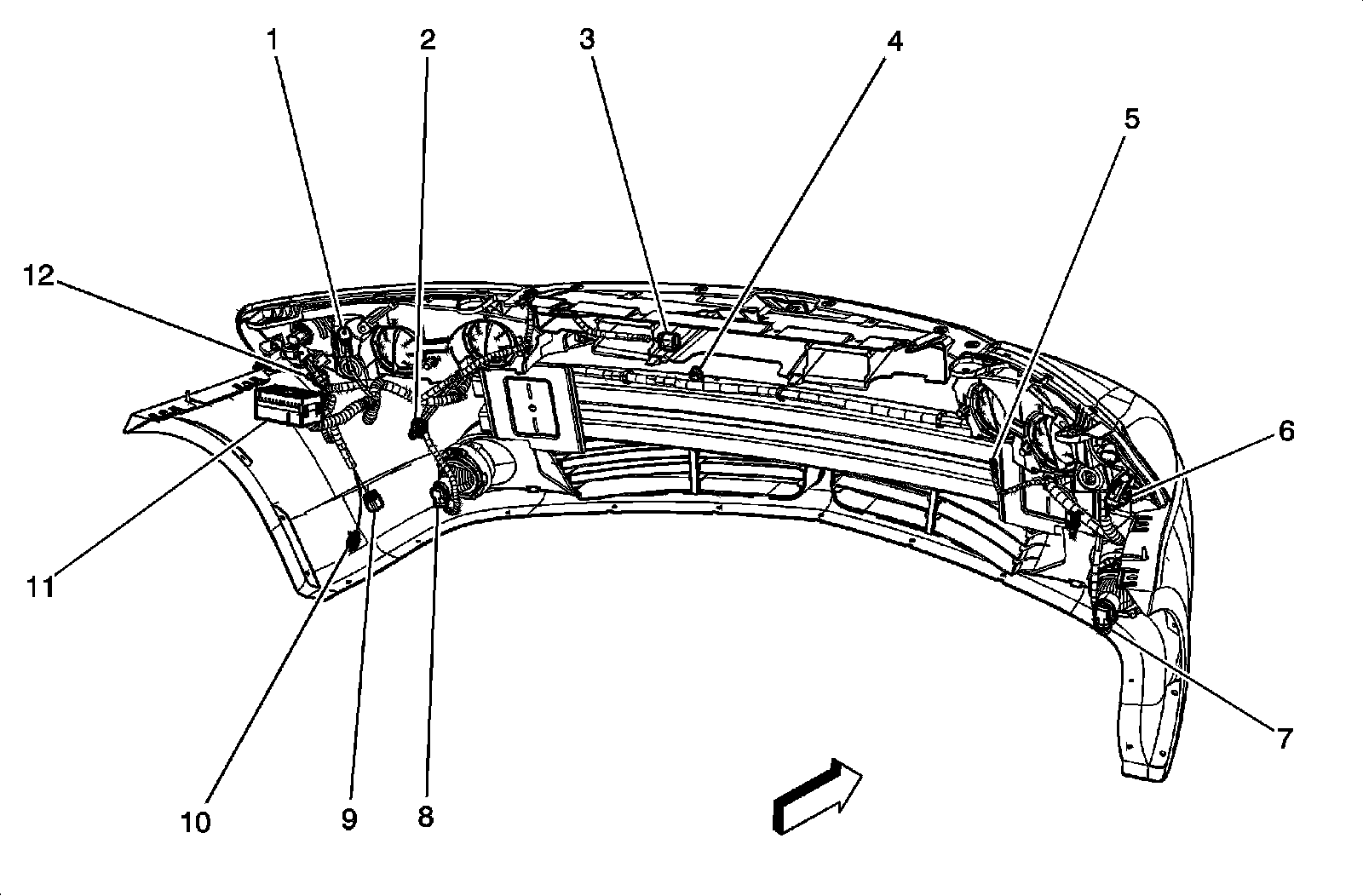

Front Fascia Components




1 - G101
2 - Horn Assembly Connector
3 - Hood Ajar Switch Connector (AP3/AP8)
4 - Ambient Air Temperature Sensor
5 - G102
6 - X110
7 - Fog Lamp - Right Front (T96)
8 - Fog Lamp - Left Front (T96)
9 - Windshield Washer Fluid Pump Connector
10 - Windshield Washer Fluid Level Switch Connector
11 - Fuse Block - Underhood X3 Connector
12 - X109
