Front of the Engine Components

Powertrain Component Views

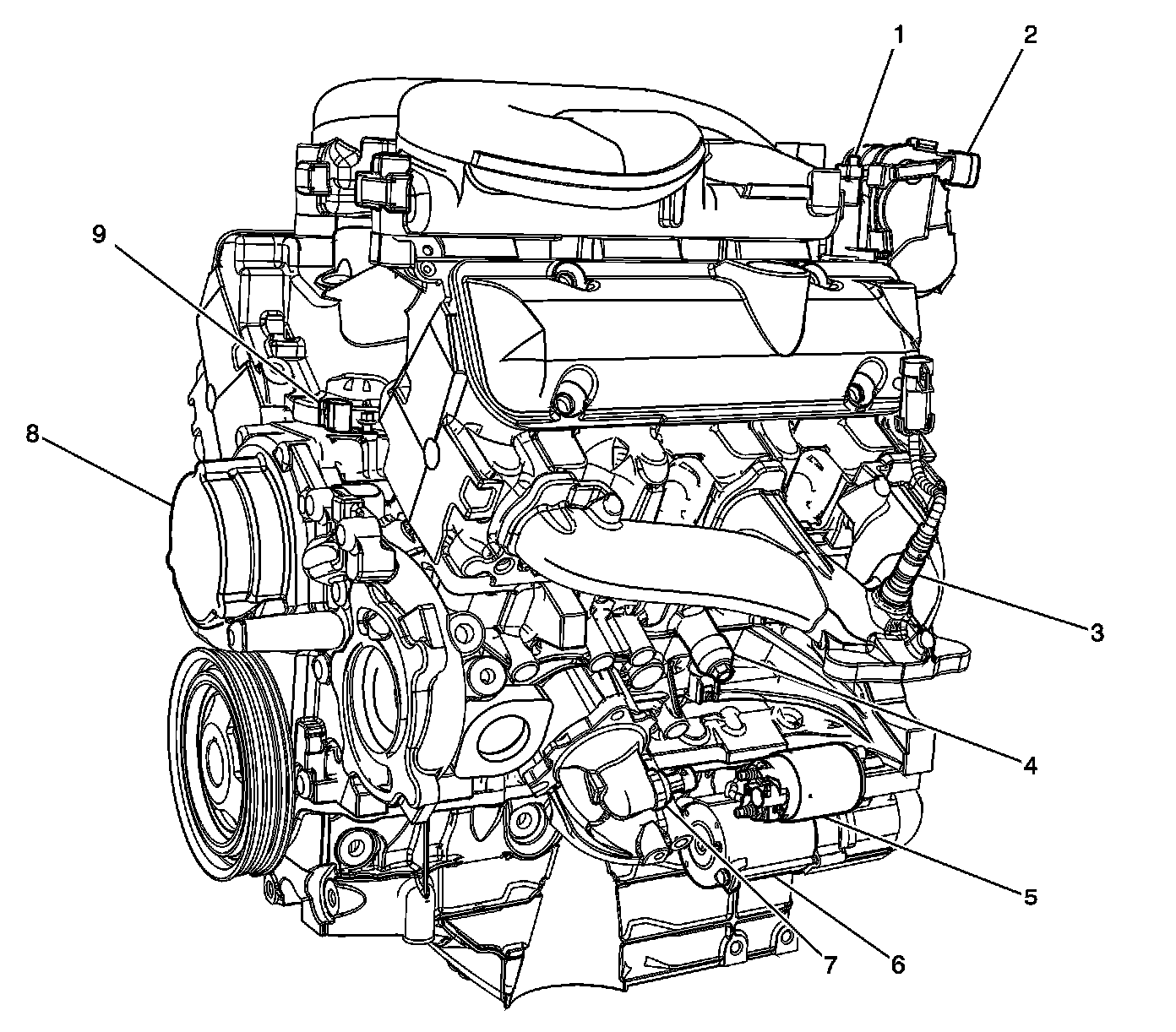

Front of the Engine Components (LZ4 or LZE or LZ9)




1 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
2 - Throttle Body
3 - Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1
4 - Knock Sensor (KS) 1
5 - Starter Solenoid
6 - Starter Motor
7 - Engine Oil Pressure (EOP) Sensor
8 - Camshaft Position (CMP) Actuator Solenoid Valve
9 - Camshaft Position (CMP) Sensor
